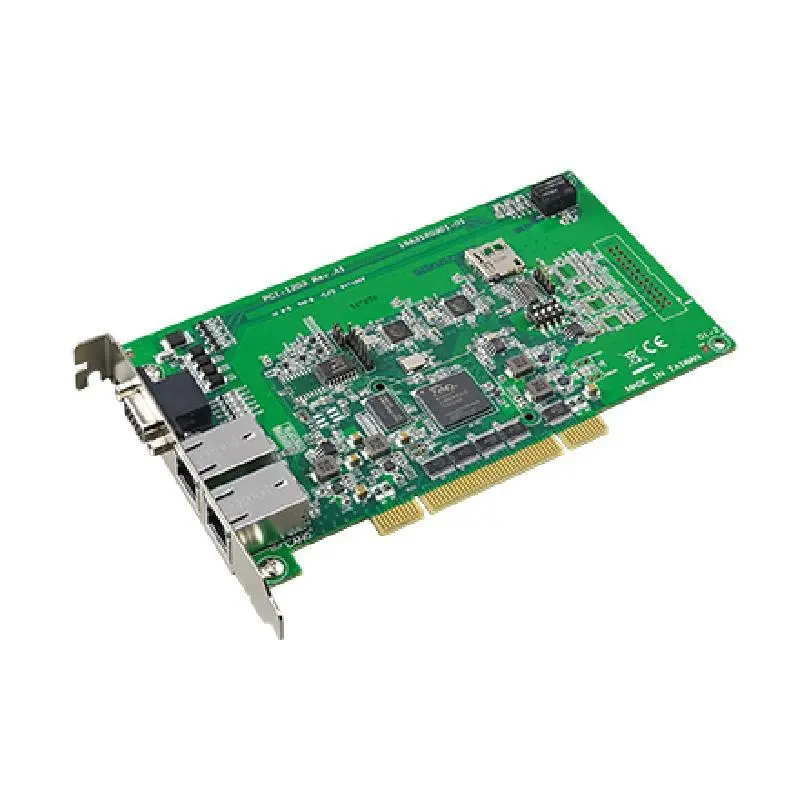

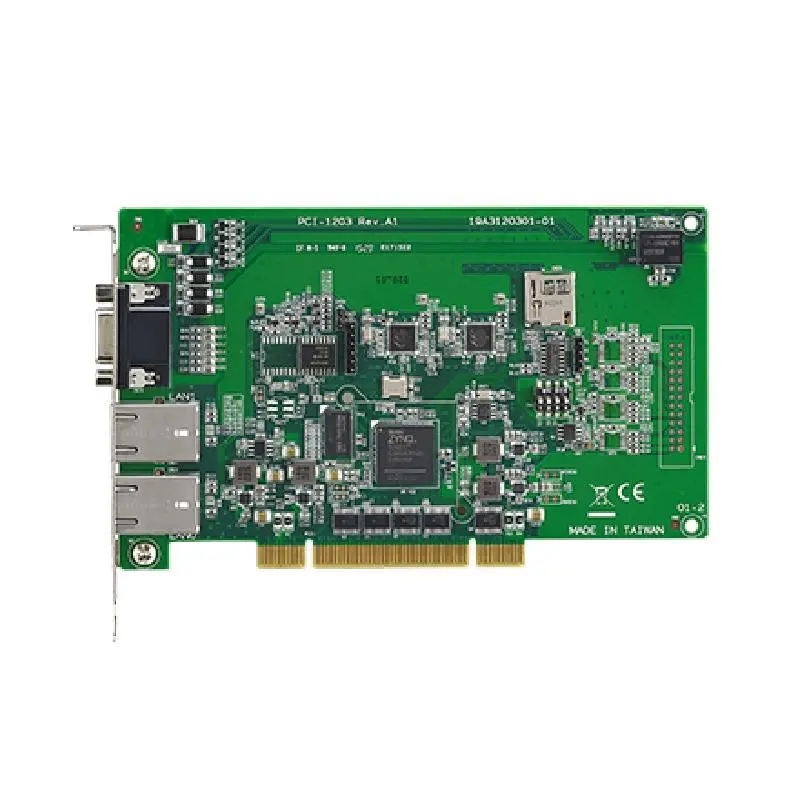

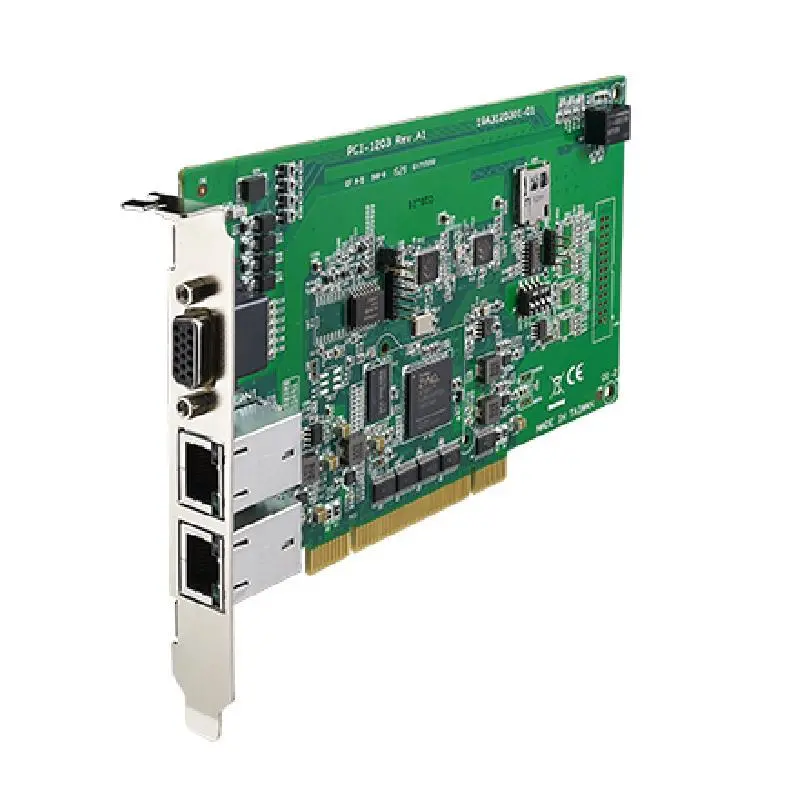

Advantech PCI-1203 2-port EtherCAT Universal PCI MDevice Card

650MHz dual-core ARM processor

2 x EtherCAT ports for high-performance of Motion and I/O applications

Supports common motion SDK for rapid application development

Up to 32 axes support for motion control

Supports a maximum of 6 motion groups and 8 axes per group

Supports on board 8-CH isolated DI and 4-CH isolated DO

Diagnostics for fast error handling can trace command and error message

		PCI-1203-06AE
Communications	Communication Cycle Time	500 us
Communications	Interface	EtherCAT
EtherCAT	Communication IO SubDevice	1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
EtherCAT	Communication Motion SubDevice	06 Servo Drive Max.
EtherCAT Extension	BUS Interface	2 x RJ45
Isolated Digital Input	Isolation Protection	1,000 VDC
Isolated Digital Output	Output Type	Sink
Mechanical	Dimensions (L x H)	175 x 100 mm
Pulse Type Motion Control	Interpolation	2 to 8-axis linear, 3-axis circular, X-Y plane with Z thread helical interpolation
Pulse Type Motion Control	Number of Axes	6
