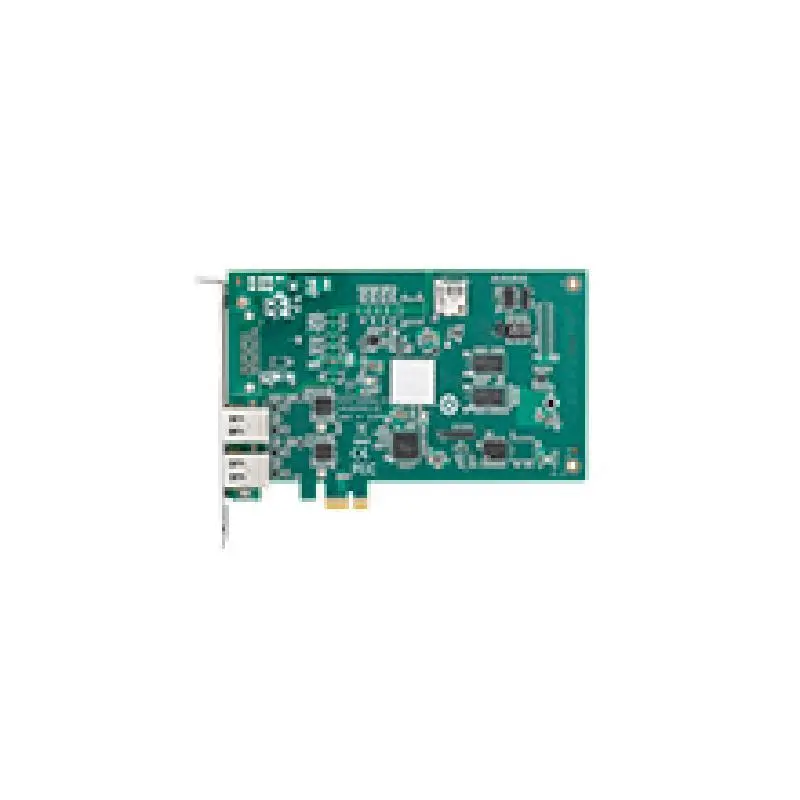

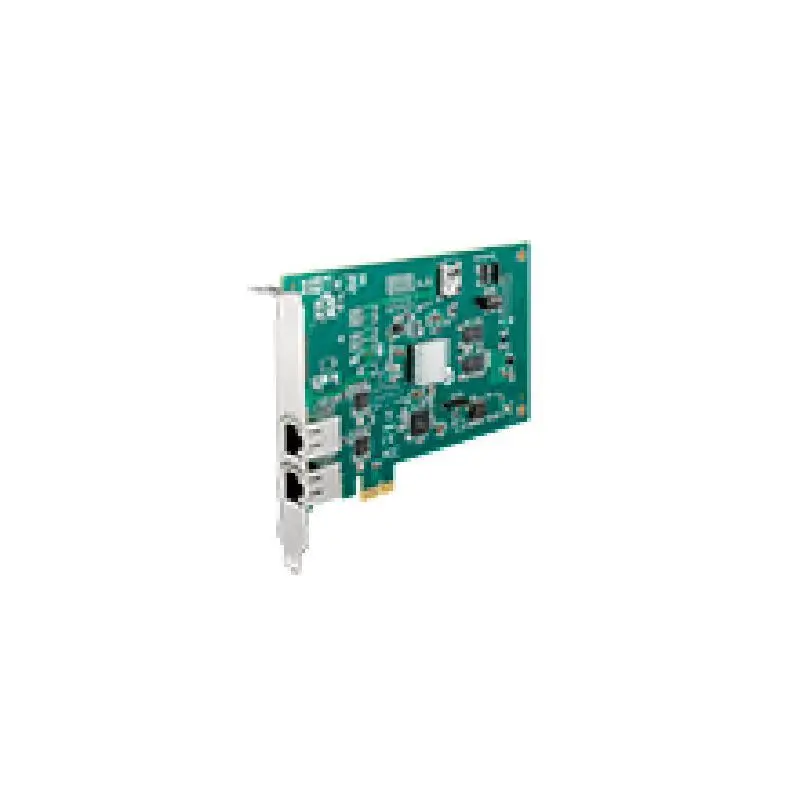

Advantech PCIE-1203L Basic 64-Axis EtherCAT PCIE Client Card

    667MHz dual-core ARM processor

    2 x EtherCAT ports for high-performance of Motion and I/O applications

    Supports common motion SDK for rapid application development

    Up to 64 axes support for motion control

    Supports point to point move

    Supports 2 axis Linear interpolation

    Supports programmable acceleration/deceleration rate

    Programmable interrupt

    RDY dedicated input channels & SVON/ERC dedicated output channels are switchable for general input and output purposes

    Diagnostics for fast error handling can trace command and error message

PCIE-1203L-64AE
Communications Communication Cycle Time 1000 us
Communications Interface EtherCAT
EtherCAT Communication IO SubDevice 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
EtherCAT Communication Motion SubDevice 64 Servo Drive Max.
EtherCAT Extension BUS Interface 2 x RJ45
Isolated Digital Input Isolation Protection 1,000 VDC
Isolated Digital Output Output Type Sink
Mechanical Dimensions (L x H) 175 x 100 mm
Pulse Type Motion Control Interpolation 2-axis linear
Pulse Type Motion Control Number of Axes 64
