| AMAX-4862-B | ||
| Relay Output | Channels | 16 Form A |
| Relay Output | Contact Rating (Resistive) | 2 A @ 30 VDC, 2 A @ 250 VAC |
| Relay Output | Max. Switching Power | 500 VAC, 60 W |
| Relay Output | Max. Switching Voltage | 270 VAC , 125 VDC |
| Relay Output | Resistance | Max. 30 mΩ |
| Isolated Digital Input | Channels | 32 |
| Isolated Digital Input | Input Voltage | Logic level 0: 3 V max. Logic level 1: 10~30 VDC |
| Isolated Digital Input | Isolation Protection | 2,500 VDC |
| General | Rated Voltage | 10~30 VDC |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| EtherCAT | Cable Type | Ethernet/ EtherCAT cable (min. Cat. 5), shielded |
| Hardware | Dual Power Input | Supported |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | Power, RUN, ERROR, I/O Indicator |
| Hardware | Power Consumption | 3 W @ 24 VDC |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) |
| Mechanical | Enclosure | PC + ABS |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 355 g |
| Mechanical | Dimension (W x H x D) | 168 x 120 x 40 mm |

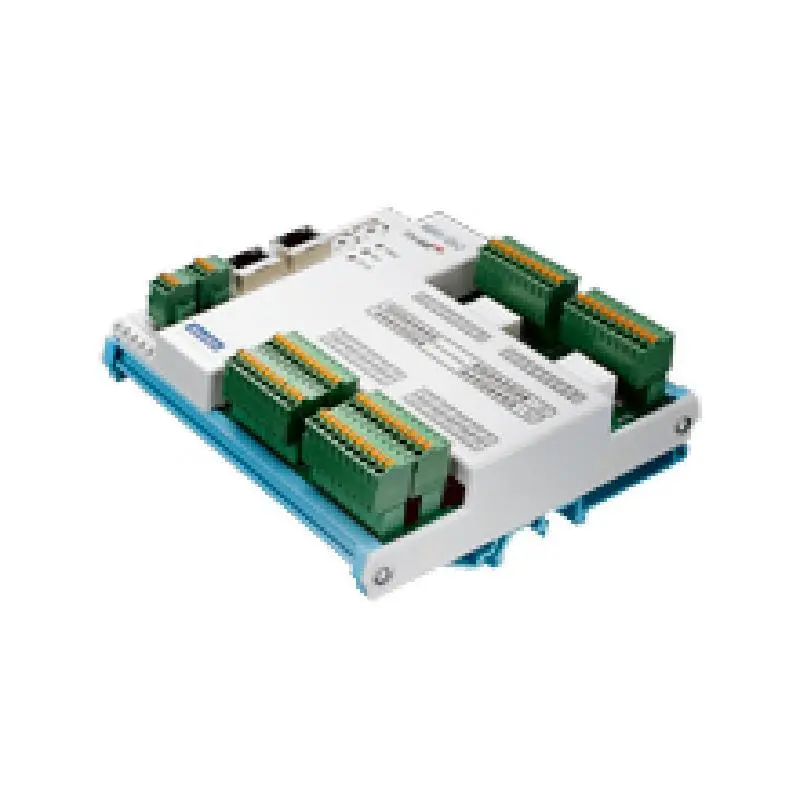

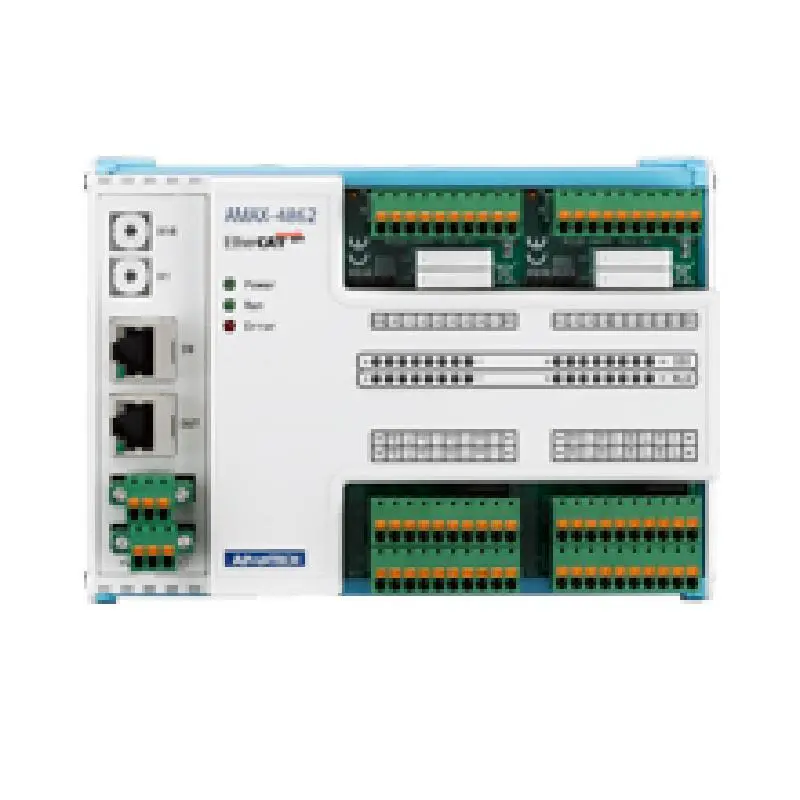

Advantech AMAX-4862 16-ch IDI & 16-ch Relay EtherCAT Remote I/O module
