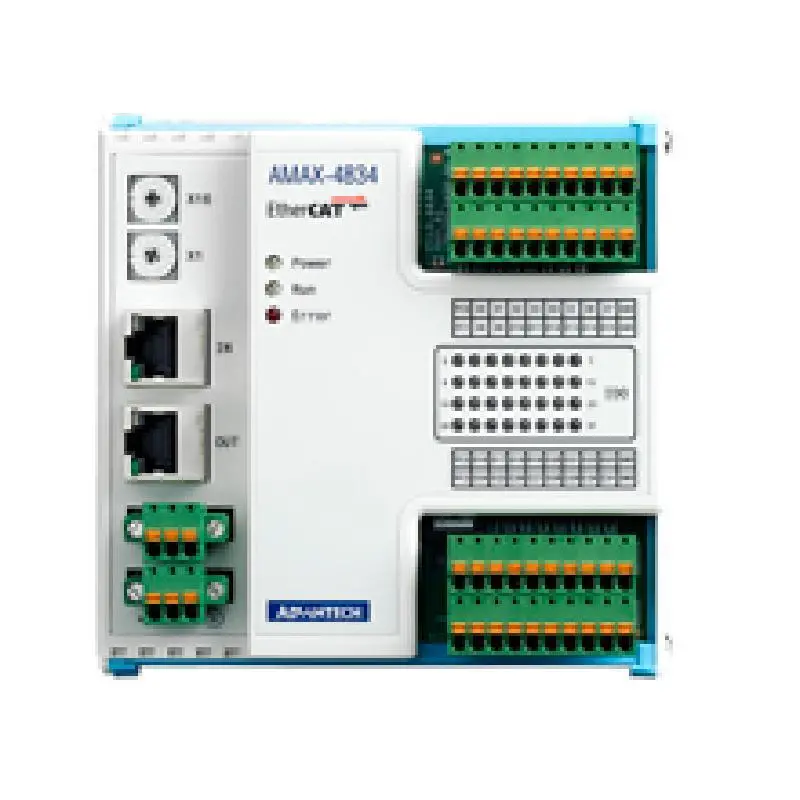

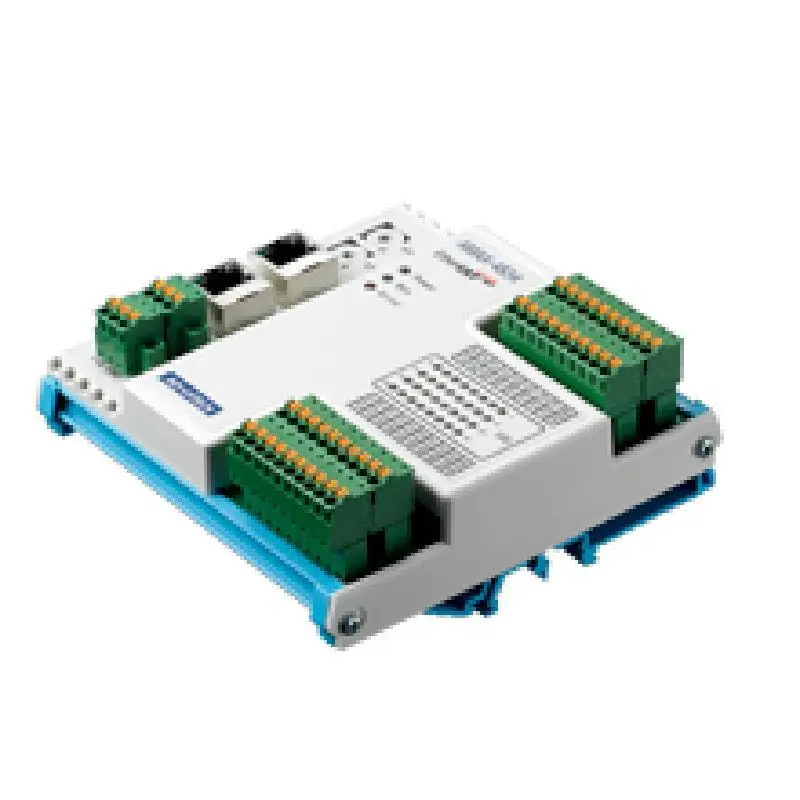

Advantech AMAX-4834 32-ch Isolated Digital Output EtherCAT Remote I/O Module

Suitable for EtherCAT networks

32-ch digital output with 2,500 VDC isolation

Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)

Quick removable European type connector

LED indicators for I/O status

Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode

Two Rotary switches for up to 256 slave IDs

		AMAX-4834-B
Isolated Digital Output	Channels	32
Isolated Digital Output	Output Voltage	5~40 VDC
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Sink Current	350 mA/channel (sink) @ 25 °C ; 250 mA/channel (sink) @ 60 °C
Isolated Digital Output	Isolation Protection	2,500 VDC
General	Rated Voltage	10~30 VDC
General	Protocol	EtherCAT
EtherCAT	Cycle Time	100 μs
EtherCAT	Cable Type	Ethernet/ EtherCAT cable (min. Cat. 5), shielded
Hardware	Dual Power Input	Supported
Hardware	Certification	CE, FCC class A
Hardware	LED Indicators	Power, RUN, ERROR, I/O Indicator
Hardware	Power Consumption	3 W @ 24 VDC
Environment	Operating Temperature	-20~60 °C (-4~140 °F)
Environment	Storage Temperature	-40~70 °C (-40~158 °F)
Environment	Storage Humidity	5~95% RH (non-condensing)
Mechanical	Enclosure	PC + ABS
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	247 g
Mechanical	Dimension (W x H x D)	120 x 120 x 40 mm
