| AMAX-4830-B | AMAX-4830SO-B | ||
| Isolated Digital Input | Channels | 16 | 16 |
| Isolated Digital Input | Input Voltage | Logic level 0: 3 V max. Logic level 1: 10~30 VDC | Logic level 0: 3 V max. Logic level 1: 10~30 VDC |
| Isolated Digital Input | Isolation Protection | 2,500 VDC | 2,500 VDC |
| Isolated Digital Output | Channels | 16 | 16 |
| Isolated Digital Output | Output Voltage | 5~40 VDC | 5~40 VDC |
| Isolated Digital Output | Output Type | Sink | Source |
| Isolated Digital Output | Sink Current | 350 mA/channel (sink) @ 25 °C ; 250 mA/channel (sink) @ 60 °C | 250 mA/channel (Source) @ 25 °C; 200 mA/channel (Source) @ 60 °C |
| Isolated Digital Output | Isolation Protection | 2,500 VDC | 2,500 VDC |
| General | Rated Voltage | 10~30 VDC | 10~30 VDC |
| General | Protocol | EtherCAT | EtherCAT |
| EtherCAT | Cycle Time | 100 μs | 100 μs |
| EtherCAT | Cable Type | Ethernet/ EtherCAT cable (min. Cat. 5), shielded | Ethernet/ EtherCAT cable (min. Cat. 5), shielded |
| Hardware | Dual Power Input | Supported | Supported |
| Hardware | Certification | CE, FCC class A | CE, FCC class A |
| Hardware | LED Indicators | Power, RUN, ERROR, I/O Indicator | Power, RUN, ERROR, I/O Indicator |
| Hardware | Power Consumption | 3 W @ 24 VDC | 3 W @ 24 VDC |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -40~70 °C (-40~158 °F) | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) | 5~95% RH (non-condensing) |
| Mechanical | Enclosure | PC + ABS | PC + ABS |
| Mechanical | Mounting | DIN-rail | DIN-rail |
| Mechanical | Weight (Net) | 249 g | 249 g |
| Mechanical | Dimension (W x H x D) | 120 x 120 x 40 mm | 120 x 120 x 40 mm |

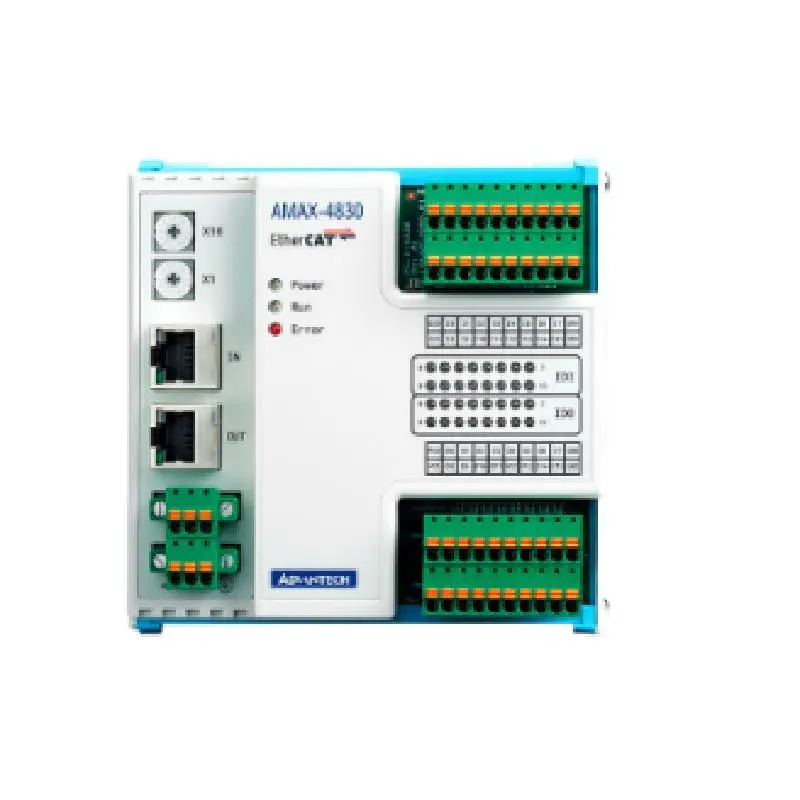

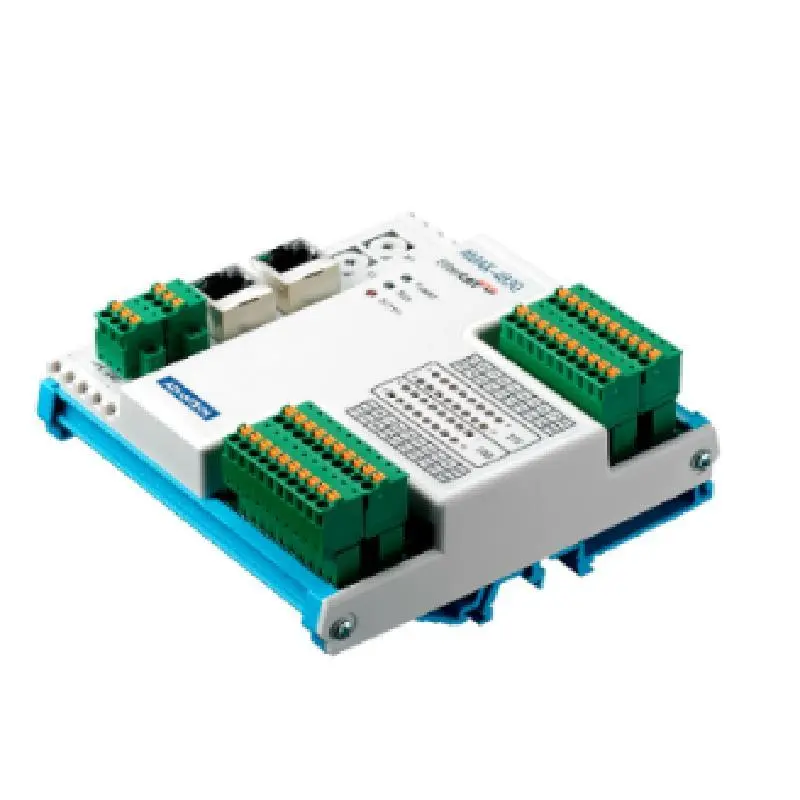

Advantech AMAX-4830 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module
