| AMAX-4817-B2 | ||
| Analog Input | Channels | 8 |
| Analog Input | Input Range | 0~10 V, ± 10 V, 0~20 mA, ± 20 mA |
| Analog Input | lnput Type | V, mA |
| Analog Input | Resolution(Bits) | 16-bit with ±0.1% FSR accuracy @25°C |
| Analog Input | Sampling Rates(S/s) | 10k S/s (per channel) |
| General | Rated Voltage | 10~30 VDC |
| General | Connectors | 2 x RJ45, 2 x 10-pin terminal block, 2 x 3-pin screw terminal block |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| EtherCAT | Cable Type | Ethernet/ EtherCAT cable (min. Cat. 5), shielded |
| Hardware | Dual Power Input | Supported |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | Power, RUN, ERROR, I/O Indicator |
| Hardware | Power Consumption | 5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) |
| Mechanical | Enclosure | PC + ABS |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 213 g |
| Mechanical | Dimension (W x H x D) | 120 x 120 x 40 mm |

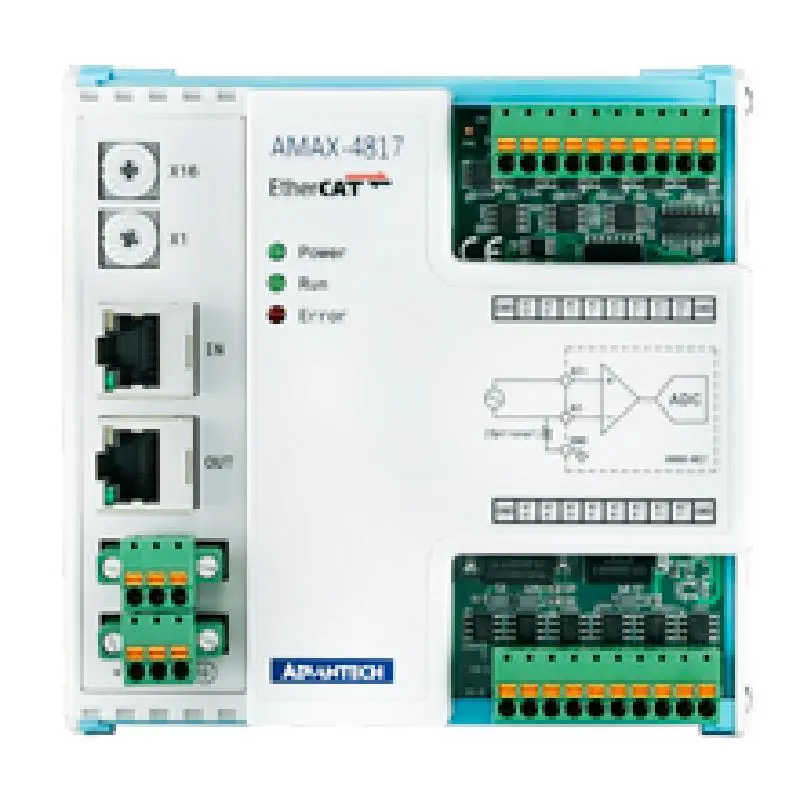

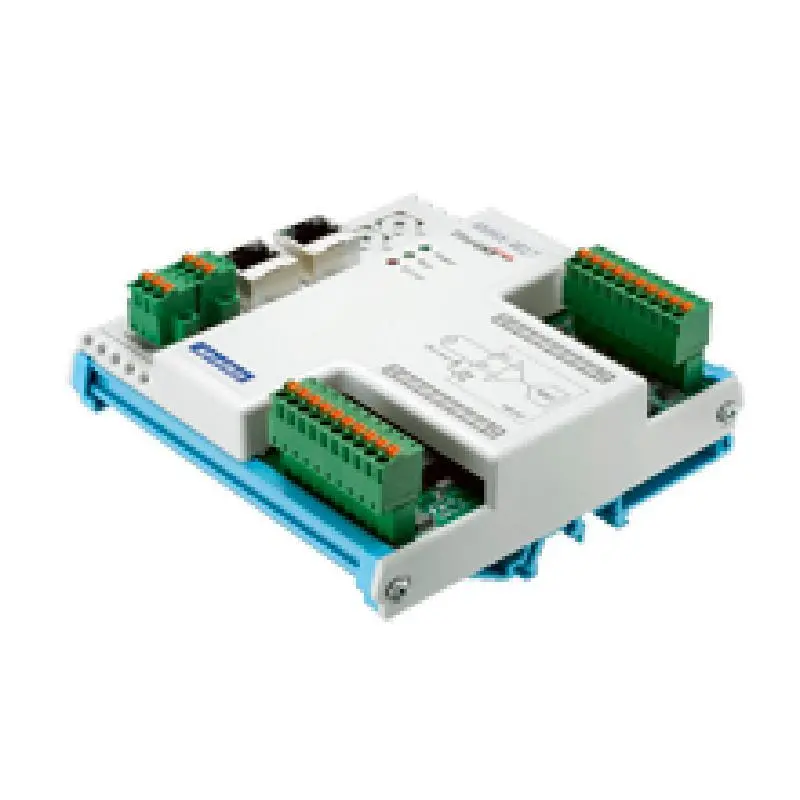

Advantech AMAX-4817 8-ch, 16-bit Isolated Analog Input EtherCAT Remote I/O Module
