| AMAX-4820-B | ||
| Analog Output | Channels | 4 |
| Analog Output | Output Ranges | 0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA |
| Analog Output | Output Type | V, mA |
| Analog Output | Resolution | 16-bit |
| Analog Output | Load | > 1 kΩ (voltage output); < 625 Ω (current output) |
| General | Rated Voltage | 10~30 VDC |
| General | Protocol | EtherCAT |
| EtherCAT | Cycle Time | 100 μs |
| EtherCAT | Cable Type | Ethernet/ EtherCAT cable (min. Cat. 5), shielded |
| Hardware | Dual Power Input | Supported |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | Power, RUN, ERROR, I/O Indicator |
| Hardware | Power Consumption | 5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) |
| Mechanical | Enclosure | PC + ABS |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 209 g |
| Mechanical | Dimension (W x H x D) | 120 x 120 x 40 mm |

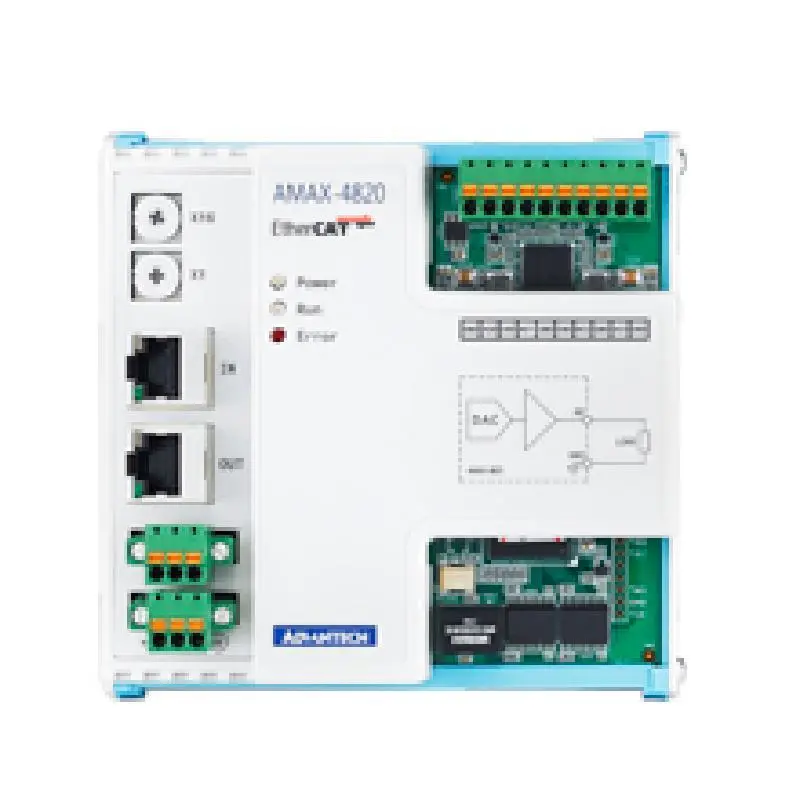

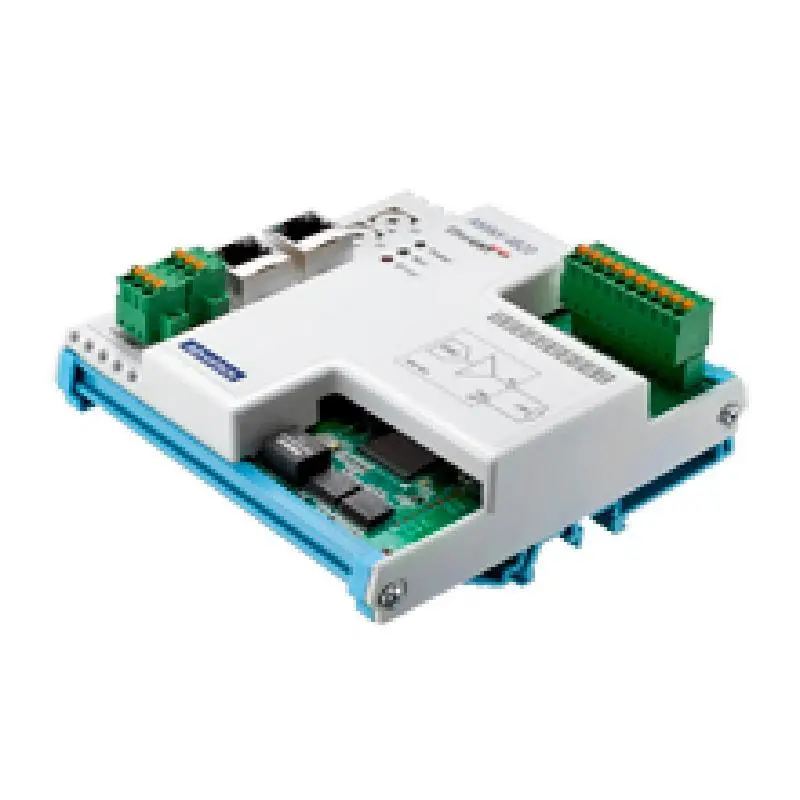

Advantech AMAX-4820 4-ch, 16-bit Isolated Analog Output EtherCAT Remote I/O Module
