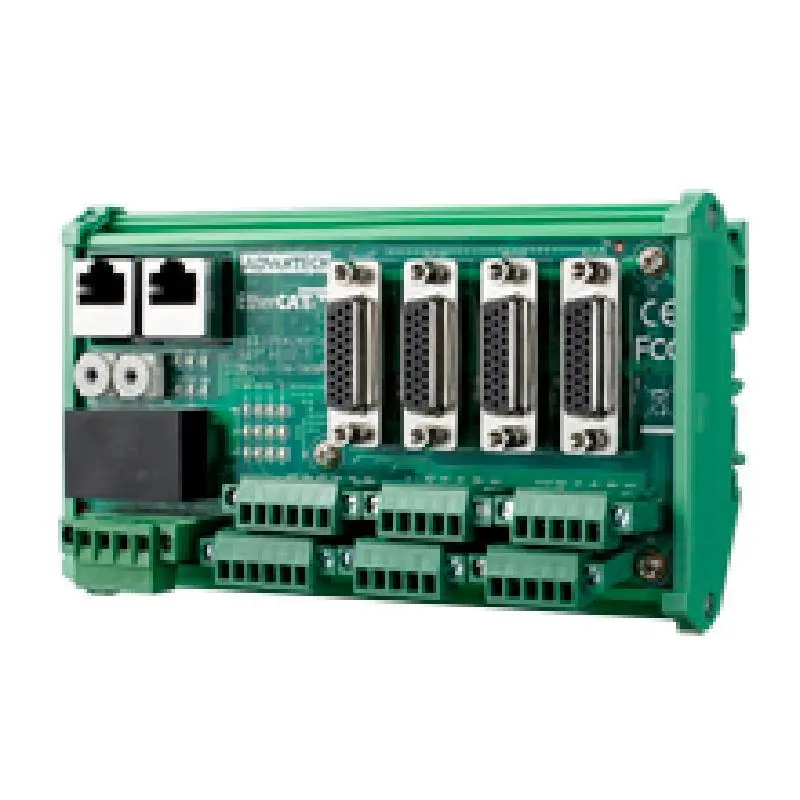

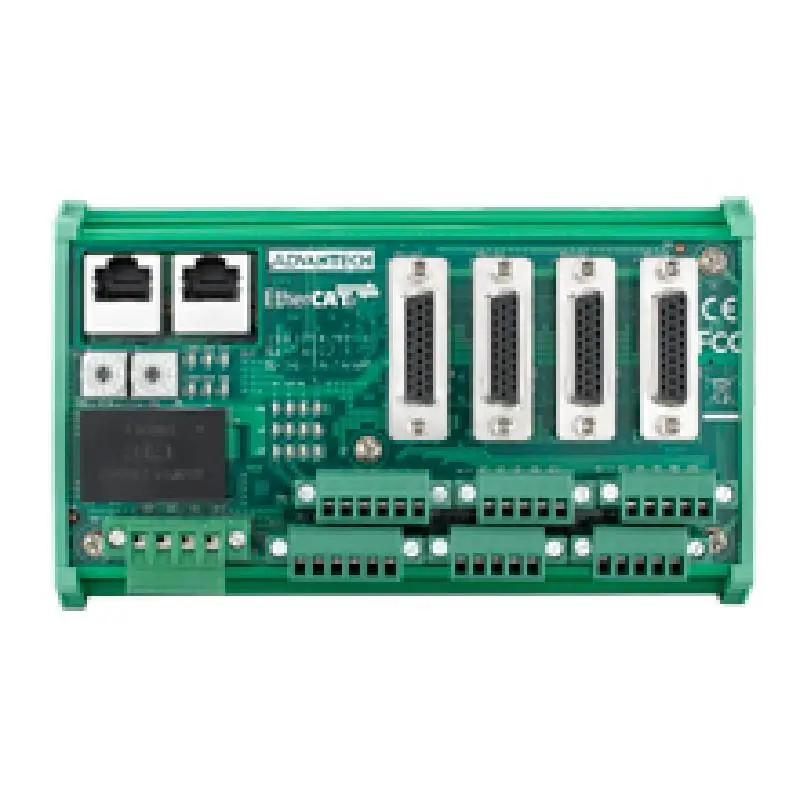

Advantech AMAX-3245 4-axis EtherCAT Motion SubDevice

Max. 5 MHz, 4-axis pulse output

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

BoardID is switchable

Easily visible LED indicators on board to do diagnosis

Direct wire to servo drive to save terminal board space while installation

Horizontal installation for for servo or stepping motor driver

Suitable for DIN-rail mounting

Programmable interrupt

Memory buffer (10K points) for trajectory planning which is designed in DSP

4-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points

Position latch

Supports gantry mode by semi-closed loop pulse train control

LTC-dedicated input channels & SVON/CMP/RST/ERC-dedicated Output channels are switchable for general input and output purposes

		AMAX-3245-AE
Communications	Communication Cycle Time	500 us
Communications	Data Transfer Medium	Ethernet/EtherCAT cable (min. CAT11), shielded
Communications	Interface	EtherCAT
Counter/Encoder Input	Channels	4
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Max. Input Frequency	10 MHz
Digital Input and Digital Output	No. of Channels	4-ch DI and 4-ch DO
Encoder Type and Interface	Input Type	Quadrature (x1, x2, x4 A/B phase) or CW/CCW or P/D
Encoder Type and Interface	Max. Input Frequency	10 MHz under x4 A/B phase mode
Coupler	BUS Interface	2 x RJ45 (1 x Input, 1 x Output)
General	Rated Voltage	24 VDC (±10%)
Isolated Digital Output	Output Type	Sink
Pulse Type Motion Control	Max. Output Speed	5 Mpps
Pulse Type Motion Control	Motor Driver Support	Pulse-type servo/stepping
Pulse Type Motion Control	Pulse Output Type	Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)
Pulse Type Motion Control	Velocity Profiles	T-Curve, S-Curve
