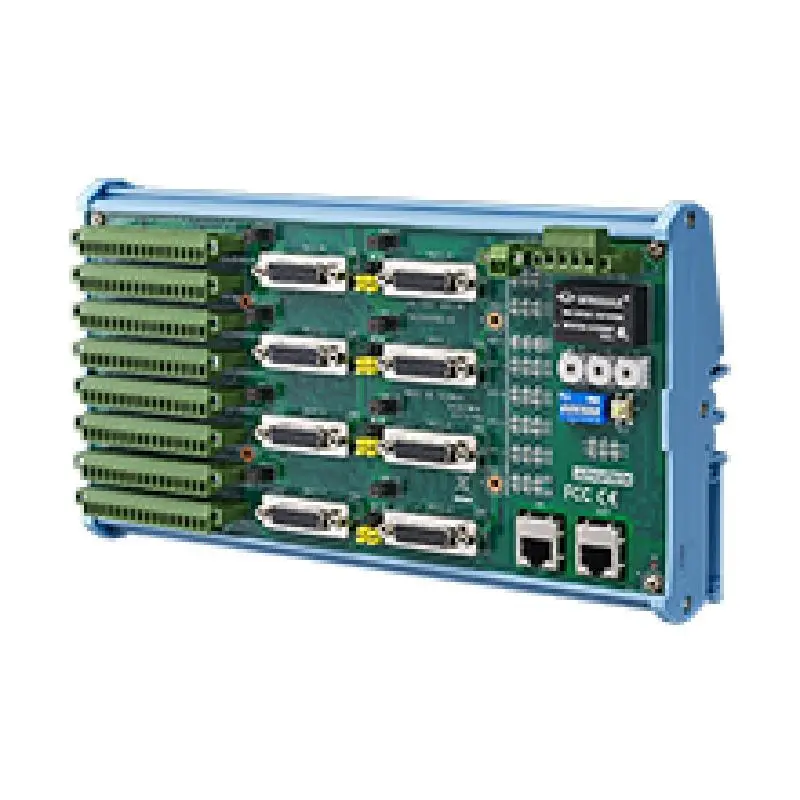

Advantech AMAX-3285IO Advanced 8-axis EtherCAT Motion Server Modules with 16DI/16DO Expansion

Max. 5 MHz, 8-axis pulse output

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

BoardID is switchable

Easily visible LED indicators on board to do diagnosis

Direct wire to servo drive to save terminal board space while installation

Horizontal installation for for servo or stepping motor driver

Suitable for DIN-rail mounting

Programmable interrupt

Memory buffer (10K points) for trajectory planning which is designed in DSP

2-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points

Position latch

Supports gantry mode by semi-closed loop pulse train control

RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated

Output channels are switchable for general input and output purposes
