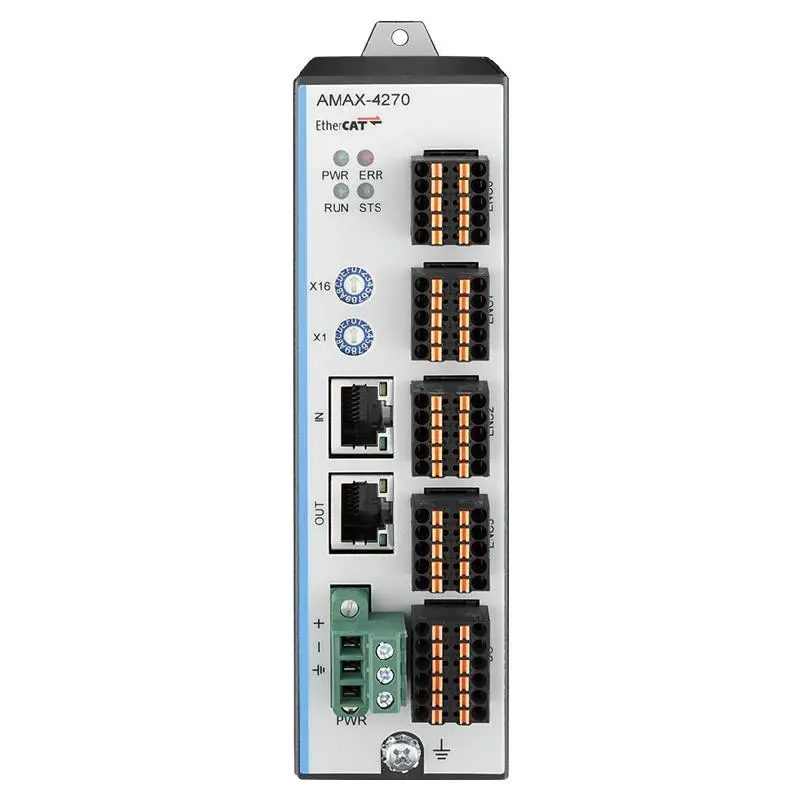

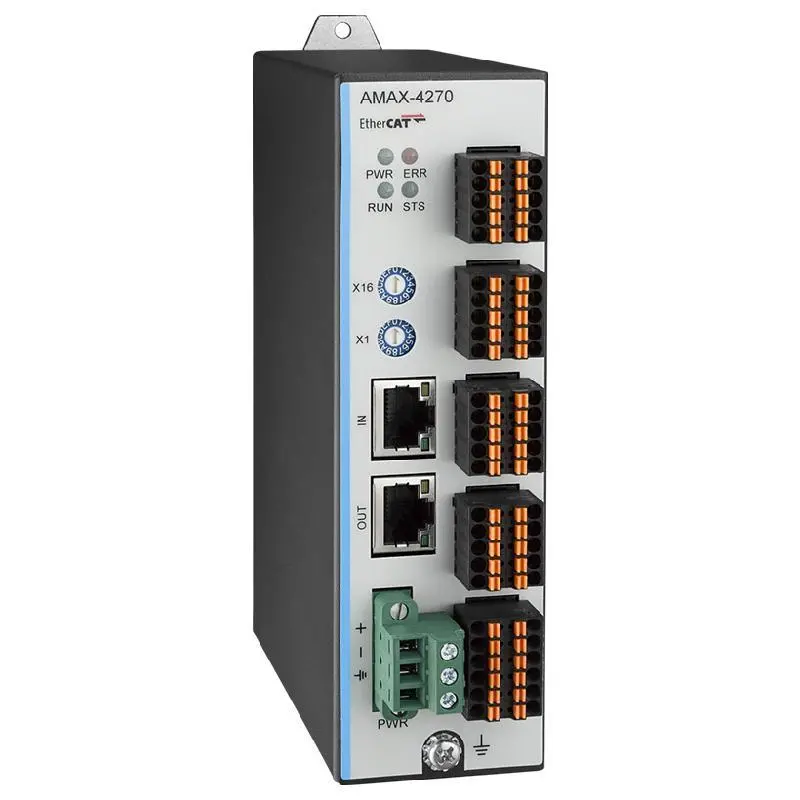

Advantech AMAX-4270 4-channel High Speed Trigger and Latch EtherCAT Module

4-channel 32-bit encoder counters

Encoder input mode : CW/CCW , Pulse/Direction, A/B Phase

Encoder input signal : A, B, Z

Encoder input frequency : 5 MHz (Maximum)

4-channel trigger DO for position compare

Trigger output frequency : 10 kHz; latch input frequency : 10kHz

Trigger output mode : sink, source, TTL

Supports trigger delay time setting for each channel

4-channel latch DI for position latch
