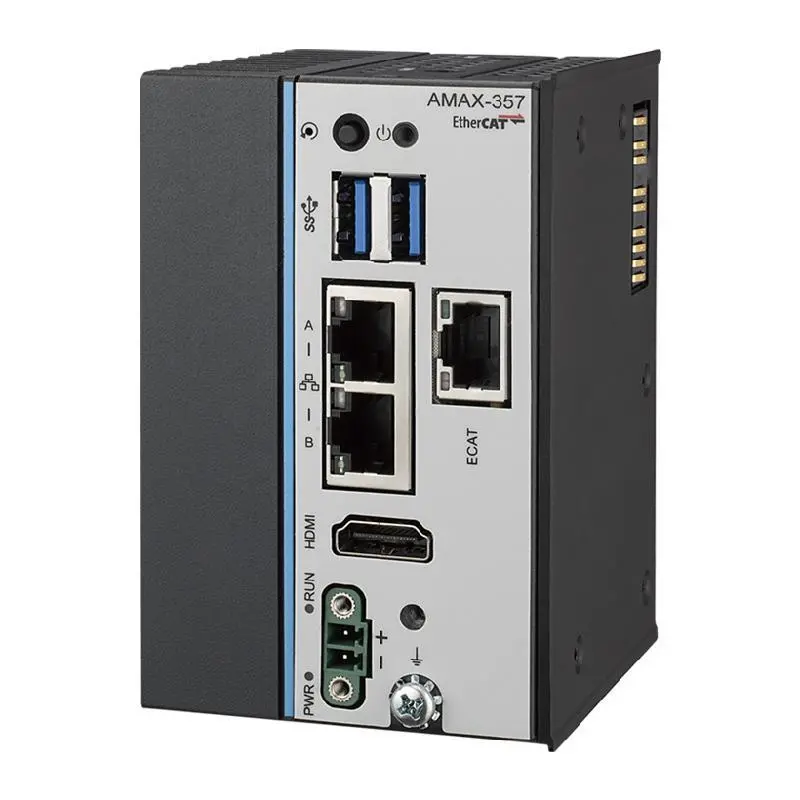

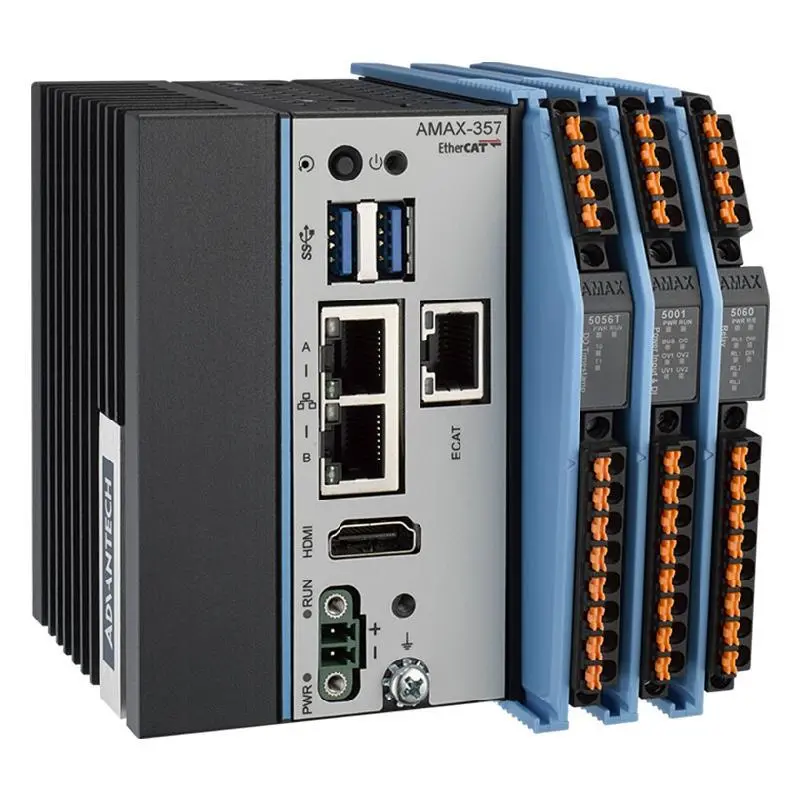

Advantech AMAX-357 Ultra Compact PC-based EtherCAT Controller with Intel Atom Processor, 64GB eMMC, 2 x LAN, 2 x USB and Slice IO expansion

Up to 32-axis EtherCAT PC-based motion controller

Intel® Atom® quad-core x6413E processor

4 GB DDR4 onboard memory

64GB eMMC on board storage

2 x GbE LAN, 2 x USB, 1 x HDMI, 1 x EtherCAT

Full-size mPCIE/mSATA for flexible expansion

Built-in TPM2.0 for hardware-based security

Supports PTP, linear and circle interpolation, Path table

Supports C/C++, VS.Net, LabVIEW programming languages

		AMAX-357-32AE
Hardware	CPU	Intel® Atom™ x6413E 1.5GHz Quad-Core
General	Humidity (Storage)	95% RH (non-condensing)
EtherCAT Extension	BUS Interface	1 x RJ45
General	Protocol	EtherCAT
General	Humidity (Operating)	95% RH (non-condensing)
Hardware	Storage	1 x eMMC (64 GB), 1 x mSATA (shared with mPCIe)
Hardware	LAN	1 x 10/100 Mbps
Hardware	Certification	CE, FCC
Hardware	Power Consumption	30 W @ 24 VDC
Hardware	Power Input	24 VDC ±20%
EtherCAT	Communication IO SubDevice	1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
