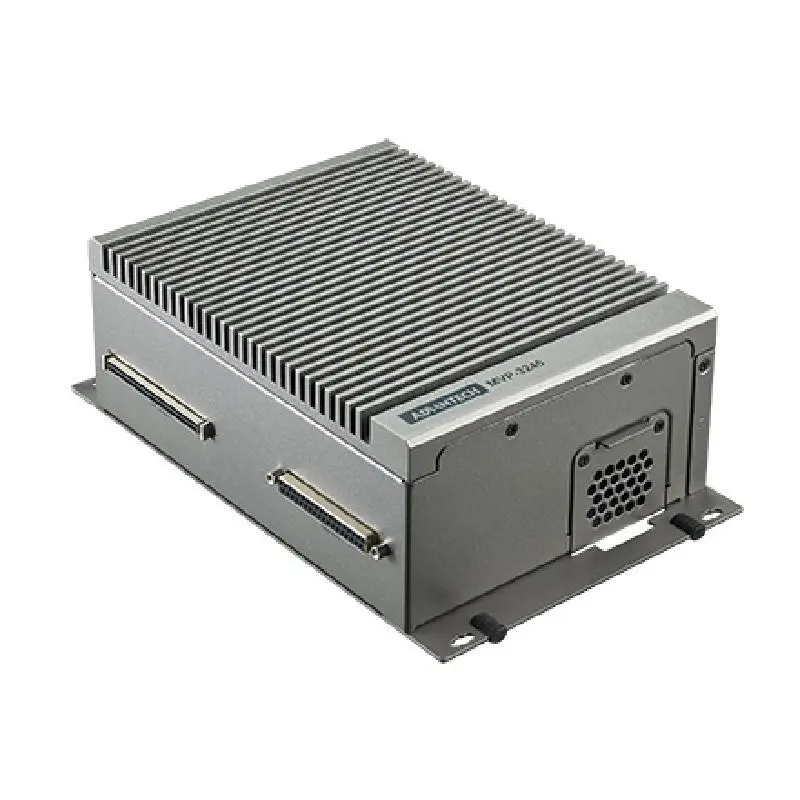

Advantech MVP-3245 4-axis PC-Based Motion Controller with 32-ch Digital I/O

Intel Atom E3825 1.33G dual-core

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

Pulse output up to 5 Mpps

Equipped with a memory buffer (10K points) for trajectory planning

Supports E-Gear, and helical interpolation

Supports E-CAM and provides 256 points for describing CAM profiles

2-axis position comparison trigger

3-axis arc interpolation

16-channel isolated digital input

16-channel isolated digital output
