| AMAX-354-32AE | ||
| Hardware | CPU | ARM® Cortex™ A9 |
| General | Humidity (Storage) | 95% RH (non-condensing) |
| EtherCAT Extension | BUS Interface | 1 x RJ45 |
| General | Protocol | EtherCAT |
| General | Humidity (Operating) | 95% RH (non-condensing) |
| Hardware | Storage | 8 GB eMMC |
| Hardware | LAN | 1 x 10/100 Mbps |
| Hardware | Certification | CE, FCC |
| Hardware | Power Consumption | 30 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±20% |
| EtherCAT | Communication IO SubDevice | 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO |

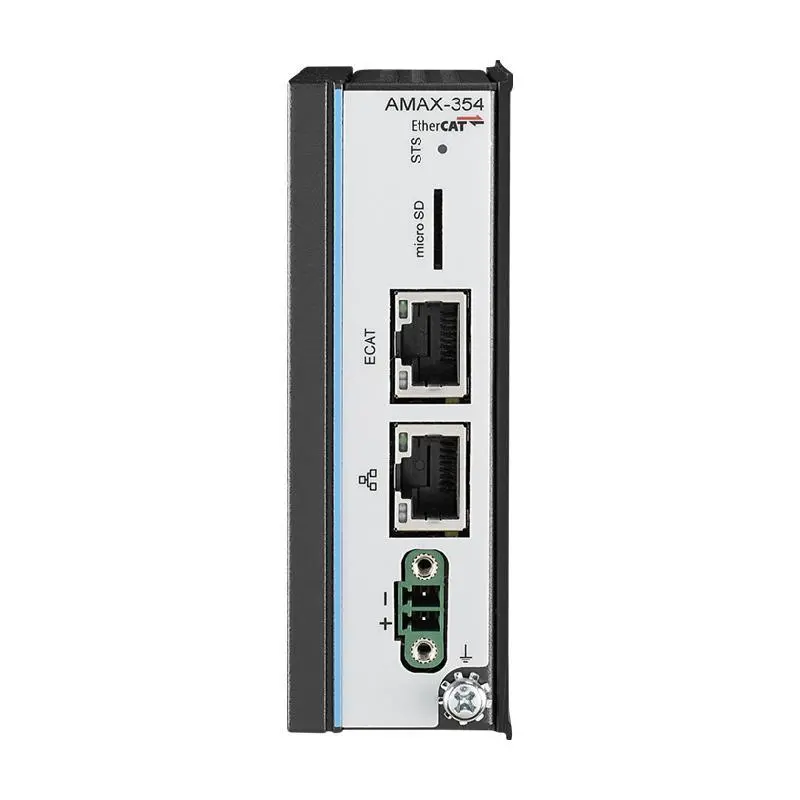

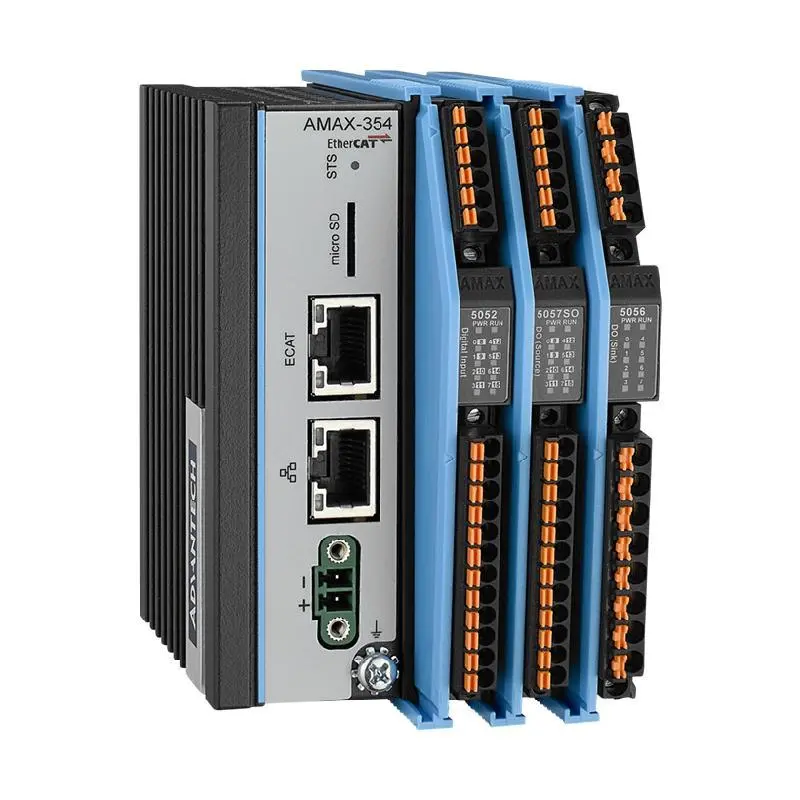

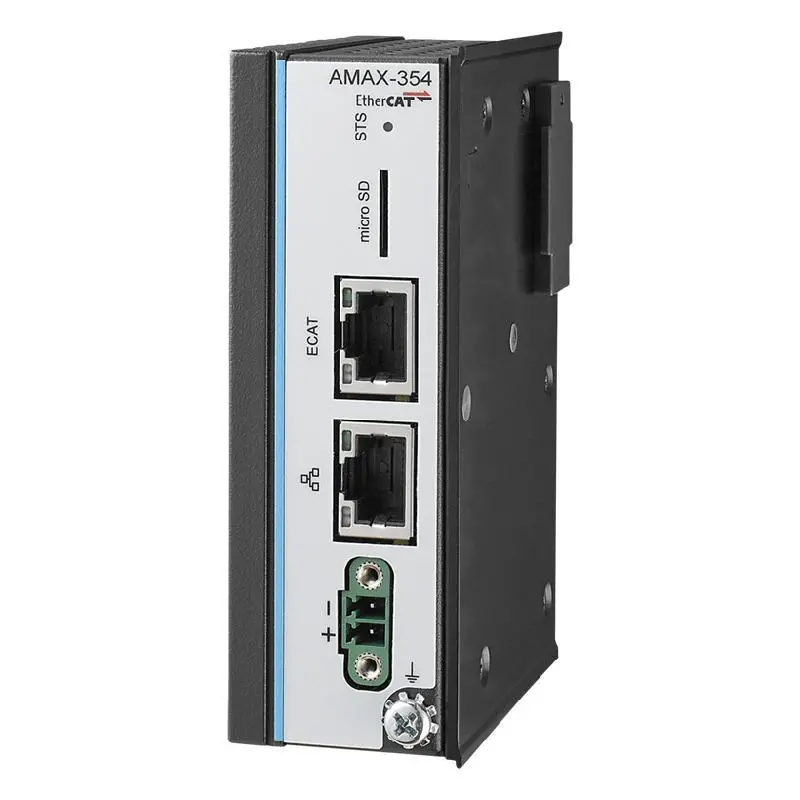

Advantech AMAX-354 Ultra Compact ARM-based EtherCAT Controller with Dual-Core Processor, 1 x LAN, 1 x EtherCAT, 1 x MicroSD and Slice IO expansion
