| AMAX-3110-06AE | ||
| Communications | Data Transfer Medium | Ethernet cable (min. CAT5), shielded |
| Communications | Data Transfer Rates | 100 Mbps |
| Communications | Interface | Ethernet |
| Digital Input | Channels | 16 (Isolated) |
| Digital Input | Input Delay | From logic level 0 to 1:1 msFrom logic level 1 to 0:1 ms |
| Digital Input | Input Voltage | 24 VDC |
| Digital Input and Digital Output | No. of Channels | 16-ch DI and 12-ch DO |
| Digital Output | Channels | 12 (Isolated), 0 (TTL) |
| Digital Output | Leak Current | 0.01 mA ( at signal "0" ) |
| Digital Output | Voltage Rating | 24 VDC |
| Environment | Operating Temperature | 0~60 °C (32~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -20~85 °C (-4~185 °F) |
| Ethernet | No. of Ports | 1 |
| Ethernet | Speed | 10/100 Mbps |
| General | Connectors | 2 x RJ45, 1 x RS-232, 1 x RS-485, 1 x USB |
| General | Protocol | Modbus/TCP, Modbus/RTU |
| General | Rated Voltage | 24 VDC (±15%) |
| Hardware | Certification | CE, FCC class A |
| Hardware | CPU | ARM® Cortex™ A9 |
| Hardware | I/O | 2 x RJ45, 1 x RS-232, 1 x RS-485, 1 x USB |
| Hardware | LAN | 1 x 10/100 Mbps |
| Hardware | LED Indicators | PWR, RUN, I/O, UPD, ERR, Power Diagnosis LED |
| Hardware | Power Consumption | 17 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±15% |
| Hardware | Power Requirement | 24 VDC ±15% |
| Hardware | Power Supply | 24 VDC ±15% |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-485 |
| I/O Interface | USB Ports | 1 x USB 2.0 |
| Isolated Digital Output | Output Type | Sink |
| Local I/O | General Digital I/O | 12-ch DI, 16-ch DO |
| Local I/O | General Input Signal | Input voltage: 24 VDC Max.Signal: EMG (emergency stop) ORG, LMT+, LMT- INPOS (in position signal) LTC (counter latch) RDY (servo ready) ALARM (servo alarm) |
| Local I/O | General Purpose I/O | 16DI/12DO (terminal block) |
| Local I/O | Machine Interfaces | LMT+, LMT-, ORG |
| Local I/O | Position Compare I/O | CMP, PWM |
| Local I/O | Servo Driver Interfaces | ALM, RDY, SVON, INP |
| Mechanical | Dimension (W x H x D) | 150 x 180 x 21 mm |
| Power Requirements | Input Voltage | 24 VDC |
| Pulse Type Motion Control | Home Modes | 16 home mode |
| Pulse Type Motion Control | Interpolation | 6-axis linear, 2-axis circular, 6D Compare, Latch |
| Pulse Type Motion Control | Max. Output Speed | 5 Mpps |
| Pulse Type Motion Control | Motor Driver Support | Pulse-type servo/stepping |
| Pulse Type Motion Control | Number of Axes | 6 |
| Pulse Type Motion Control | Pulse Output Type | Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type) |
| Pulse Type Motion Control | Step Count Range | ±2, 147, 483, 646 |
| Pulse Type Motion Control | Velocity Profiles | T-Curve, S-Curve |

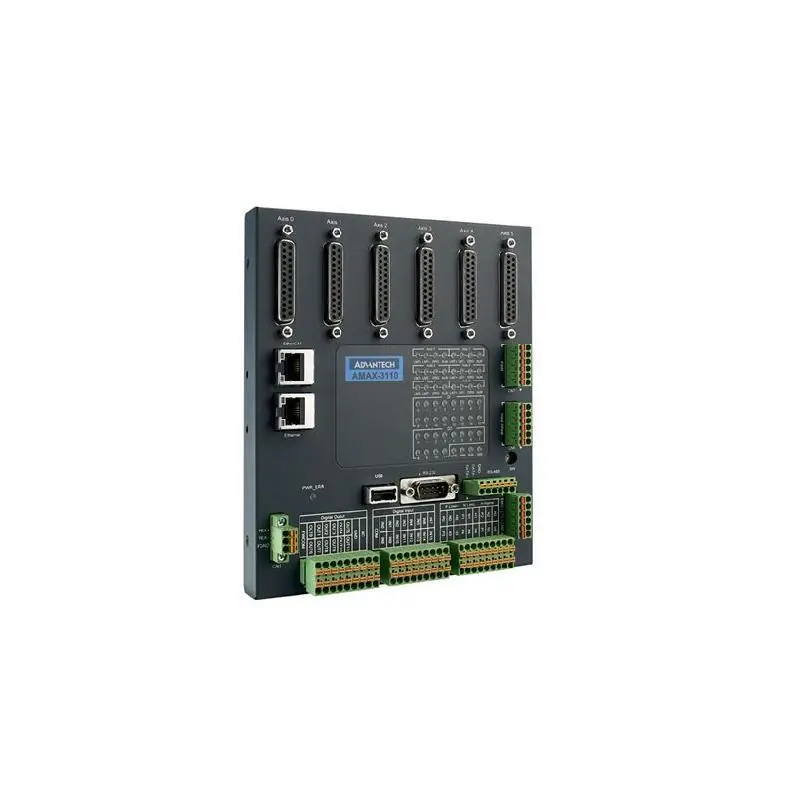

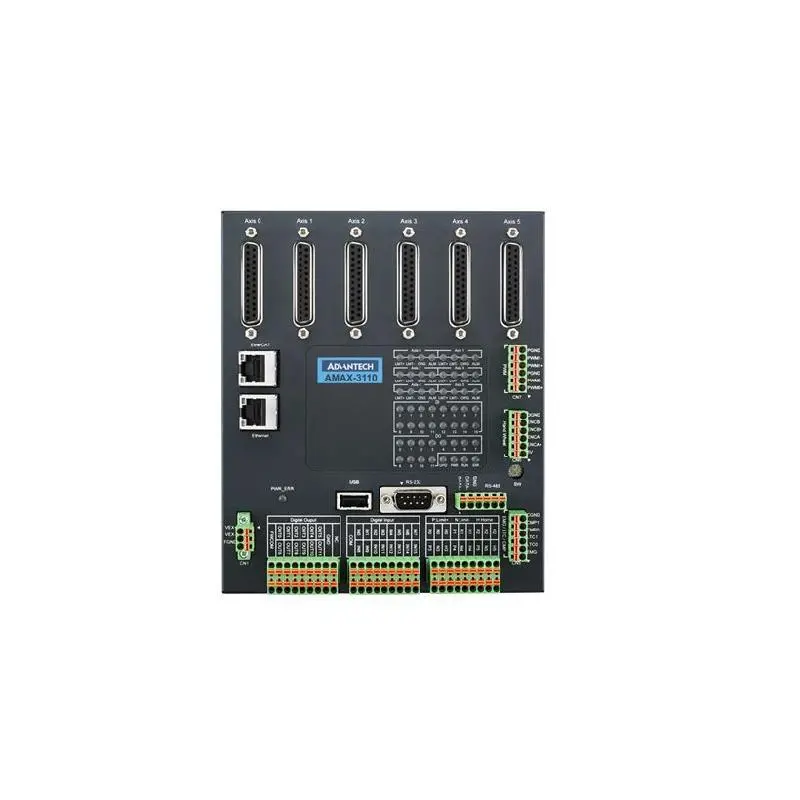

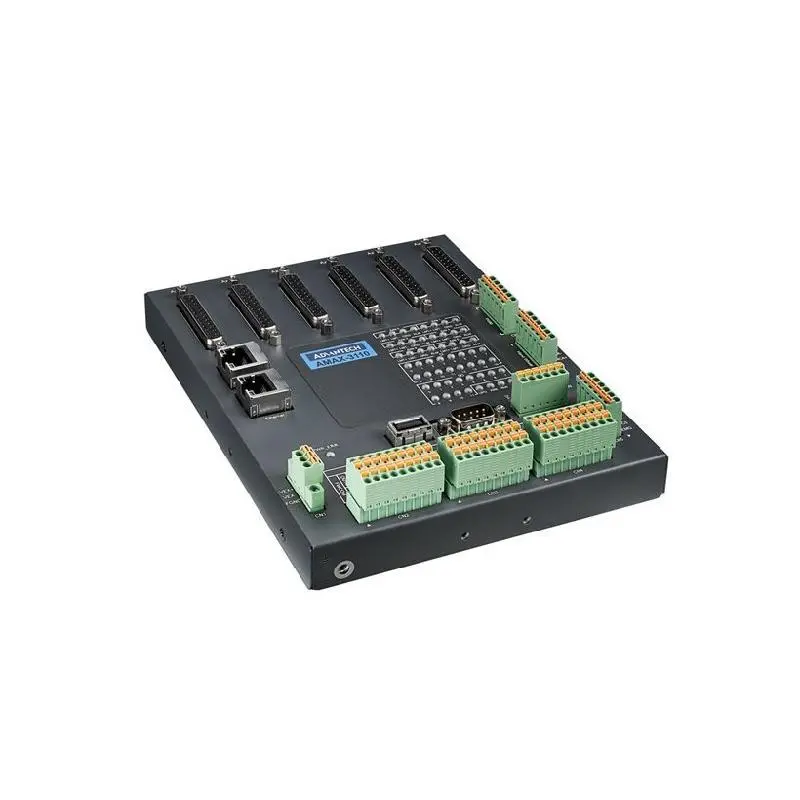

Advantech AMAX-3110 Standalone 6-axis Pulse Train Motion Controller
