PPC-115W-PK92AB | PPC-115W-PK92DB | ||
Environment | Ingress Protection | Front Panel IP65 | Front Panel IP65 |
Environment | Operating Temperature | 0~50 °C (32~122 °F) | 0~50 °C (32~122 °F) |
Environment | Relative Humidity | 95% RH (non-condensing) | 95% RH (non-condensing) |
Environment | Storage Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
Environment | Vibration Protection | 0.5 Grms, random | 0.5 Grms, random |
Hardware | Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI |
Hardware | CPU | Rockchip ARM® RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53 | Rockchip ARM® RK3399 Dual-core Cortex-A72 and Quad-core Cortex-A53 |
Hardware | Expansion | 1 x M.2 E Key 2230 | 1 x M.2 E Key 2230 |
Hardware | I/O | 1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO | 1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO |
Hardware | LAN | 1 x 10/100/1000 Mbps | 1 x 10/100/1000 Mbps |
Hardware | Memory | 1 x LPDDR4 with 4 GB | 1 x LPDDR4 with 4 GB |
Hardware | OS Support | Android, Linux | Android, Linux |
Hardware | Power Consumption | 12 W @ 12 VDC | 12 W @ 12 VDC |
Hardware | Power Input | 12 VDC | 12 VDC |
I/O Interface | Power Connector | 1 x DC Jack | 1 x DC Jack |
I/O Interface | Serial Ports | 1 x RS-232 | 1 x RS-232 |
LCD Display | Backlight Life (hrs) | 15,000 | 15,000 |
LCD Display | Display Size | 15.6" | 15.6" |
LCD Display | Luminance (cd/m2) | 800 | 800 |
LCD Display | Max. Resolution | 1920 x 1080 | 1920 x 1080 |
LCD Display | Viewing Angle (H/V°) | 170/170 | 170/170 |
Mechanical | Dimension (W x H x D) | 402 x 260 x 53 mm | 402 x 260 x 53 mm |
Mechanical | Enclosure | PC+ABS, SECC | PC+ABS, SECC |
Mechanical | Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
Mechanical | Weight (Net) | 2.6 kg (5.3 lb) | 2.6 kg (5.3 lb) |
Touchscreen | Touch Type | PCAP | PCAP |
USB Vision | Connector | 1 x USB 2.0 Type A, 1 x USB 3.0 Type A | 1 x USB 2.0 Type A, 1 x USB 3.0 Type A |

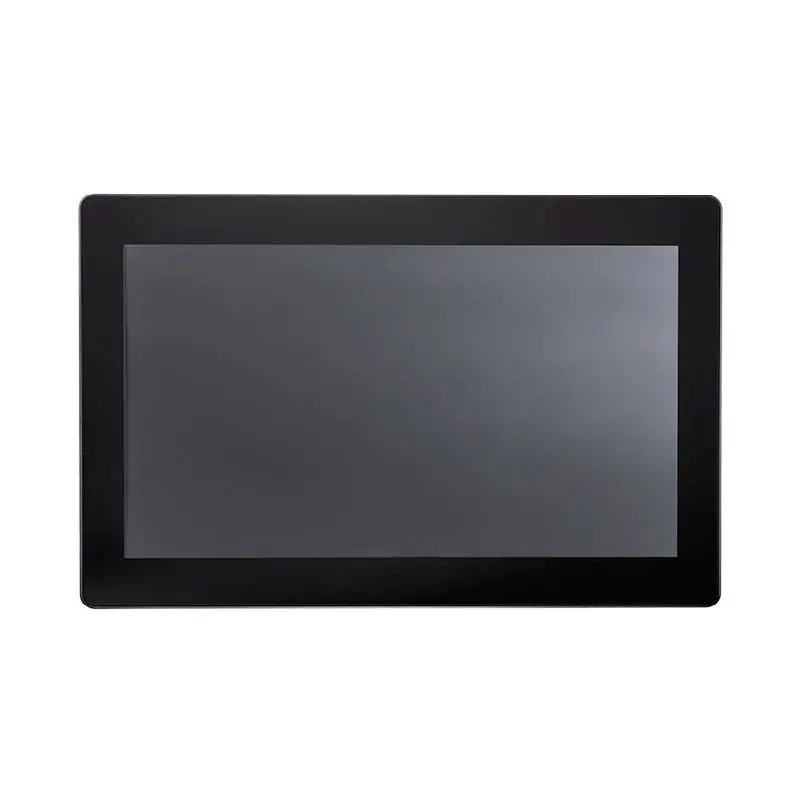

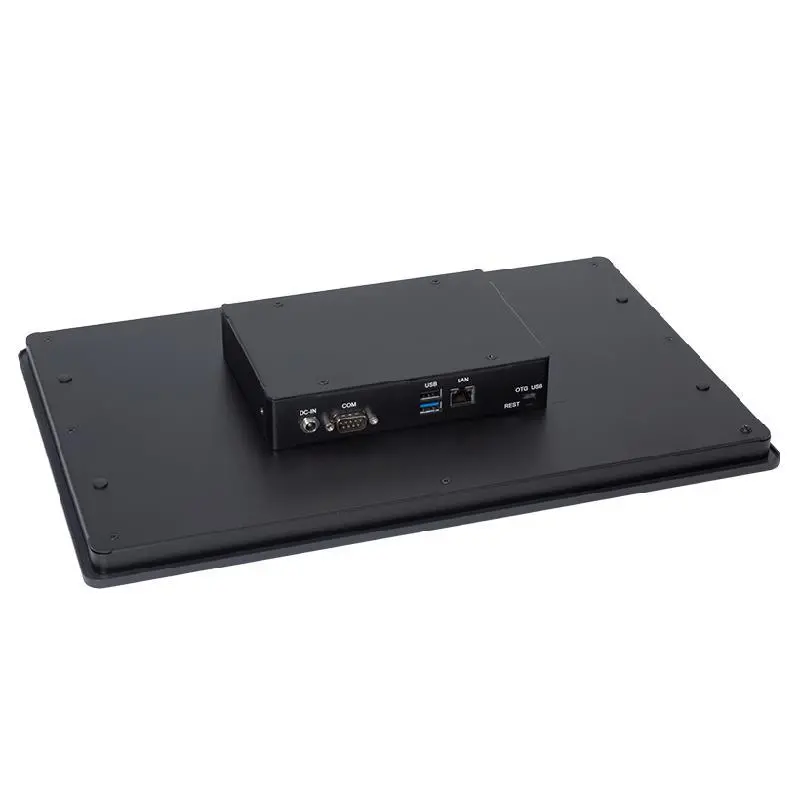

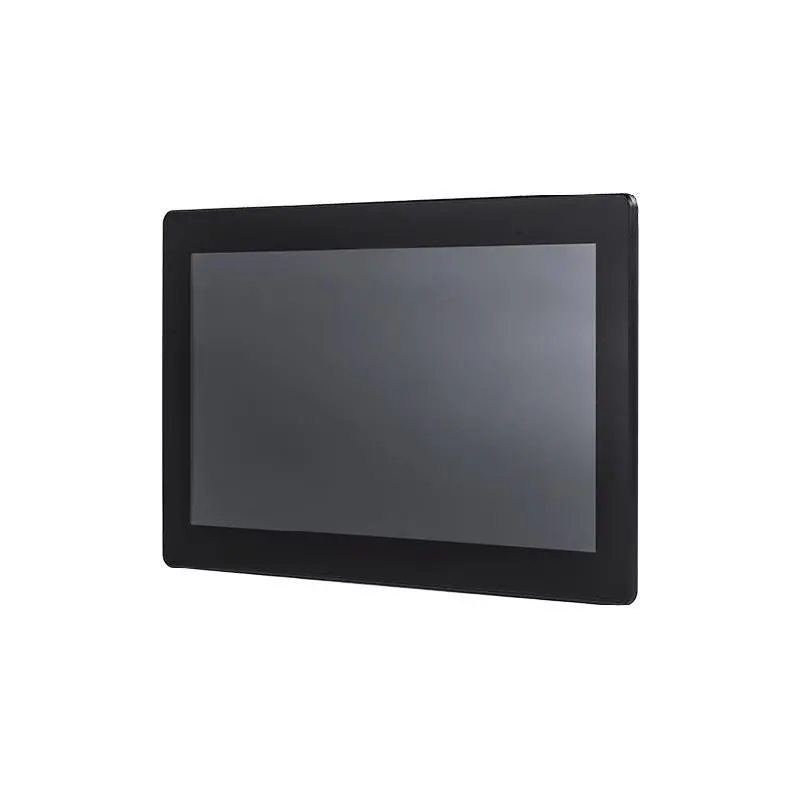

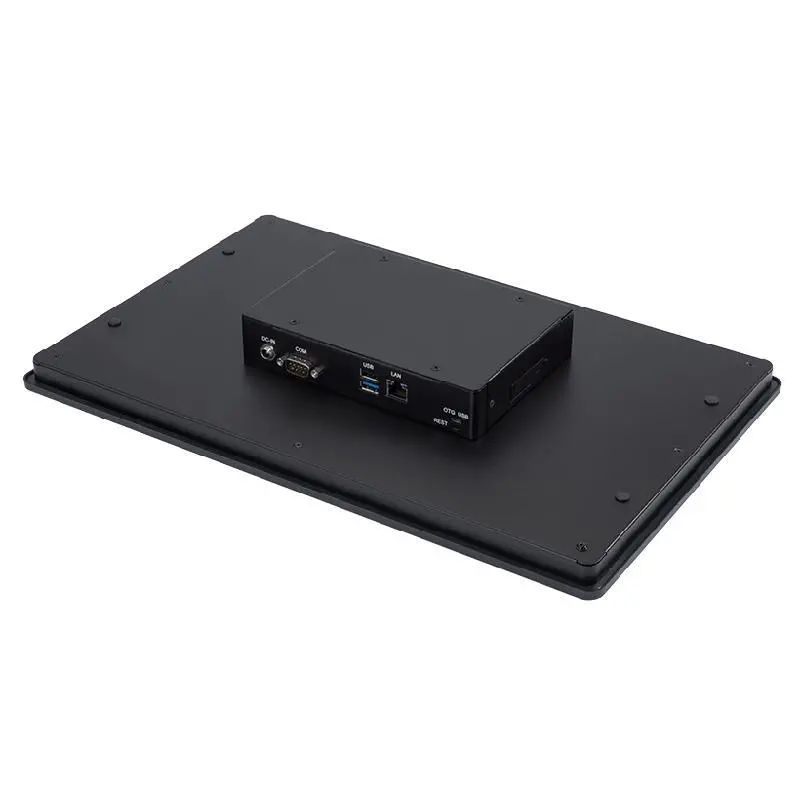

Advantech PPC-115W 15.6" All-in-One Panel PC with Rockchip 3399 processor
