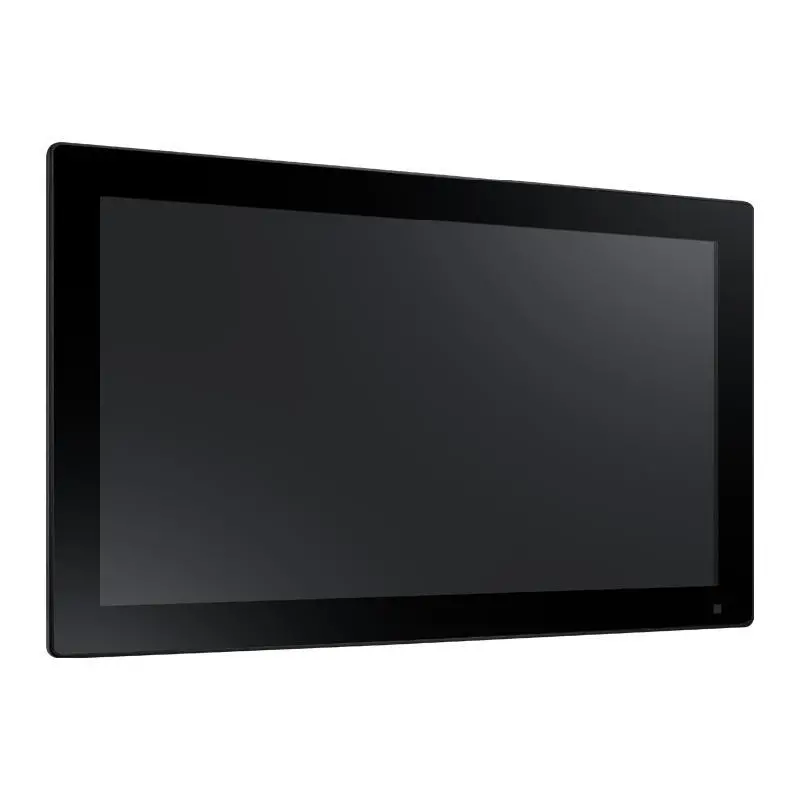

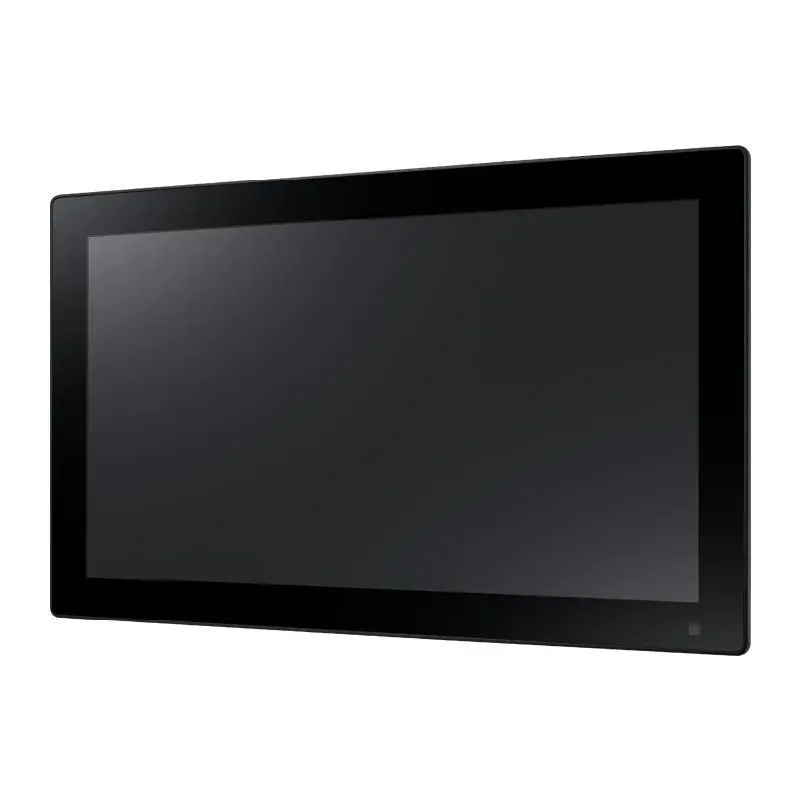

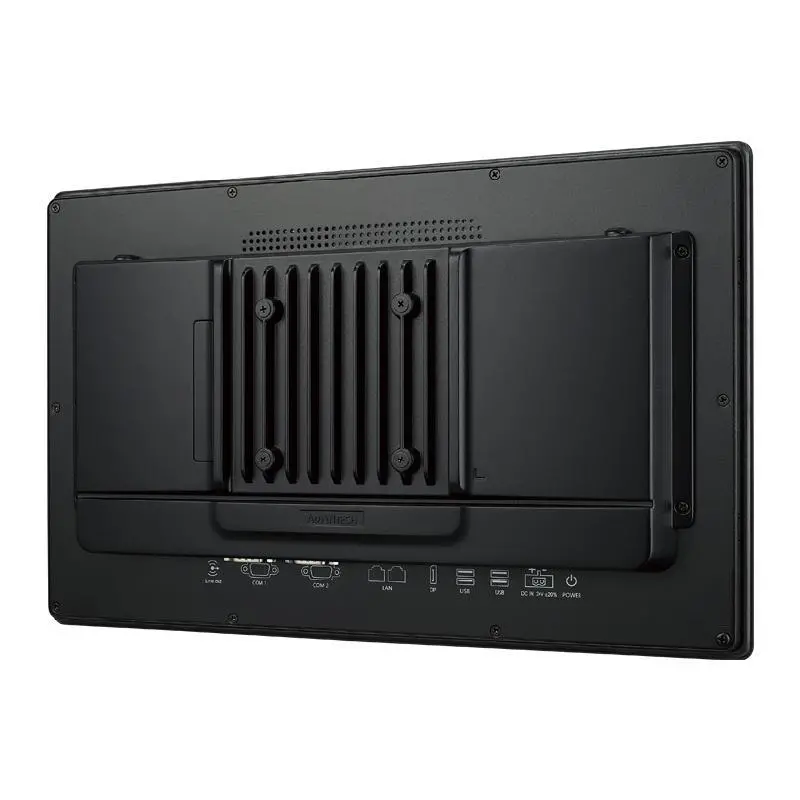

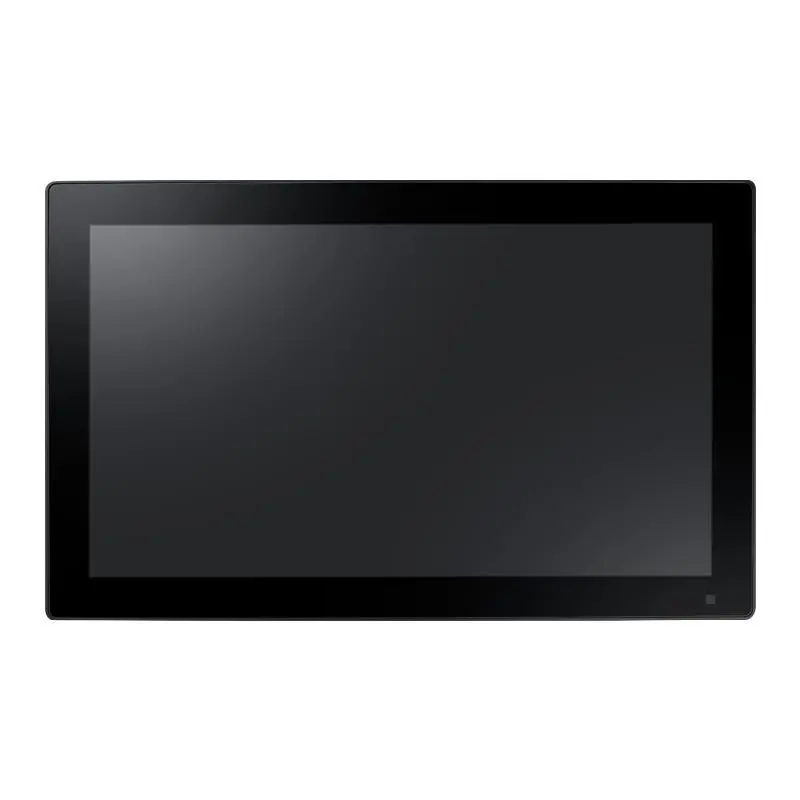

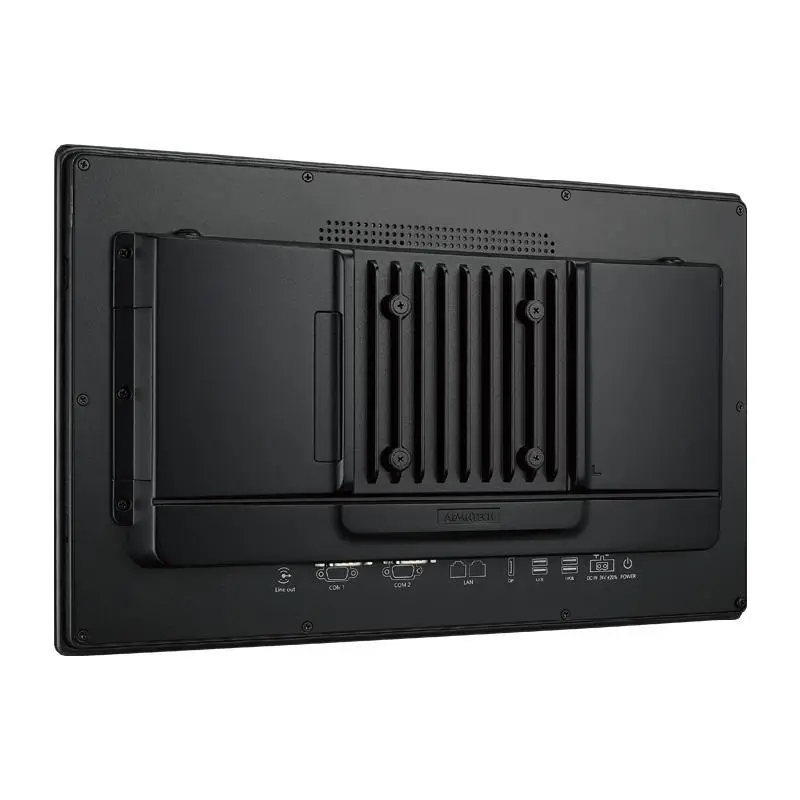

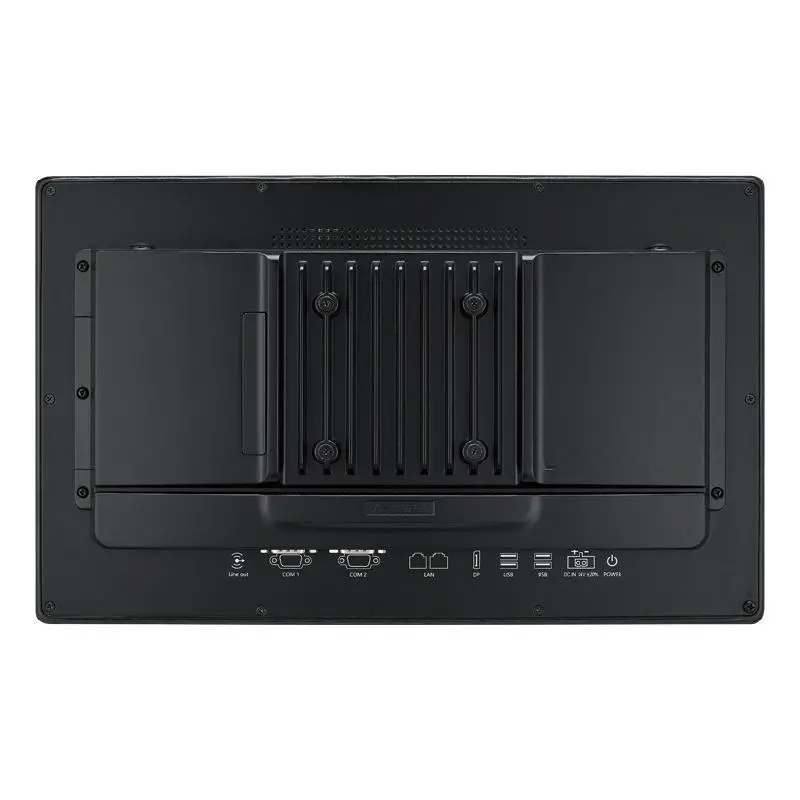

Advantech PPC-321SW ADL_N 21.5" Fanless Widescreen Panel PC with Intel® Processor N97, Quad-Core

Intel® Processor N97, Quad-Core, 2.0GHz

21.5" true-flat TFT LCD with projected capacitive touch control

Fanless design with low power consumption

Supports 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1), 1 x 2.5" SATA bay for storage

Supports dual displays (1 x external DP)

Supports iDoor, PCI or PCIe

Supports VESA 100

IP66-rated front panel

		PPC-321SW-PN9A
Hardware	CPU	Intel® N97 2.0GHz Quad-Core
Hardware	Memory	1 x DDR5 SO-DIMM Slot
Hardware	Storage	1 x NVMe/SATA M.2 SSD slot (2242/2280 M-key), 1 x 2.5" SSD/HDD Bay
Hardware	LAN	2 x 10/100/1000/2500 Mbps

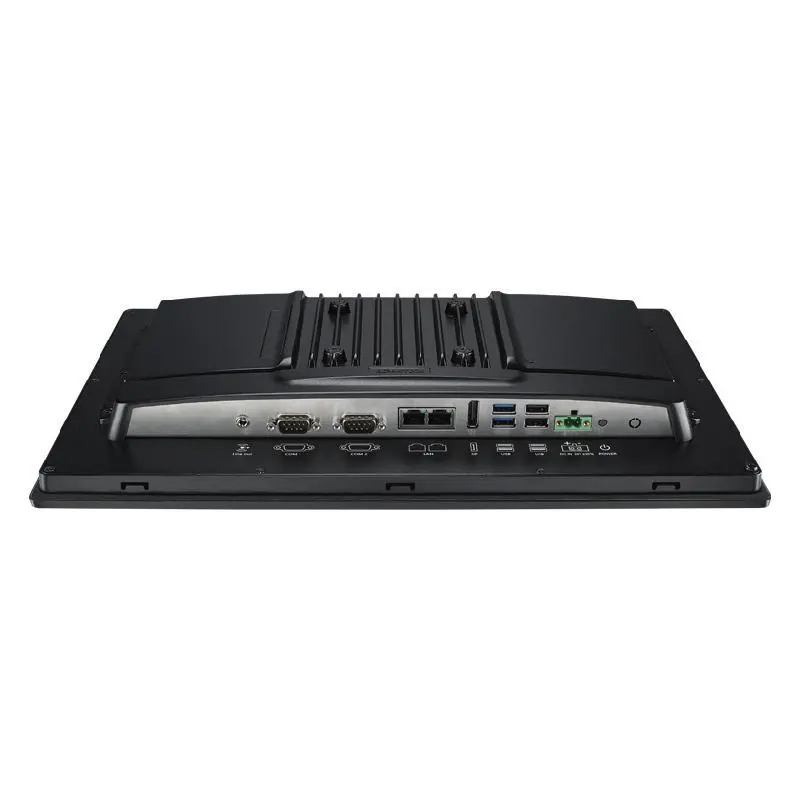

Hardware	I/O	2 x RS-232/422/485, 2 x USB 3.2, 2 x USB 2.0, 1 x DP, 1 x Line out, 1 x iDoor Slot
Hardware	Expansion	1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1
Hardware	Watchdog Timer	1~255 s
Mechanical	Dimension (W x H x D)	529.6 x 321.3 x 53.4 mm
Mechanical	Weight (Net)	6.2 kg (13.67 lb)
Hardware	OS Support	Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android
Hardware	Power Input	24 VDC ±20%
Hardware	Power Consumption	45 W @ 24 VDC
LCD Display	Display Size	21.5"
LCD Display	Max. Resolution	1920 x 1080
LCD Display	Viewing Angle (H/V°)	178/178
LCD Display	Luminance (cd/m2)	250
LCD Display	Backlight Life (hrs)	50,000
Touchscreen	Touch Type	PCAP
Environment	Operating Temperature	-10~50 °C (14~122 °F)
Environment	Storage Temperature	-20~60 °C (-4~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Hardware	Certification	CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
Environment	Ingress Protection	Front Panel IP66
