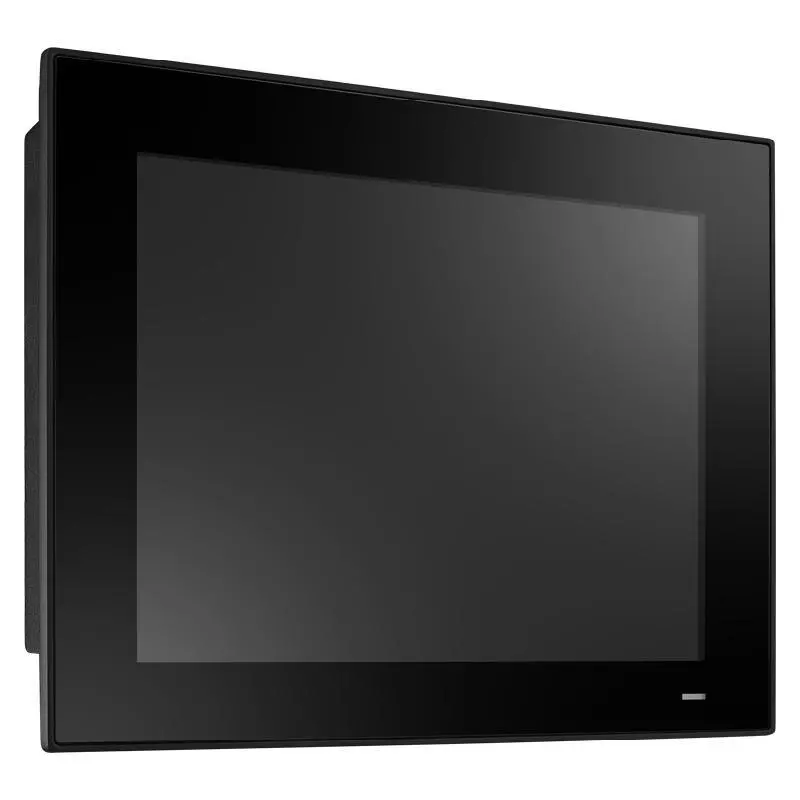

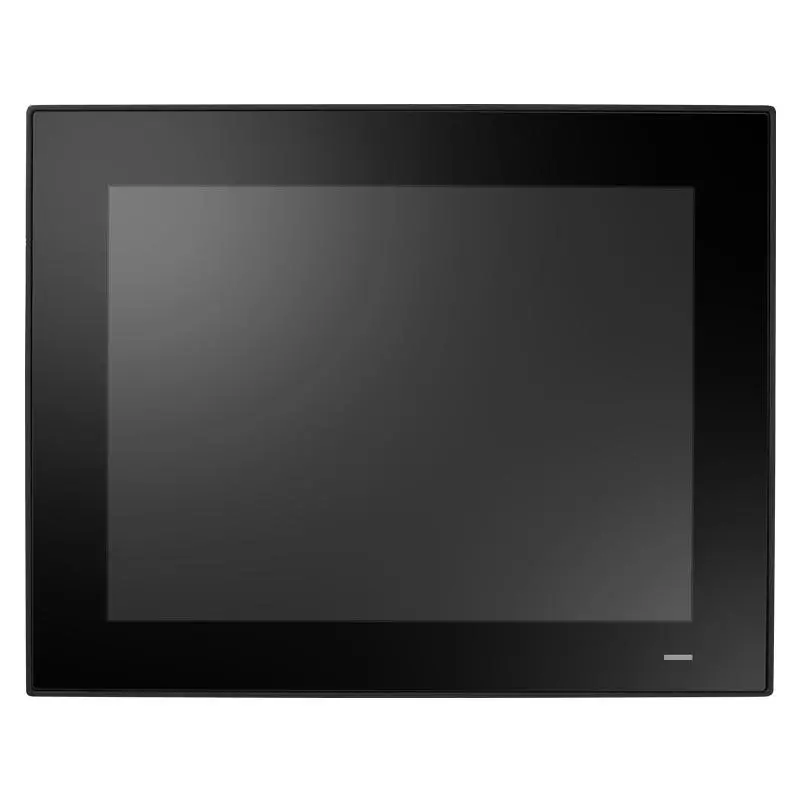

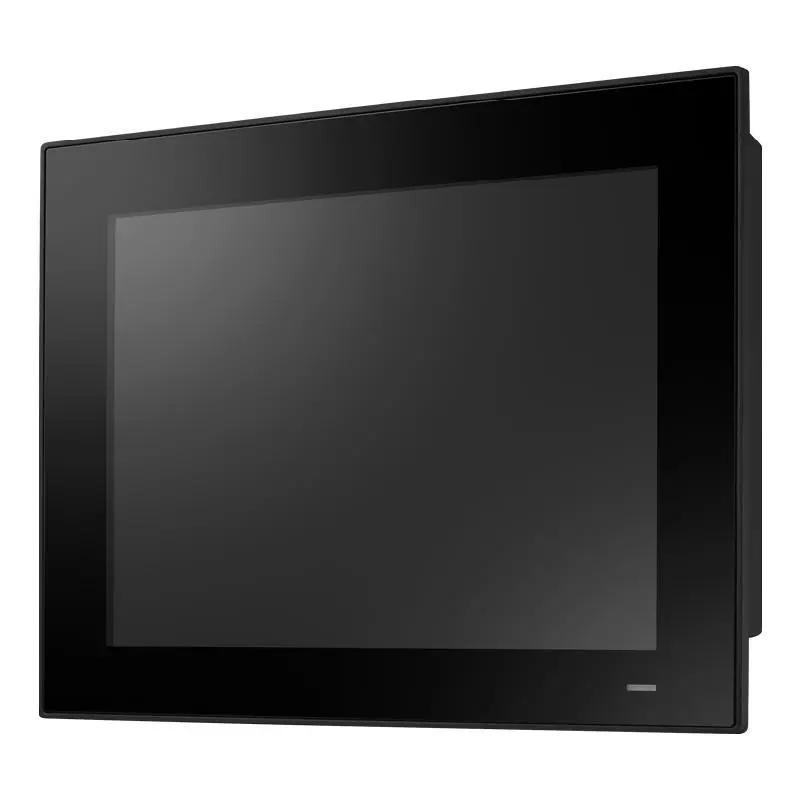

Advantech PPC-310 EHL Fanless Panel PC with Intel® Celeron® J6412 Processor

    Industrial-grade 10.4" XGA TFT LCD with 30K backlight lifetime

    Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control

    Intel® Celeron® J6412 quad-core, 2.0 GHz, processor

    Up to 32 GB DDR4 SDRAM

    1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1

    Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel

    Supports E-key for wireless module

    Supports expansion via M.2 slot

    Supports Windows Embedded Linux and Android OS

PPC-310-RJ60A PPC-310-PJ60A
Environment Ingress Protection Front Panel IP66 Front Panel IP66
Environment Operating Temperature -10~50 °C (14~122 °F) -10~50 °C (14~122 °F)
Environment Relative Humidity 95% RH (non-condensing) 95% RH (non-condensing)
Environment Storage Temperature -20~60 °C (-4~140 °F) -20~60 °C (-4~140 °F)
Environment Vibration Protection 2 Grms, random 2 Grms, random
Hardware Certification CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
Hardware CPU Intel® Celeron® J6412 2.00 GHz, Quad core Intel® Celeron® J6412 2.00 GHz, Quad core
Hardware Ethernet Intel® i225-LM Intel® i225-LM
Hardware Expansion 1 x M.2 E Key 2230 1 x M.2 E Key 2230
Hardware Hardware Security TPM 2.0 TPM 2.0

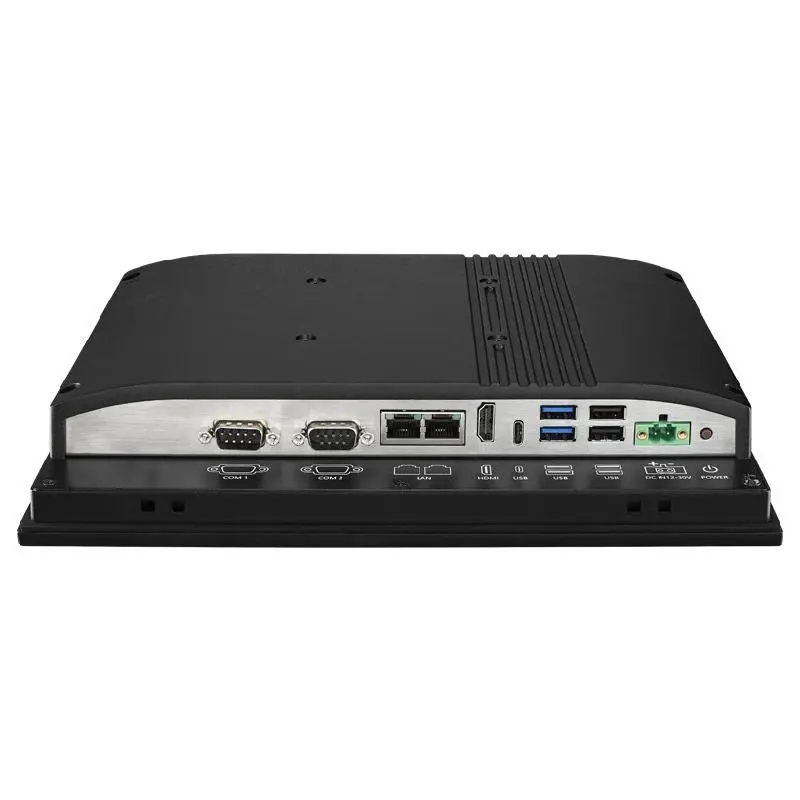

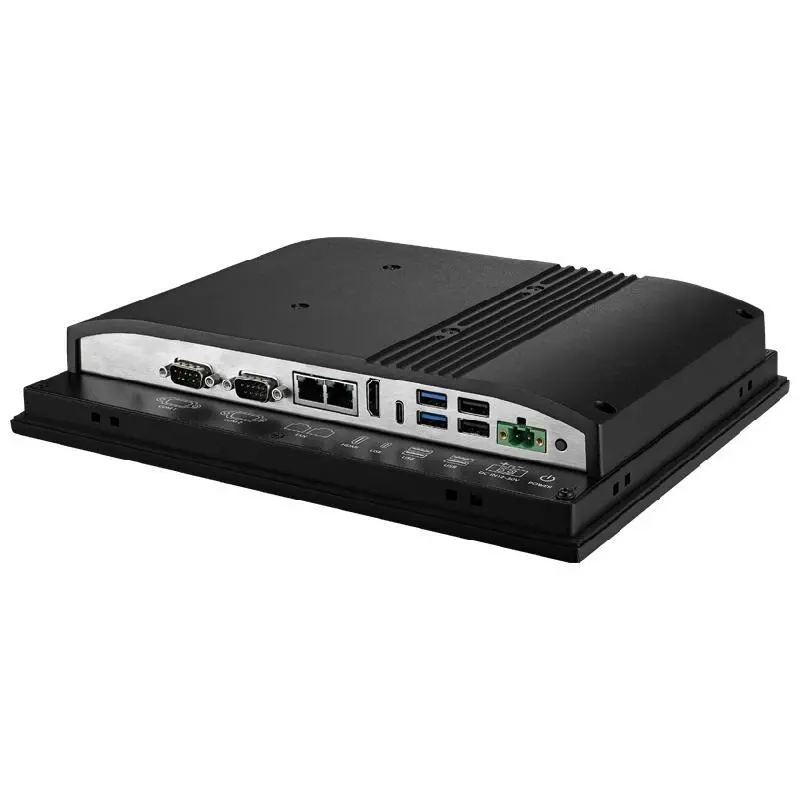

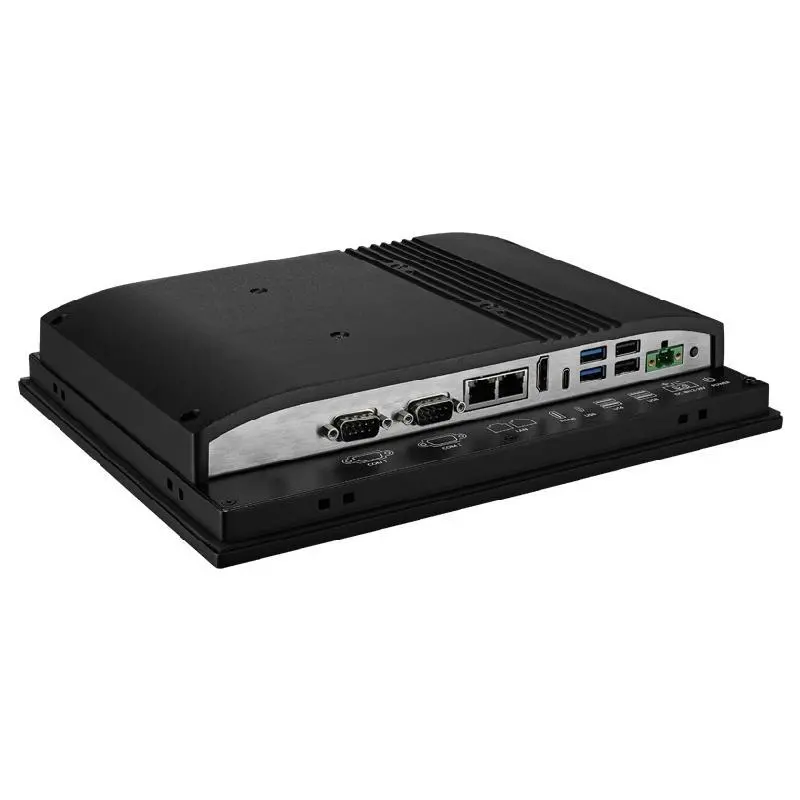

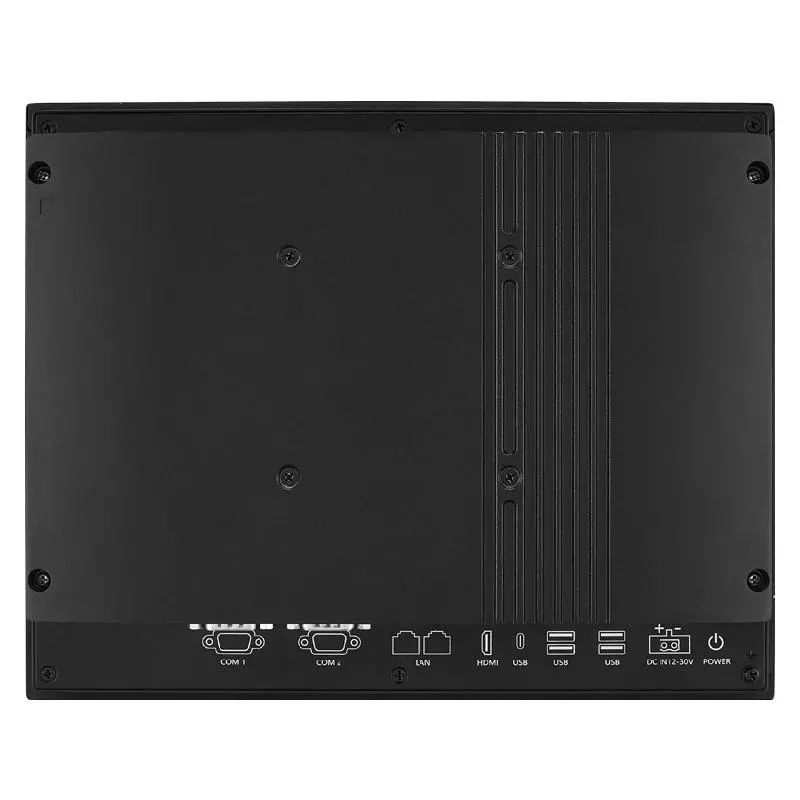

Hardware I/O 1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI 1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI
Hardware LAN 2 x 10/100/1000/2500 Mbps 2 x 10/100/1000/2500 Mbps
Hardware Memory 1 x DDR4 SO-DIMM Slot 1 x DDR4 SO-DIMM Slot
Hardware OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android
Hardware Power Consumption 35 W @ 19 VDC 35 W @ 19 VDC
Hardware Power Input 12~30 VDC 12~30 VDC
I/O Interface Power Connector 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block
I/O Interface Serial Ports 1 x RS-232, 1 x RS-232/422/485 1 x RS-232, 1 x RS-232/422/485
LCD Display Backlight Life (hrs) 30,000 30,000
LCD Display Display Size 10.4" 10.4"
LCD Display Luminance (cd/m2) 350 350
LCD Display Max. Resolution 1024 x 768 1024 x 768
LCD Display Viewing Angle (H/V°) 160/176 160/176
Mechanical Dimension (W x H x D) 272 x 217 x 46 mm 272 x 217 x 46 mm
Mechanical Enclosure Die-cast aluminum alloy Die-cast aluminum alloy
Mechanical Mounting Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel
Mechanical Weight (Net) 3 kg 3 kg (6.61 lb)
Touchscreen Touch Type 5-wire resistive PCAP
USB Vision Connector 2 x USB 2.0 Type A, 1 x USB 3.0 Type A 2 x USB 2.0 Type A, 1 x USB 3.0 Type A
