| PPC-324W-PB5A | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | -10~50 °C (14~122 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Hardware | CPU | Intel® Core™ i5-1145G7E 1.5GHz Quad core |
| Hardware | Ethernet | Intel® i219-LM GbE, Intel® i225-LM GbE |
| Hardware | Expansion | 1 x M.2 E Key 2230 |
| Hardware | I/O | 1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out |
| Hardware | LAN | 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps |
| Hardware | Memory | 2 x DDR4 SO-DIMM Slot |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android |
| Hardware | Power Consumption | 80 W @ 19 VDC |
| Hardware | Power Input | 12~30 VDC |
| I/O Interface | Displays | 1 x HDMI |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-232/422/485 |
| LCD Display | Backlight Life (hrs) | 30,000 |
| LCD Display | Display Size | 23.8" |
| LCD Display | Luminance (cd/m2) | 450 |
| LCD Display | Max. Resolution | 1920 x 1080 |
| LCD Display | Viewing Angle (H/V°) | 178/178 |
| Mechanical | Dimension (W x H x D) | 596 x 374 x 62 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 8.6 kg (18.96 lb) |
| Touchscreen | Touch Type | PCAP |
| USB Vision | Connector | 3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C |
| Hardware | Hardware Security | TPM 2.0 |

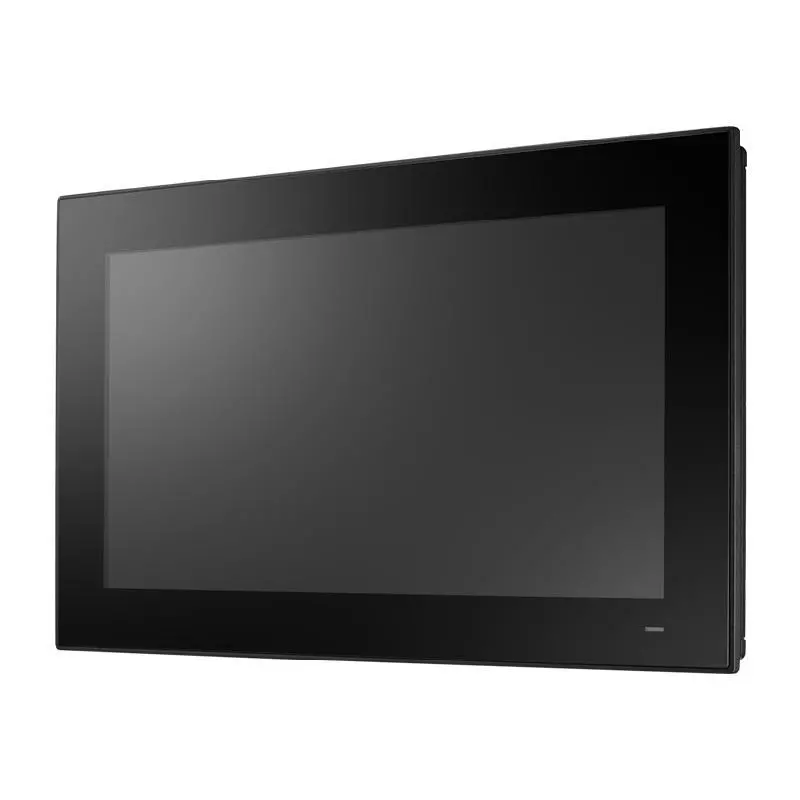

Advantech PPC-324W TGL 23.8" Fanless Panel PC with Intel® Core™ i7/i5/i3 Processor
