| PPC-3120S-RB | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -40~60°C (-40~140°F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI |
| Hardware | CPU | Intel® Celeron® N2930 1.83GHz Quad-Core |
| Hardware | Ethernet | Realtek® 8119i GbE |
| Hardware | Expansion | 1 x Full-size mPCIe slot |
| Hardware | I/O | 1 x RS-232, 1 x RS-232/422/485, 1 x USB 2.0, 1 x USB 3.0 |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 1 x DDR3L SO-DIMM Slot |
| Hardware | OS Support | Microsoft® Windows 7, Microsoft® Windows 10 LTSC, Linux |
| Hardware | Power Consumption | 18 W @ 19 VDC |
| Hardware | Power Input | 12~24 VDC |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-232/422/485 |
| LCD Display | Backlight Life (hrs) | 30,000 |
| LCD Display | Display Size | 12" |
| LCD Display | Luminance (cd/m2) | 500 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 160/140 |
| Mechanical | Dimension (W x H x D) | 317 x 246 x 49 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 3.4 kg (7.5 lb) |
| Touchscreen | Touch Type | 5-wire resistive |
| USB Vision | Connector | 2 x USB 2.0 Type A, 1 x USB 3.0 Type A |

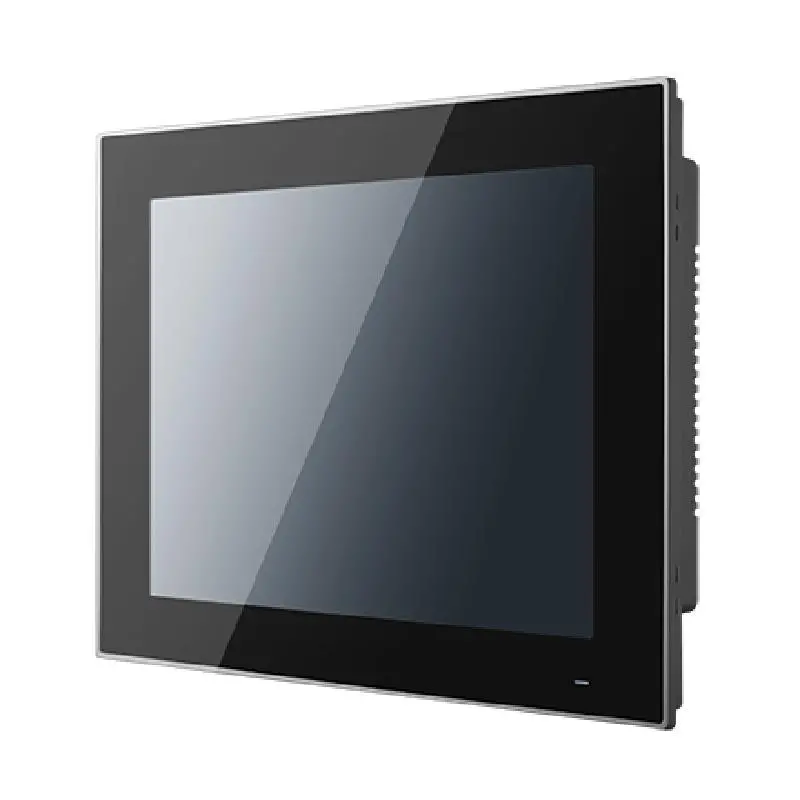

Advantech PPC-3120S 12.1" Fanless Panel PC with Intel® Celeron® N2930 Processor
