| PPC-415-PB50A | PPC-415-PB70A | PPC-415-PB30A | ||
| Hardware | CPU | Intel® Core™ i5-1145G7E 1.5GHz Quad core | Intel® Core™ i7-1185G7E 1.8GHz Quad core | Intel® Core™ i3-1115G4E 2.2GHz Dual core |
| Hardware | Memory | 2 x DDR4 SO-DIMM Slot | 2 x DDR4 SO-DIMM Slot | 2 x DDR4 SO-DIMM Slot |
| Hardware | Storage | 1 x SATA M.2 SSD slot (2280/2242 M-Key), 1 x 2.5” SSD/HDD Bay | 1 x SATA M.2 SSD slot (2280/2242 M-Key), 1 x 2.5” SSD/HDD Bay | 1 x SATA M.2 SSD slot (2280/2242 M-Key), 1 x 2.5” SSD/HDD Bay |
| Hardware | LAN | 2 x 10/100/1000/2500 Mbps | 2 x 10/100/1000/2500 Mbps | 2 x 10/100/1000/2500 Mbps |
| Hardware | Ethernet | Intel® i225-LM | Intel® i225-LM | Intel® i225-LM |
| Hardware | I/O | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.2, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.0,1 x Line Out, 1 x Mic In, 1 x VGA, 1 x DP | 2 x RS-232, 1 x RS-422/485, 4 x USB 3.0,1 x Line Out, 1 x Mic In, 1 x VGA, 1 x DP |
| I/O Interface | Serial Ports | 2 x RS-232, 1 x RS-422/485 | 2 x RS-232, 1 x RS-422/485 | 2 x RS-232, 1 x RS-422/485 |
| I/O Interface | Audio | Line-Out, Mic-In | Line-Out, Mic-In | Line-Out, Mic-In |
| USB Vision | Connector | 4 x USB 3.2 Type A | 4 x USB 3.2 Type A | 4 x USB 3.2 Type A |
| I/O Interface | Displays | 1 x HDMI, 1 x DP | 1 x HDMI, 1 x DP | 1 x HDMI, 1 x DP |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block | 1 x 2-Pin Terminal Block | 1 x 2-Pin Terminal Block |
| Hardware | Expansion | 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI | 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI | 1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI |
| Hardware | Watchdog Timer | 1~255 s | 1~255 s | 1~255 s |
| Mechanical | Dimension (W x H x D) | 392 x 314 x 55 mm | 392 x 314 x 55 mm | 392 x 314 x 55 mm |
| Environment | Relative Humidity | 95% RH (non-condensing) | 95% RH (non-condensing) | 95% RH (non-condensing) |
| Mechanical | Enclosure | Die-cast aluminum alloy, PC + ABS | Die-cast aluminum alloy, PC + ABS | Die-cast aluminum alloy, PC + ABS |
| Environment | Vibration Protection | 2 Grms, random | 2 Grms, random | 2 Grms, random |
| Mechanical | Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
| Hardware | Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Mechanical | Weight (Net) | 5.4 kg (11.90 lb) | 5.4 kg (11.90 lb) | 5.4 kg (11.90 lb) |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Hardware | Power Input | 9~32 VDC | 9~32 VDC | 9~32 VDC |
| Hardware | Power Consumption | 60 W @ 19 VDC | 60 W @ 19 VDC | 60 W @ 19 VDC |
| Touchscreen | Touch Type | PCAP | PCAP | PCAP |
| LCD Display | Display Size | 15" | 15" | 15" |
| LCD Display | Max. Resolution | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 176/176 | 176/176 | 176/176 |
| LCD Display | Luminance (cd/m2) | 500 | 500 | 500 |
| LCD Display | Backlight Life (hrs) | 70,000 | 70,000 | 70,000 |
| Environment | Operating Temperature | -10~50 °C (14~122 °F) | -10~50 °C (14~122 °F) | -10~50 °C (14~122 °F) |
| Environment | Storage Temperature | -40~60°C (-40~140°F) | -40~60°C (-40~140°F) | -40~60°C (-40~140°F) |
| Environment | Shock Protection | 10 G, half sine | 10 G, half sine | 10 G, half sine |
| Environment | Ingress Protection | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 |

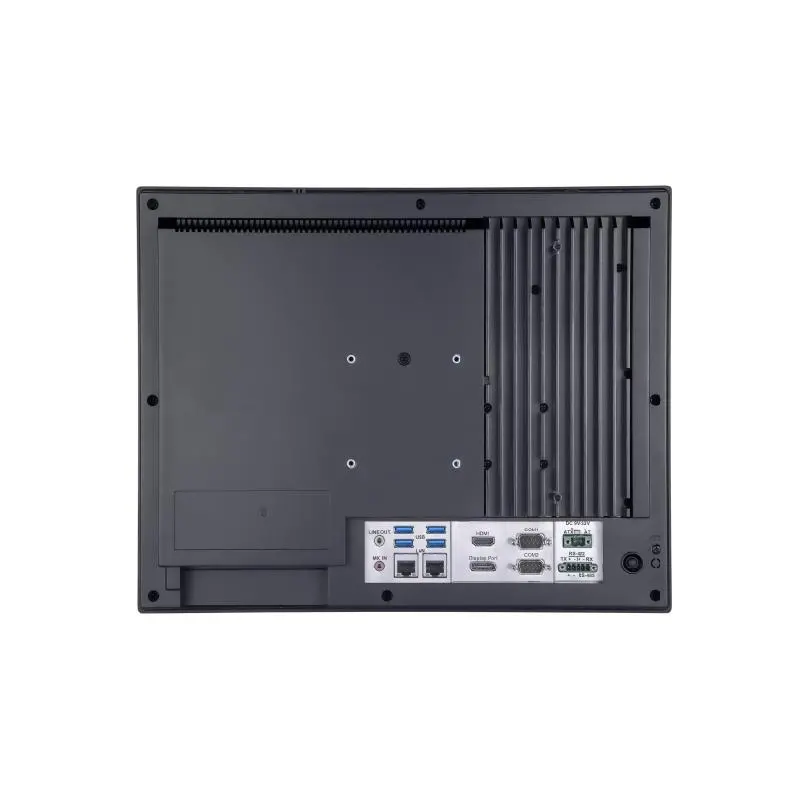

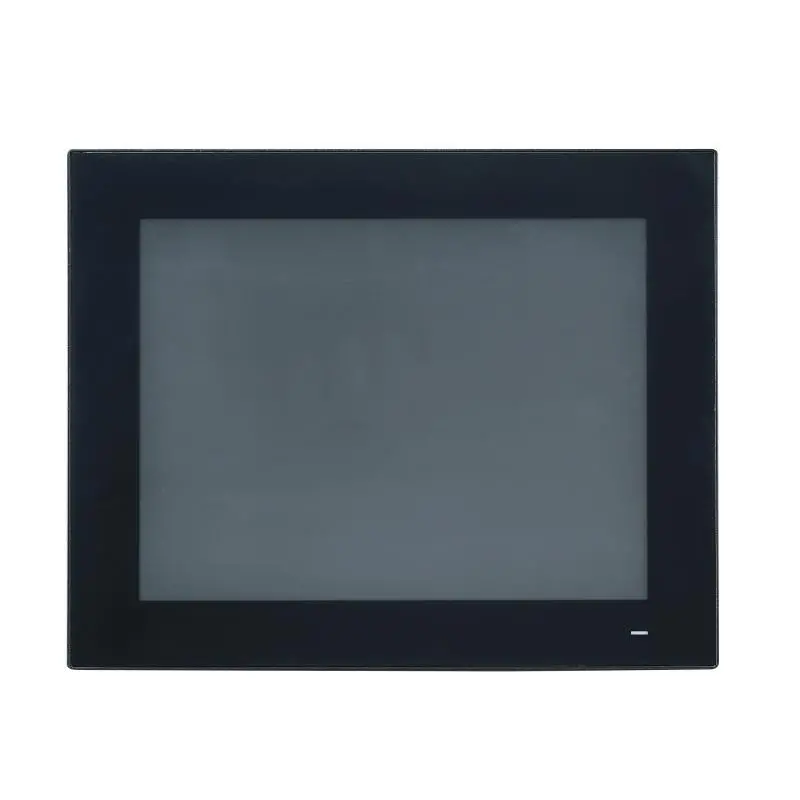

Advantech PPC-415 TGL 15" Fanless Panel PC with Intel® 11th Gen Core™ I7/i5/i3 processor
