| PPC-621W-PTA | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Hardware | Certification | CE, FCC class A, CB/UL, CCC, UKCA, VCCI |
| Hardware | Power Input | 24 VDC ±20% |
| I/O Interface | Power Connector | 1 x 4-Pin Terminal Block |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 21.5" |
| LCD Display | Luminance (cd/m2) | 250 |
| LCD Display | Max. Resolution | 1920 x 1080 |
| LCD Display | Viewing Angle (H/V°) | 178/178 |
| Mechanical | Dimension (W x H x D) | 558 x 349.8 x 108.2 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy, PC + ABS |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 8.4 kg (18.52 lb) |
| Touchscreen | Touch Type | 10-point multi-touch projected capacitive |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Hardware | Storage | 2 x 2.5" SSD/HDD Bay |

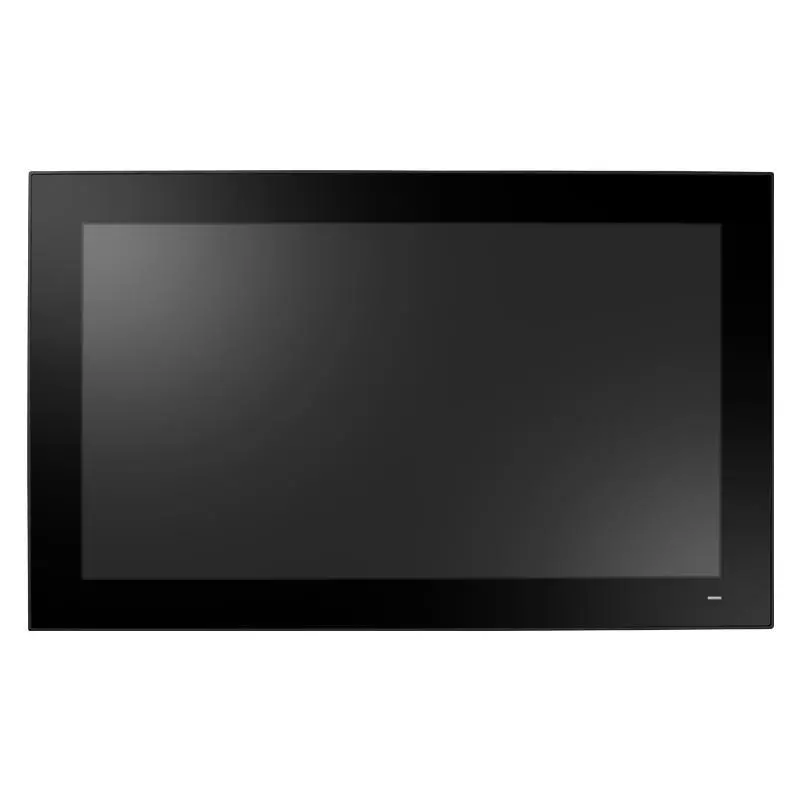

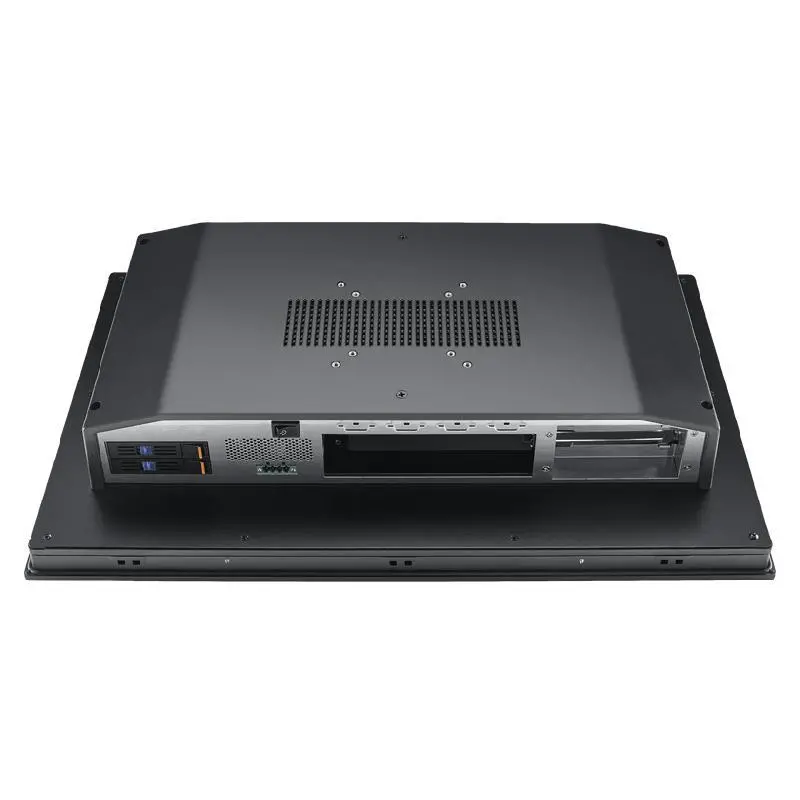

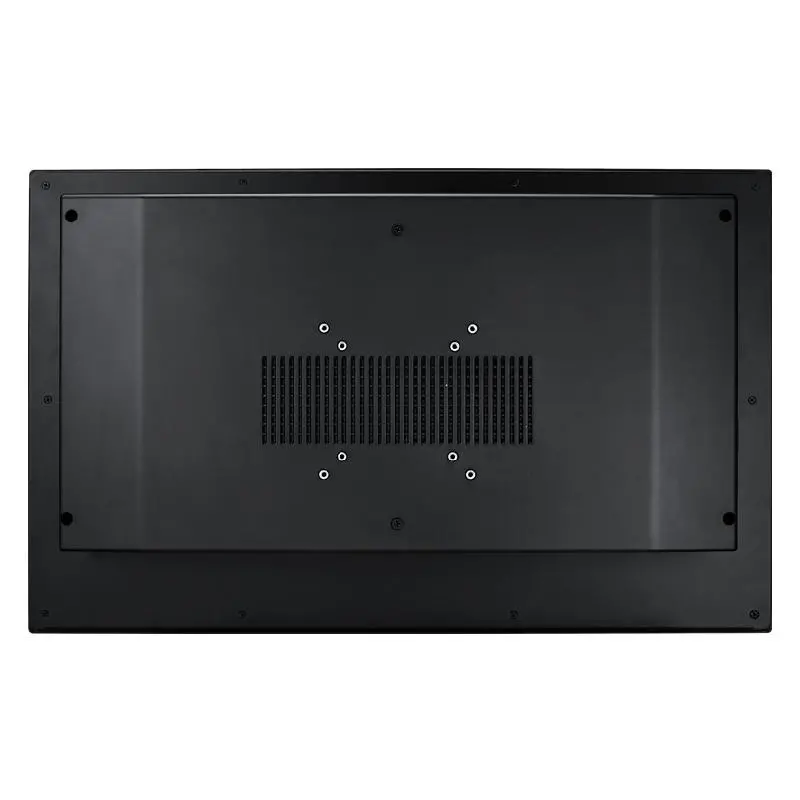

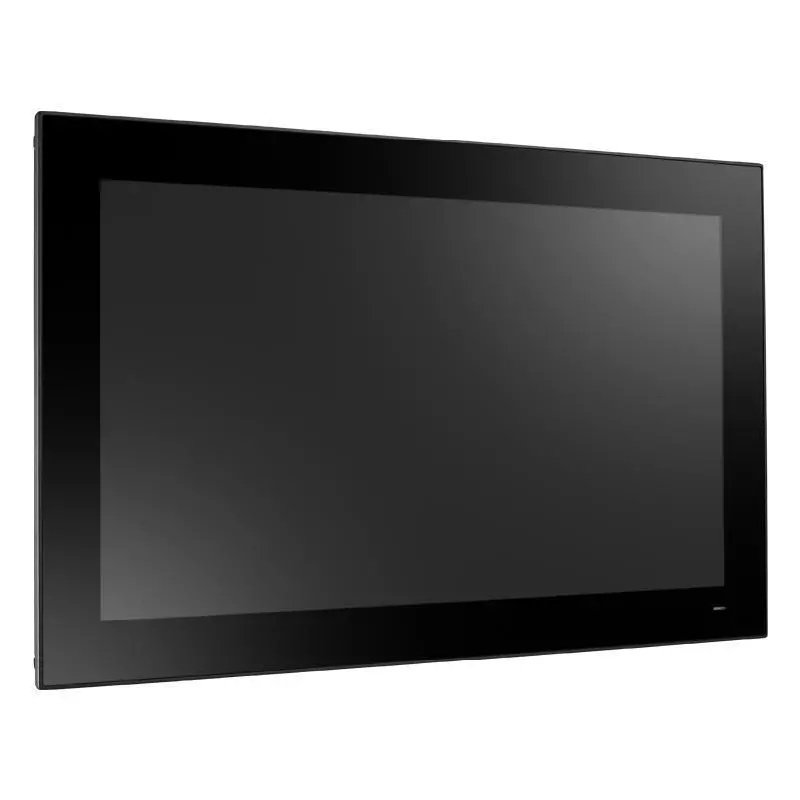

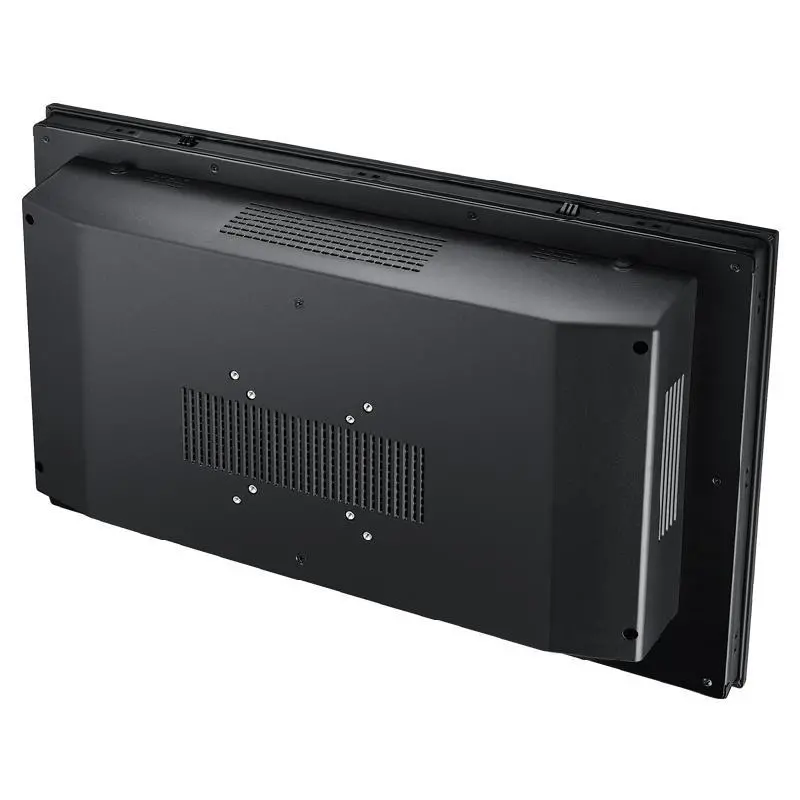

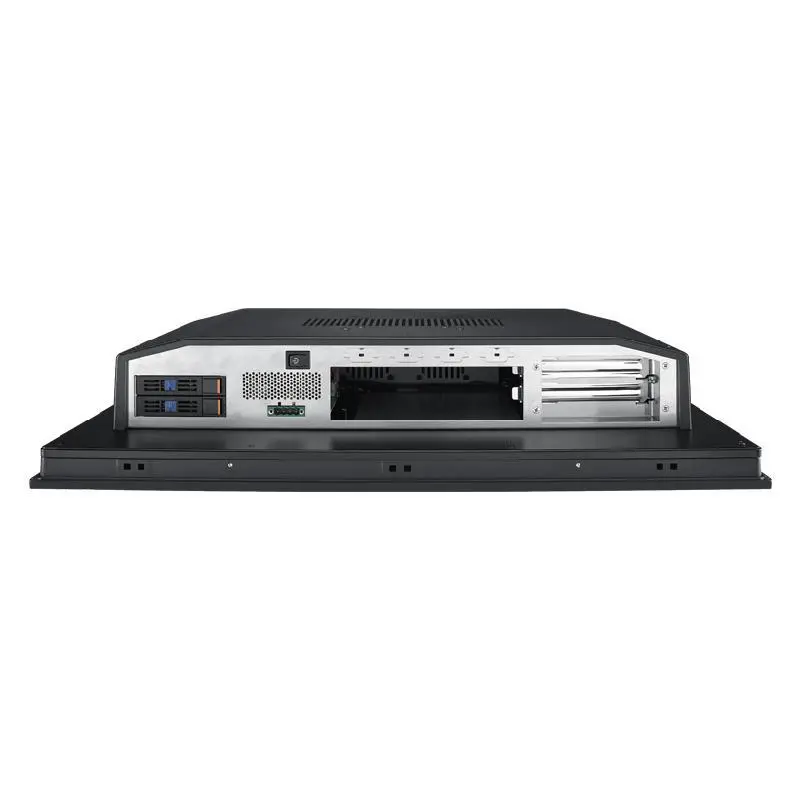

Advantech PPC-621W 21.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards
