| PPC-6151C-RTAE | ||
| Environment | Ingress Protection | Front Panel IP65 |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -30~60 °C (-22~140 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC class A, CB/UL, CCC, UKCA, VCCI |
| Hardware | Power Input | 100~240 VAC |
| I/O Interface | Power Connector | 1 x AC inlet |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 15" |
| LCD Display | Luminance (cd/m2) | 500 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 176/176 |
| Mechanical | Dimension (W x H x D) | 391 x 313 x 104 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy, PC + ABS |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 5.03 kg (11.08 lb) |
| Touchscreen | Touch Type | 5-wire resistive |

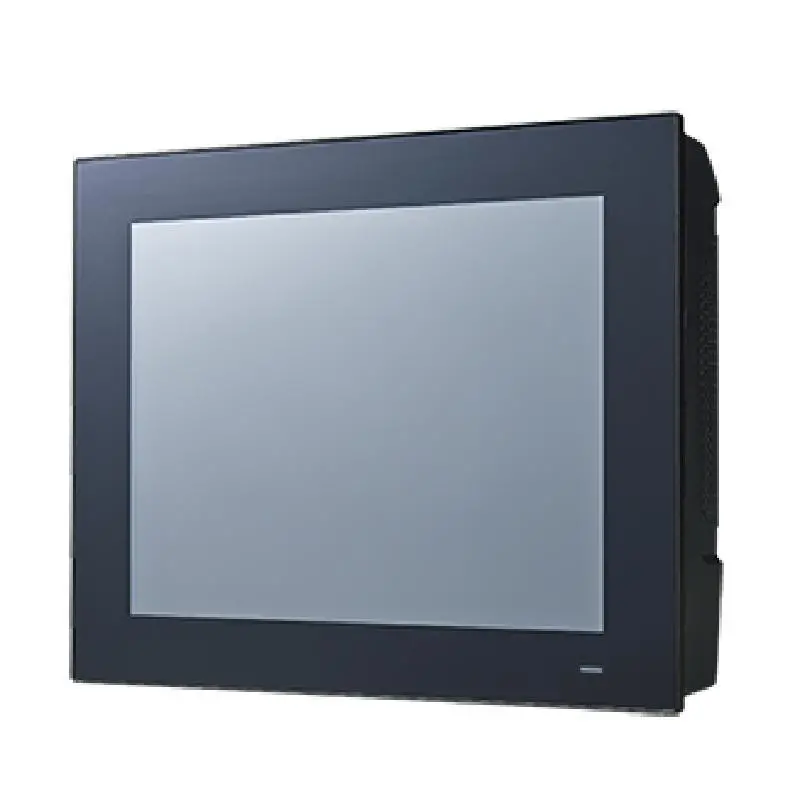

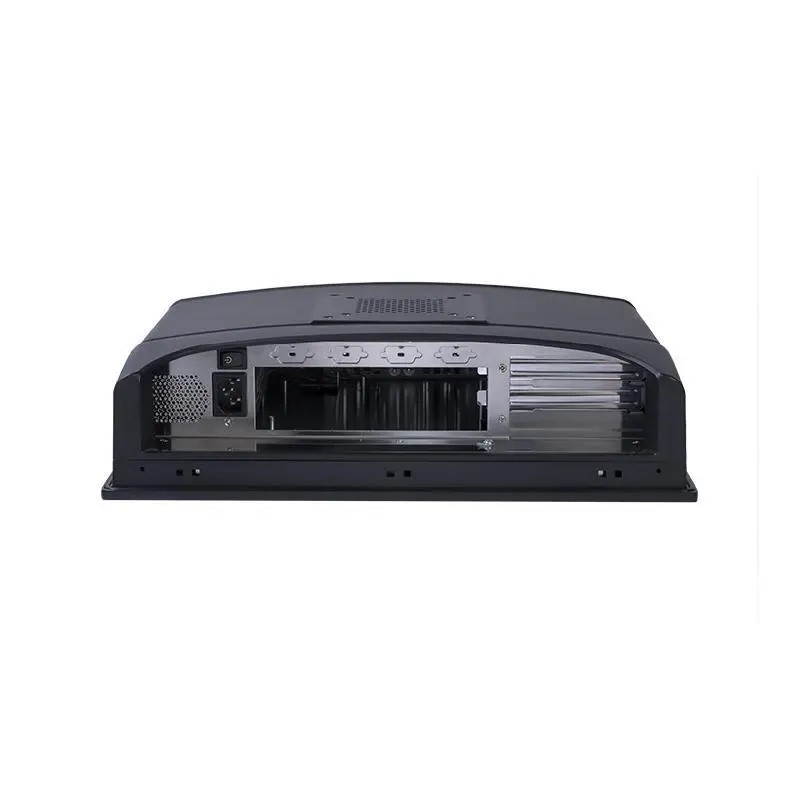

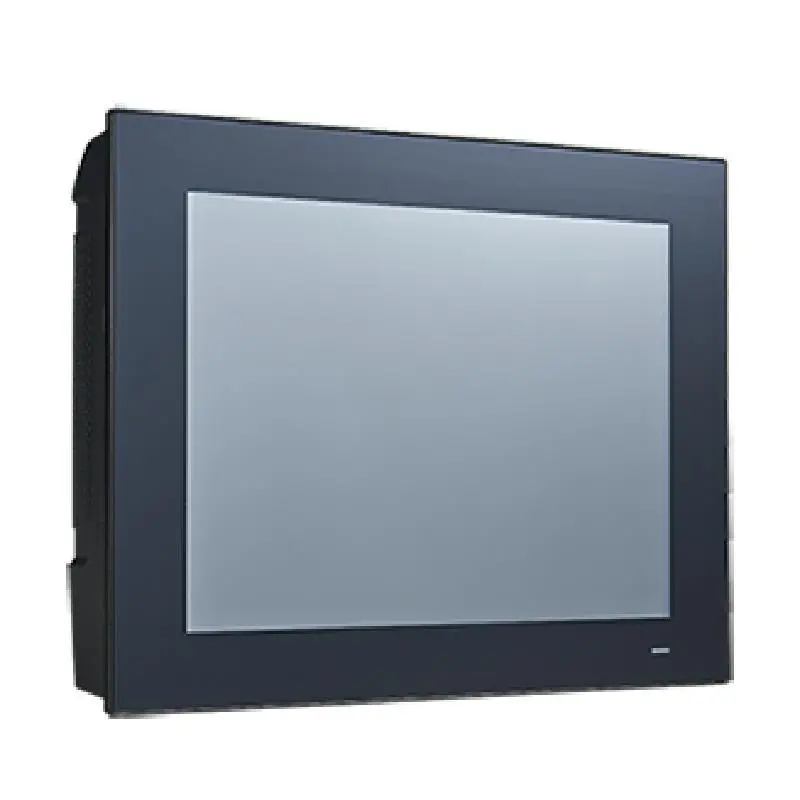

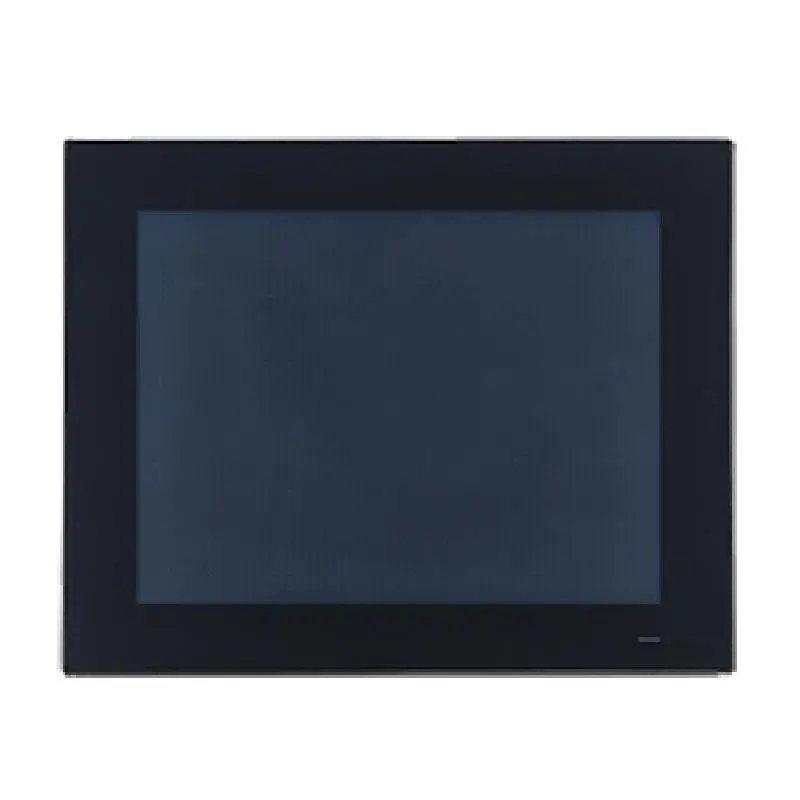

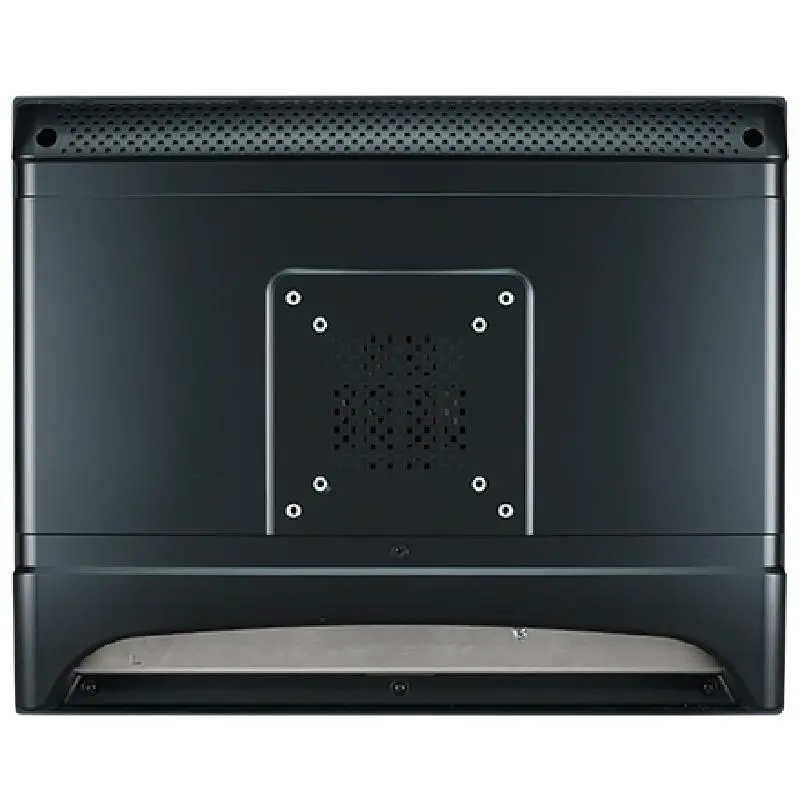

Advantech PPC-6151C 15" Configurable Panel PC Chassis for selectable Mini-ITX Motherboard
