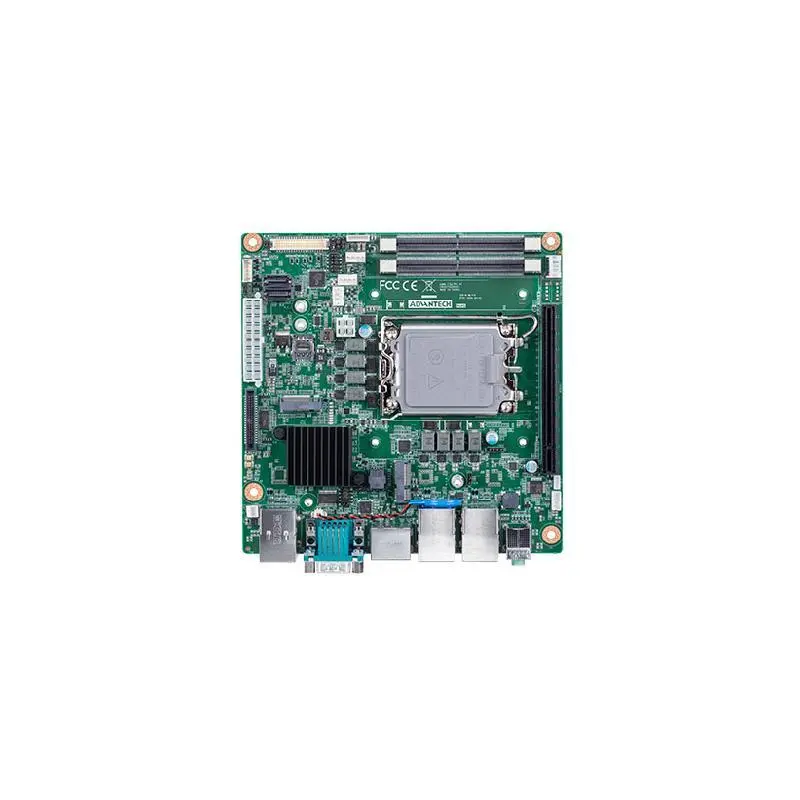

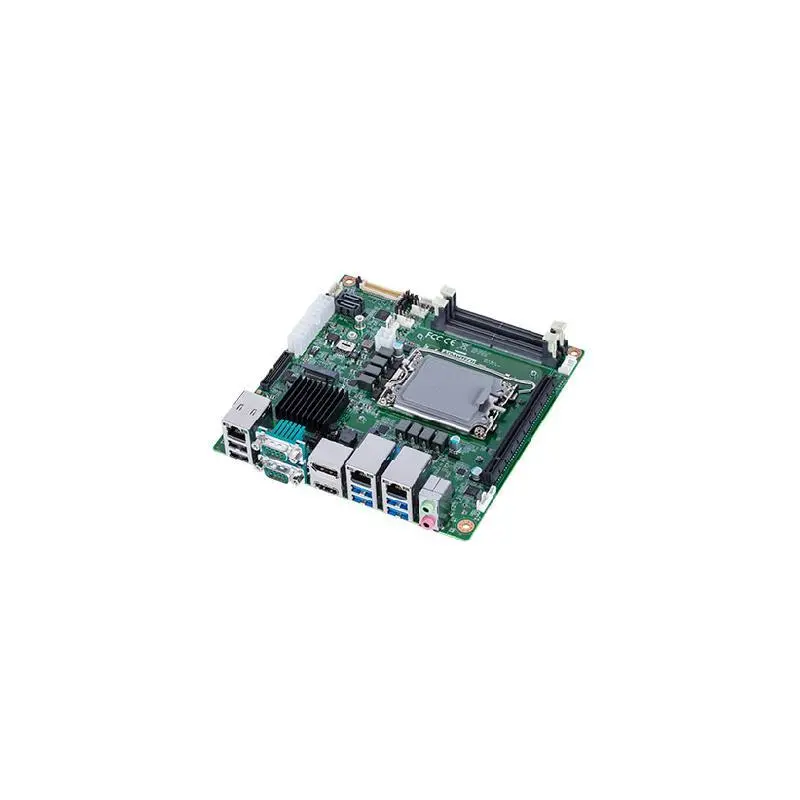

Advantech PPC-MB-620 Mini-ITX M/B support 12th/13th Gen Intel® Core™ processors, H610E, 3 x LAN for PPC-600

Supports Intel® 12/13th Gen Core™ i processor (LGA1700) with Intel Q670E/ H610E chipset

Two 262-pin SO-DIMM up to 64GB DDR5 4800 MHz SDRAM

Supports triple display of DP/HDMI/LVDS

Supports PCIe x16 (Gen 5), 1 x M.2 M key & 1 M.2 E key, 6 USB 3.2

Supports 2 x SATA 3.0 (Raid 0, 1) (only for PCH Q670E)

Supports TPM 2.0

Supports 4 RS-232,1 RS-232/422/485

Supports 1 GPIO(8 channels)

		PPC-MB-620A	PPC-MB-620B
Hardware	CPU	12/13th Gen. Intel® Core™ i/Celeron® processor	12/13th Gen. Intel® Core™ i/Celeron® processor
Hardware	Ethernet	Intel® i226-LM GbE, Intel® i219-LM GbE	Intel® i226-LM GbE, Intel® i219-LM GbE
Hardware	I/O	1 x RS-232, 1 x RS-232/422/485, 4 x USB 3.2, 2 x USB 2.0, 1 x HDMI, 1 x DP, 1 x Line Out, 1 x Mic In	1 x RS-232, 1 x RS-232/422/485, 6 x USB 3.2, 1 x HDMI, 1 x DP, 1 x Line Out, 1 x Mic In
Hardware	LAN	1 x 10/100/1000 Mbps, 2 x 10/100/1000/2500 Mbps	1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Hardware	Memory	2 x DDR5 SO-DIMM Slot	2 x DDR5 SO-DIMM Slot
Hardware	OS Support	Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux	Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
I/O Interface	Audio	Line-Out, Microphone	Line-Out, Microphone
I/O Interface	Displays	1 x DP, 1 x HDMI	1 x DP, 1 x HDMI
I/O Interface	Serial Ports	1 x RS232, 1 x RS-232/422/485, 3 x RS232 (Pin Header), 1 x GPIO (Pin Header)	1 x RS232, 1 x RS-232/422/485, 3 x RS232 (Pin Header), 1 x GPIO (Pin Header)
Mechanical	Dimension (W x H x D)	170 x 170 x 42 mm	170 x 170 x 42 mm
USB Vision	Connector	4 x USB 3.2 Type A, 2 x USB 2.0 Type A	6 x USB 3.2 Type A
