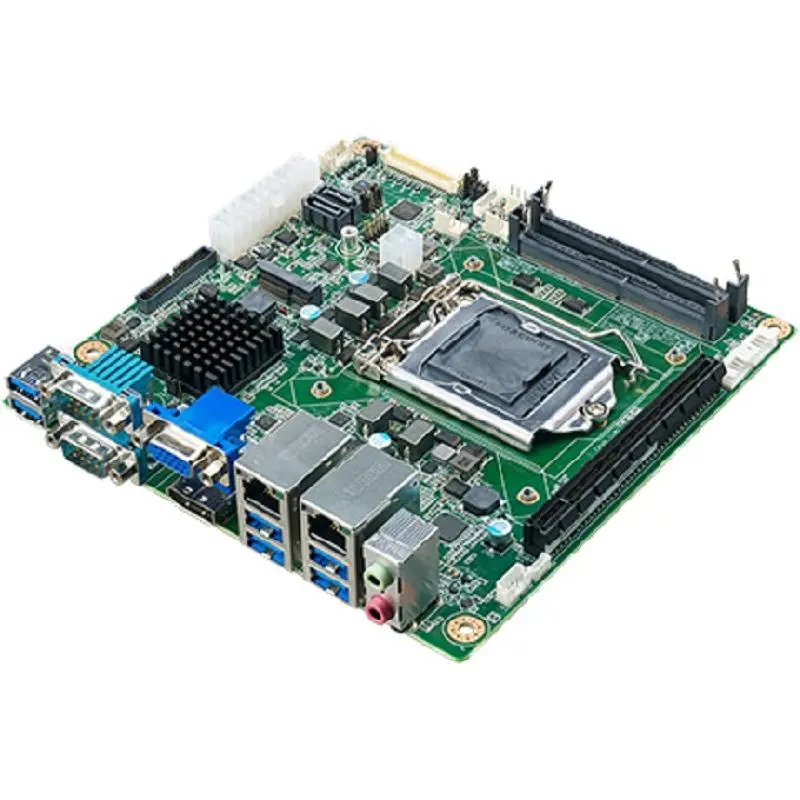

Advantech PPC-MB-610 Intel® 8th & 9th Gen. Core™ i Mini-ITX Motherboard

Supports Intel® 8th & 9th Gen Core™ i processor (LGA1151) with Intel Q370 chipset

Two 260-pin SO-DIMM up to 32GB DDR4 2666 MHz SDRAM

Supports triple display of DP/VGA/LVDS

Supports PCIe x16 (Gen 3), 1 M.2 M key & 1 M.2 E key, 6 x USB 3.1

Supports 2 x SATA 3.0 (Raid 0, 1)

Supports TPM 2.0 (optional)

Supports 4 RS-232,1 RS-232/422/485

Supports 1 GPIO(8 channels)

		PPC-MB-610B
Hardware	CPU	8/9th Gen. Intel® Core™ i/Celeron® Dual-Core
Hardware	Ethernet	Intel® i219-LM GbE, Intel® i225-LM GbE
Hardware	I/O	1 x RS232/422/485, 1 x RS232, 1 x DP, 1 x VGA, 6 x USB 3.1, 1 x Line Out, 1 x Mic In
Hardware	LAN	2 x 10/100/1000 Mbps
Hardware	Memory	2 x DDR4 SO-DIMM Slot
Hardware	OS Support	Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
I/O Interface	Audio	Line-Out, Mic-In
I/O Interface	Displays	1 x DP, 1 x VGA
I/O Interface	Serial Ports	1 x RS232, 1 x RS-232/422/485, 3 x RS232 (Pin Header), 1 x GPIO (Pin Header)
Mechanical	Dimension (W x H x D)	170 x 170 x 42 mm
USB Vision	Connector	6 x USB 3.1 Type A
