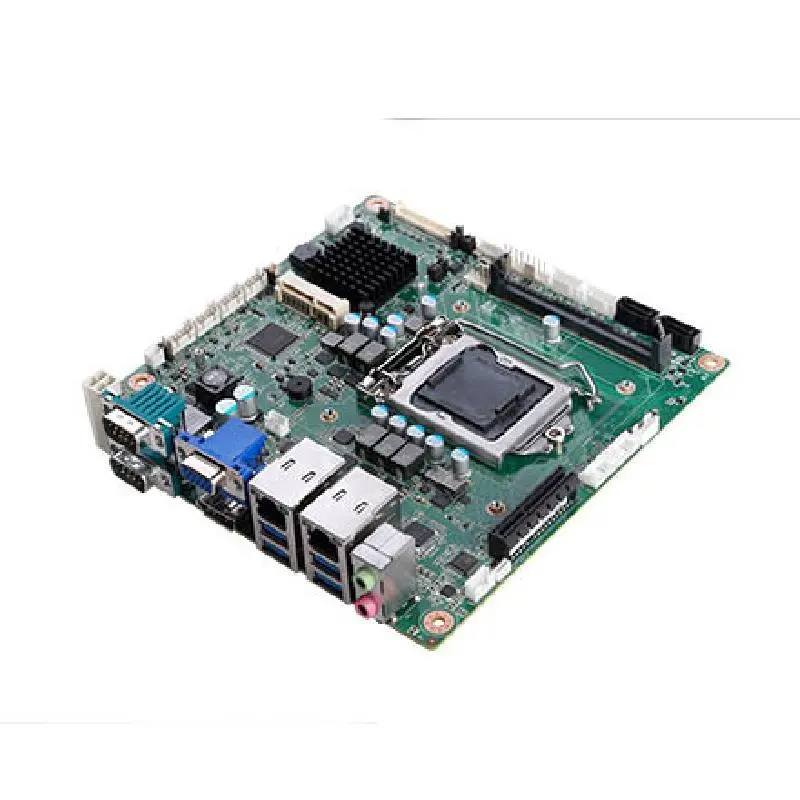

Advantech PPC-MB-8260 Intel® 6th &7th Gen.Core™ i Mini-ITX Motherboard

Supports Intel® 6th & 7th Gen Core™ i processor (LGA1151) with Intel H110 chipset

Supports one 260-pin SO-DIMM of up to 16GB DDR4 2133 MHz

Supports dual display of VGA/DP/LVDS(eDP)

Supports 1 x PCIe x4 (Gen 3) and either 1x Full Size mSATA or Mini PCIe

Supports 4 x USB 3.0 ,2 x USB2.0, 5 x COM ports, 1 x GPIO (8 channels)

		PPC-MB-8260B
Hardware	CPU	6/7th Gen. Intel® Core™ i/Celeron® processor
Hardware	Ethernet	Realtek® 8119i GbE
Hardware	Expansion	1 x Full-size mSATA or mini PCIe, 1 x PCIe x4 slot
Hardware	I/O	1 x RS232/422/485, 1 x RS232, 1 x DP, 1 x VGA, 4 x USB 3.0, 1 x Line Out, 1 x Mic In
Hardware	LAN	2 x 10/100/1000 Mbps
Hardware	Memory	1 x DDR4 SO-DIMM Slot
Hardware	OS Support	Microsoft® Windows 7, Microsoft® Windows 8.1, Microsoft® Windows 10
I/O Interface	Displays	1 x DP
I/O Interface	Serial Ports	1 x RS232, 1 x RS-232/422/485, 3 x RS232 (Pin Header), 1 x GPIO (Pin Header)
Mechanical	Dimension (W x H x D)	170 x 170 x 37 mm
USB Vision	Connector	4 x USB 3.0 Type A
I/O Interface	Audio	Line-Out, Mic-In
