| PPC-IPS-AU | ||
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Storage Temperature | -20~50 °C (-4~122 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Hardware | Certification | CE, FCC class A, CB/UL, UKCA |
| Hardware | I/O | 1 x PS_ON, 1 x RS-232 |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| Mechanical | Dimension (W x H x D) | 151.8 x 125 x 37.2 mm |
| Mechanical | Enclosure | SECC |

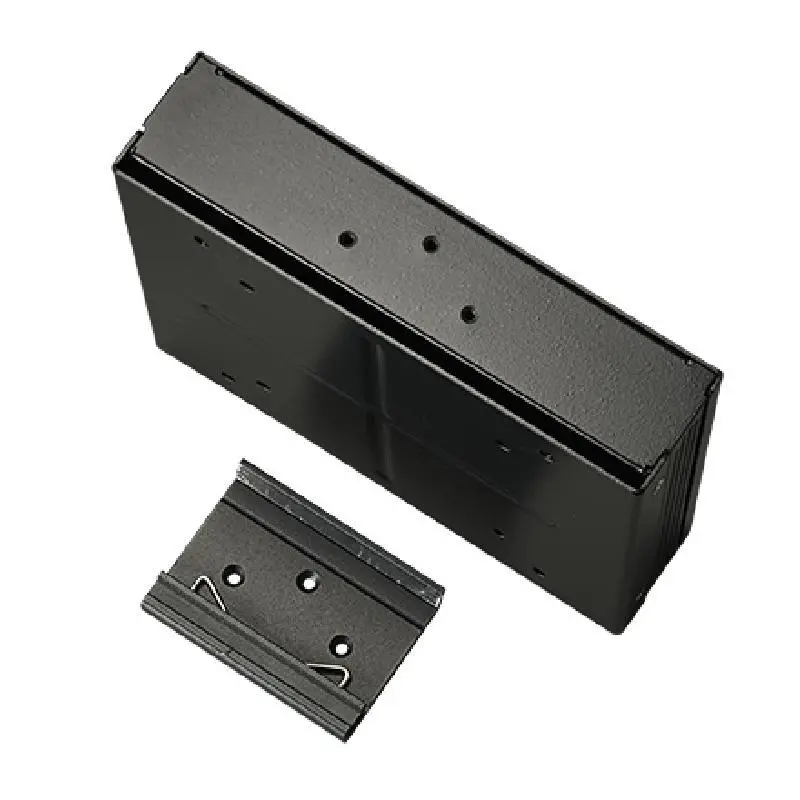

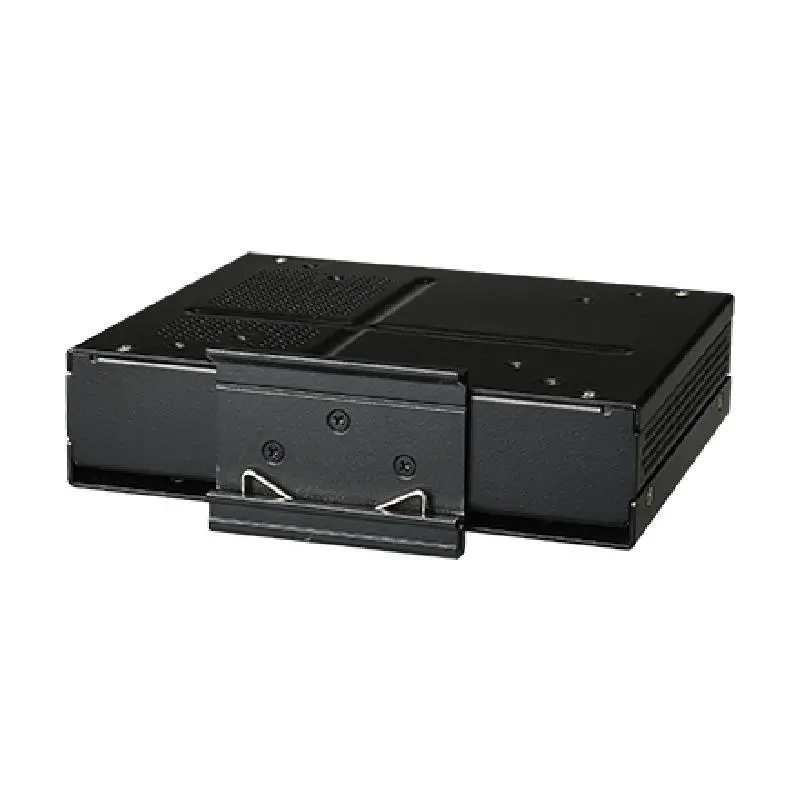

| Mechanical | Mounting | VESA, DIN-rail |
| Power Requirements | Input Voltage | 12~30 VDC |

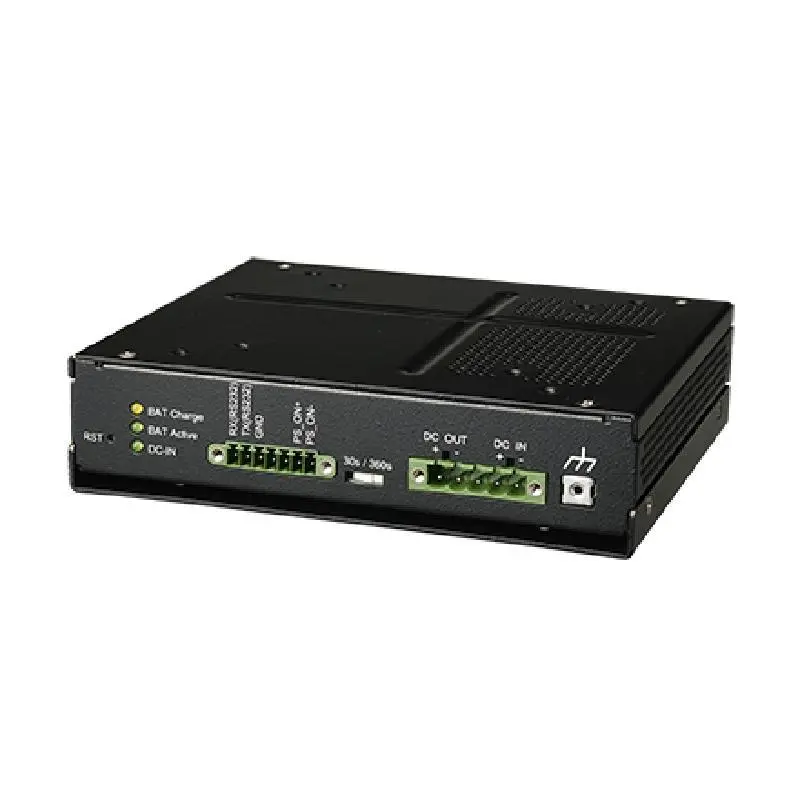

Advantech PPC-IPS 12~30 V DC input/24 V DC output. Uninterruptible Power Supply Module
