| ECU-P1524PE-GAE | ||
| Environment | Operating Temperature | -25~70 °C (-13~158 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| General | Bus Interface | 1 x PCIe x1 |
| General | Connectors | 2 x SFP, 1 x RJ45, 1 x 50-pin SCSI female connector |
| Hardware | Certification | CE, FCC class A, IEC-61850-3 |
| Hardware | Ethernet | Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az |
| Hardware | Power Consumption | 5 W @ 5 VDC, 2W @ 3.3 VDC |
| Mechanical | Dimensions (L x H) | 185 x 110 mm |

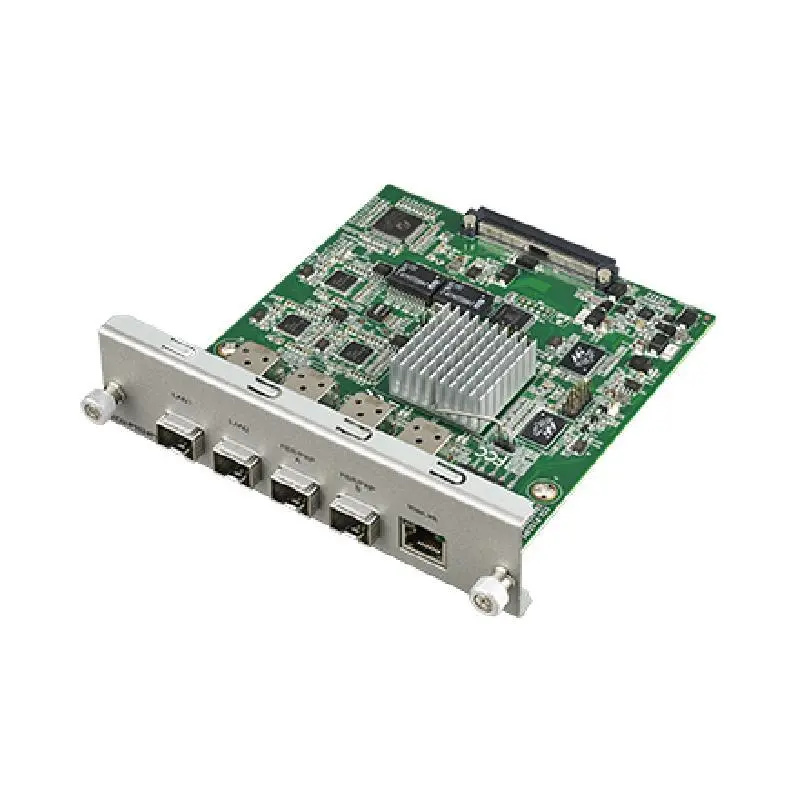

Advantech ECU-P1524PE 2-port SFP Ethernet Card with HSR/PRP
