| EKI-9226G-20FMI-AE | ||
| Certification | EMC | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5), EN 61000-6-4 |
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | - |
| Certification | Substation | IEC-61850-3 |
| Certification | Trackside | EN 50121-4 |
| Ethernet Communication | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Safety | UL 60950-1 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Environment | Relative Humidity | 5~95% |
| Environment | Operating Humidity | - |
| Environment | Temperature (Max. Operating) | 85°C (185°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Transmission Distance | Depends on fiber module |
| Ethernet Communication | RJ-45 Port Connector Type | - |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | RJ-45 Port Number | 6 |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Port Number | 20 |
| Ethernet Communication | Fiber Port Supports VDSL | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Mechanism | Dimensions (W x H x D) | 438 x 44 x 315.2 mm |
| Mechanism | Enclosure (Metal) | Metal shell |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Rack Mount) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | - |
| Mechanism | Weight | 6.5 kg |
| MTBF | Method | Telcordia, GB |
| MTBF | Time | - |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| Power | Power Connector Type | - |
| Power | Power Consumption | 35W (system) |
| Power | Power Input (Battery) | - |
| Power | Power Input (DC) | - |
| Power | Power Input (PoE) | - |
| Power | Power Operating Current | 0.72A @ 48 VDC (system) |
| Power | Power Operating Voltage | - |
| Power | Redundant Dual Inputs | - |
| Protection | Reverse Polarity | Present |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 52Gbps |
| Warranty | Warranty Period | 5 years |

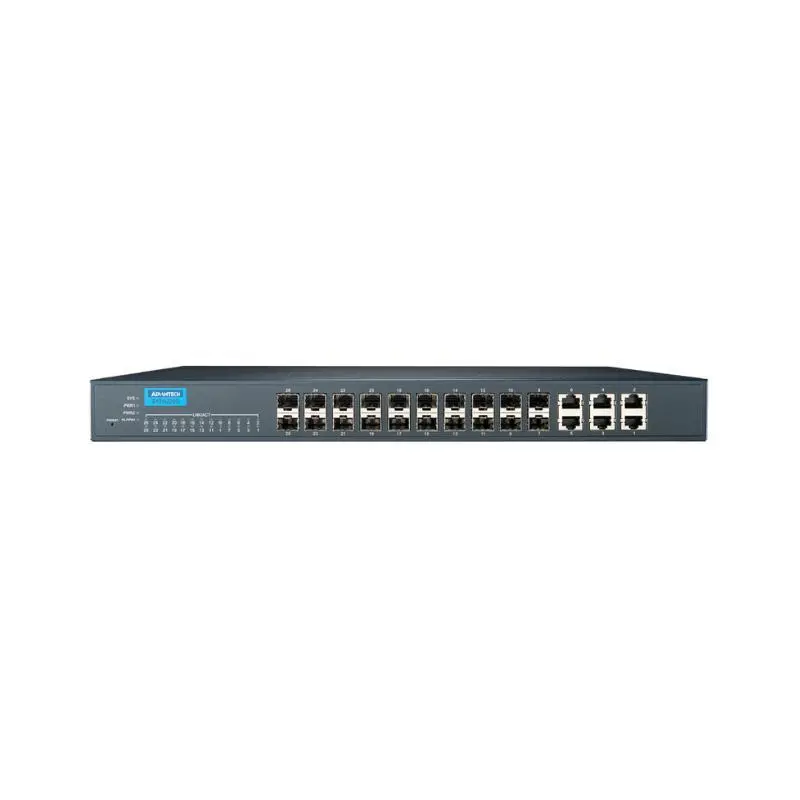

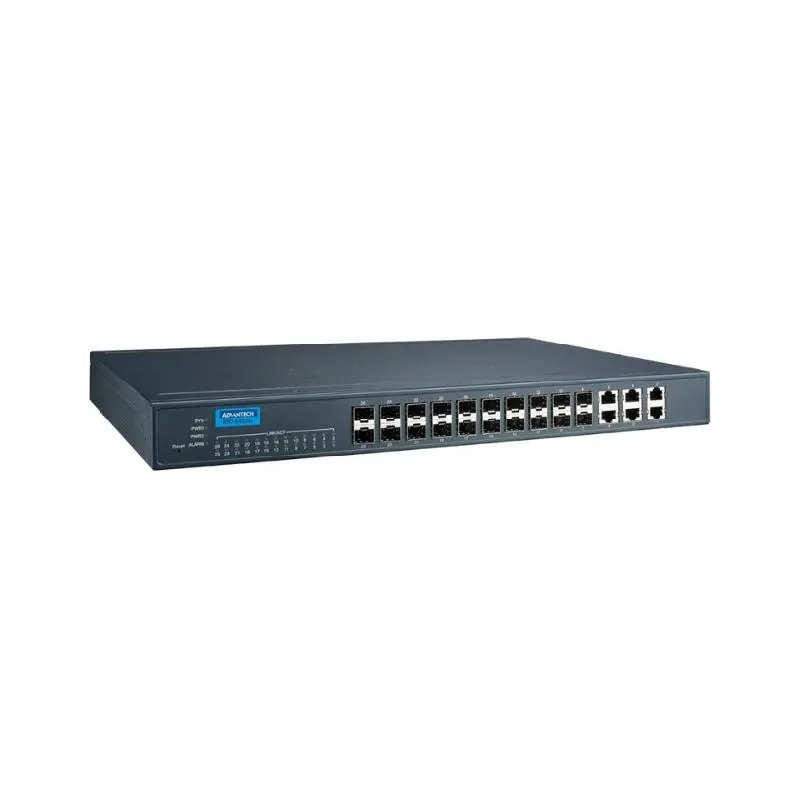

Advantech EKI-9226G-20FMI IEC61850-3 20G SFP + 6GE Managed Ethernet Switch, 48DC
