| EKI-9228G-8COI-AE | ||
| Certification | EMC | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5) |
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | - |
| Certification | Substation | IEC-61850-3 |
| Certification | Trackside | - |
| Ethernet Communication | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Safety | UL 61010 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Environment | Relative Humidity | 10~95% |
| Environment | Operating Humidity | - |
| Environment | Temperature (Max. Operating) | 85°C (185°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Transmission Distance | - |
| Ethernet Communication | RJ-45 Port Connector Type | 16 x RJ-45 + 4 x SFP+ 8 x RJ-45/SFP combo ports |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | RJ-45 Port Number | 16 |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | Fiber Port Supports VDSL | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | 8 |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Mechanism | Dimensions (W x H x D) | 442 x 44 x 352 mm |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Rack Mount) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | - |
| Mechanism | Weight | 6.5 kg |
| MTBF | Method | Telcordia(Relax), GB |
| MTBF | Time | - |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| Power | Power Connector Type | 3-pin removable screw terminal (power), 4-pin removable screw terminal (relay ) |
| Power | Power Consumption | 19.24W (system) |
| Power | Power Input (AC) | 90 ~ 264 VAC |
| Power | Power Input (Battery) | - |
| Power | Power Input (DC) | Dual 90 ~ 264 VAC ; 88 ~ 370 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Operating Current | 0.17A @ 110VAC (system) |
| Power | Power Operating Voltage | - |
| Power | Redundant Dual Inputs | - |
| Protection | Reverse Polarity | Present |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 16K |
| Switch Properties | Packet Buffer Size | 1.5M bit |
| Switch Properties | Switch Fabric Speed | 56Gbps |
| Warranty | Warranty Period | 5 years |

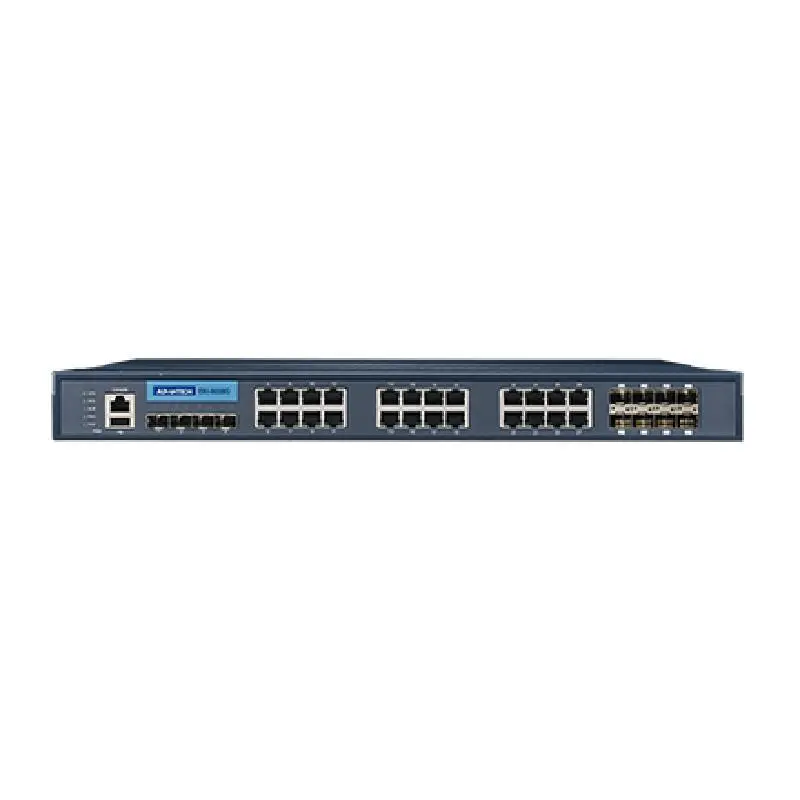

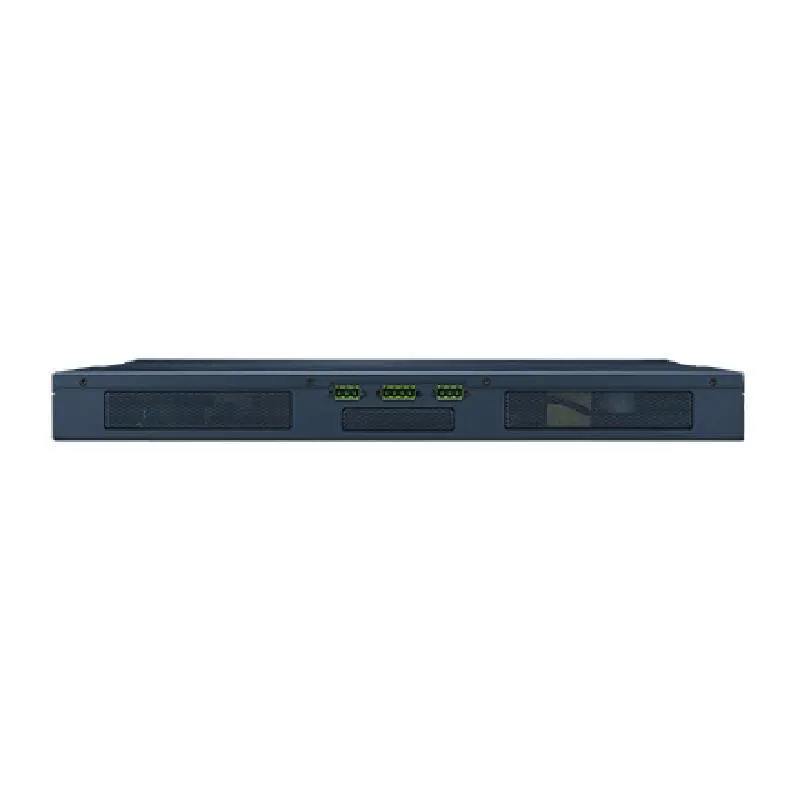

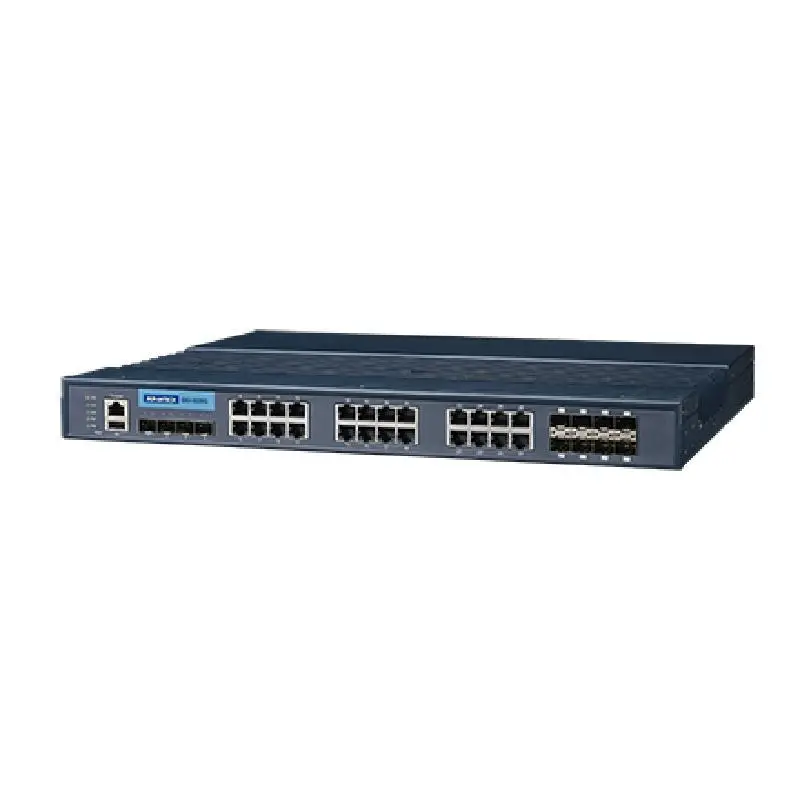

Advantech EKI-9228G-8COI IEC61850-3 20GE + 8GE Combo L2 Managed Switch, 90 ~ 264VAC/88 ~ 370VDC
