| ADAM-6150EI-AE | ||
| Communications | Interface | Ethernet |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -10~70 °C (14~158 °F) |
| General | Connectors | 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal |
| General | Protocol | Ethernet/IP |
| Isolated Digital Input | Channels | 8 |
| Isolated Digital Input | Input Voltage | Dry Contact Logic level 0: open Logic level 1: close to GNDWet Contact Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC |
| Isolated Digital Output | Channels | 7 |
| Isolated Digital Output | Output Type | Sink |
| Isolated Digital Output | Output Voltage | 8~35 VDC |
| Isolated Digital Output | Sink Current | 100 mA max./channel |
| Power Requirements | Input Voltage | 10~30 VDC |

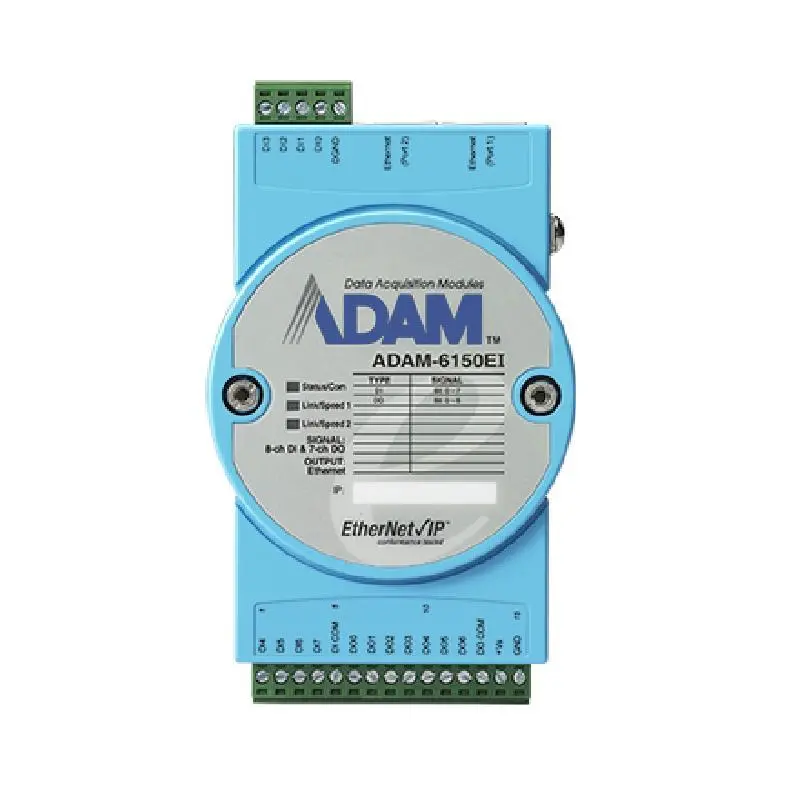

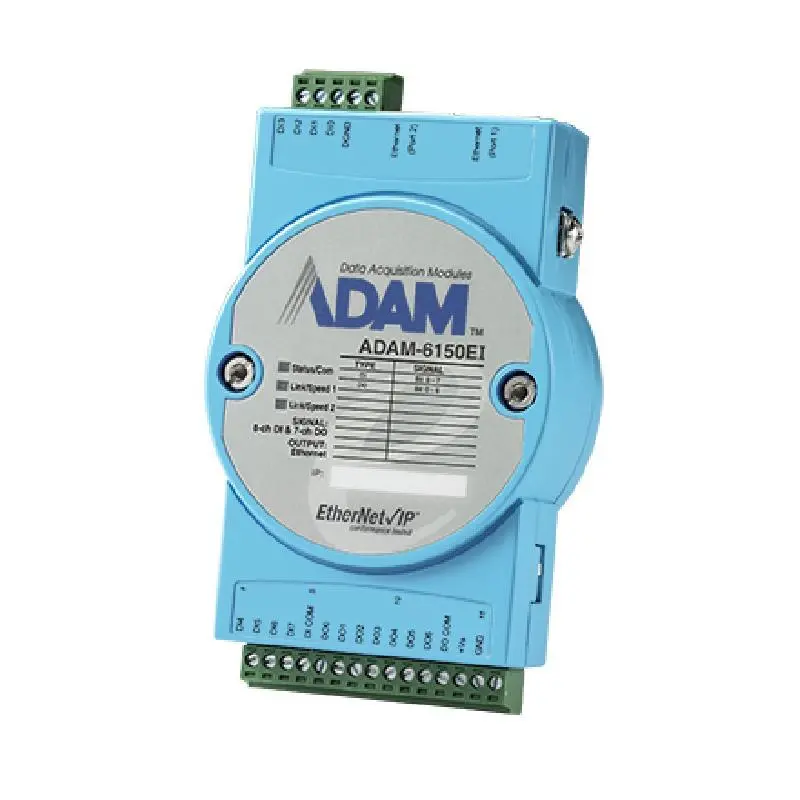

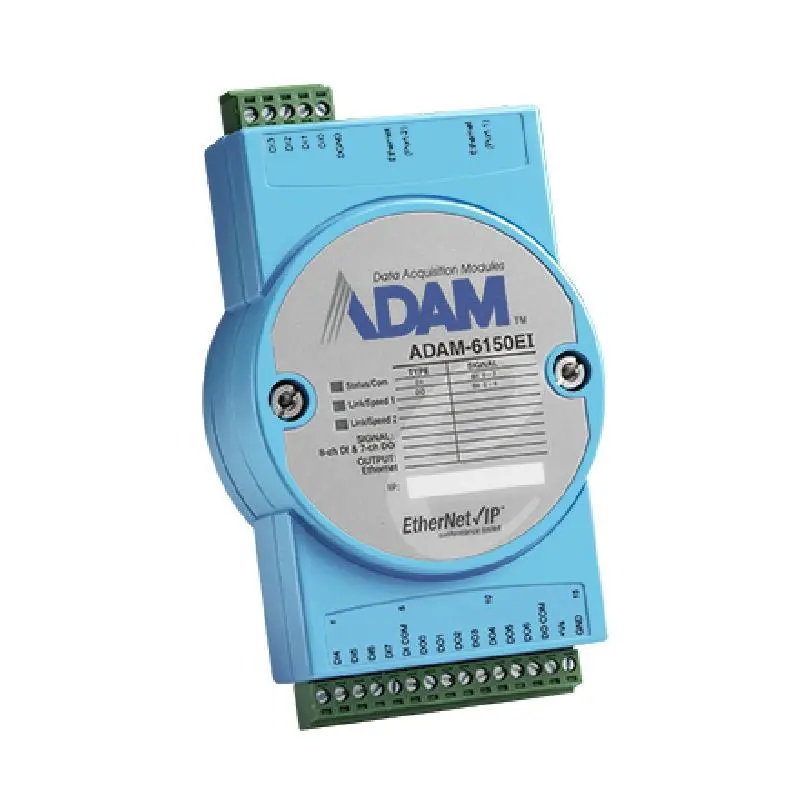

Advantech ADAM-6150EI 8DI/7DO EtherNet/IP Fieldbus Remote I/O
