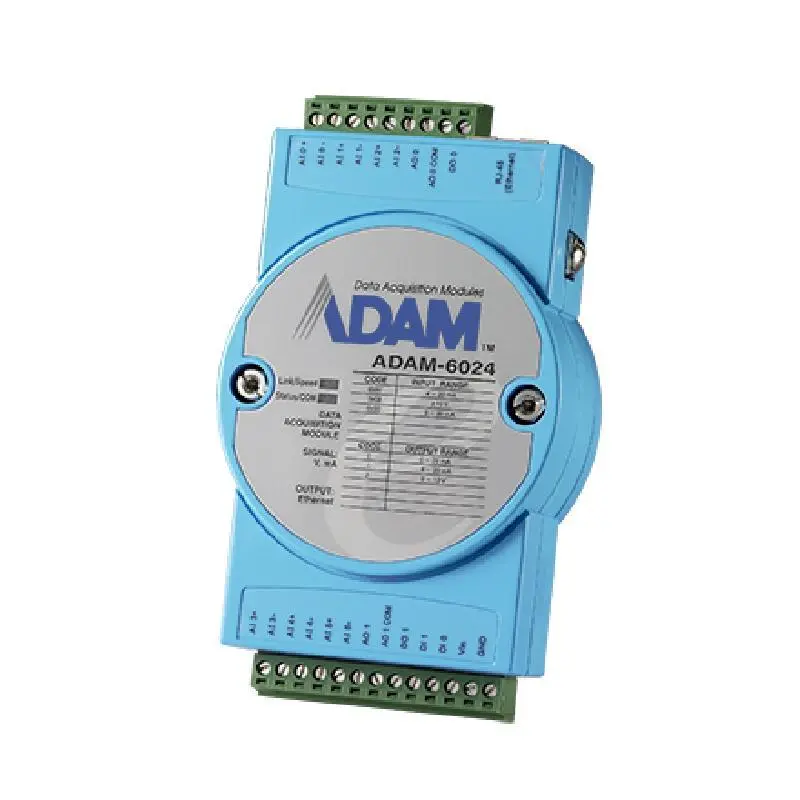

Advantech ADAM-6024 6AI/2AO/2DI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

6ch analog input/2ch analog output/2ch digital input/2ch digital output

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII

GCL to perform basic logic control rules

Peer-to-Peer function to map I/O status

Watchdog timer to recover the system

Isolation protection: 2000VDC

Built-in web server

		ADAM-6024-D
Analog Input	Channels	6
Analog Input	Input Range	±10 V, 0~20 mA, 4~20 mA
Analog Input	lnput Type	V, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	10 S/s (sum)
Analog Output	Channels	2
Analog Output	Output Ranges	0~10 V, 0~20 mA, 4~20 mA
Analog Output	Output Type	V, mA
Analog Output	Resolution	12-bit
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Input	Channels	2
Isolated Digital Input	Input Voltage	Dry Contact Logic level 0: close to GND Logic level 1: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Output	Channels	2
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	0~40 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
