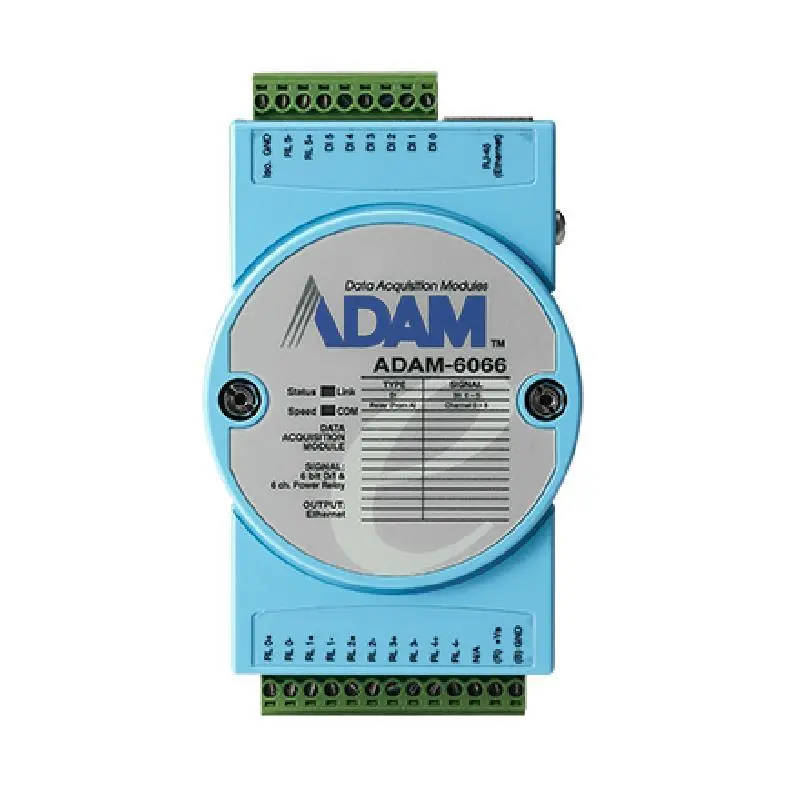

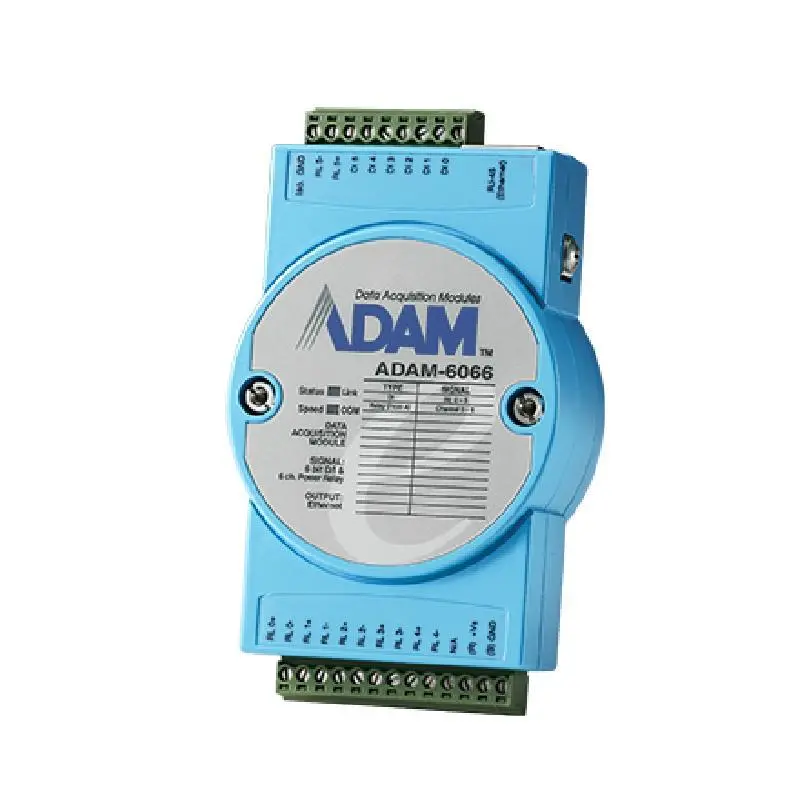

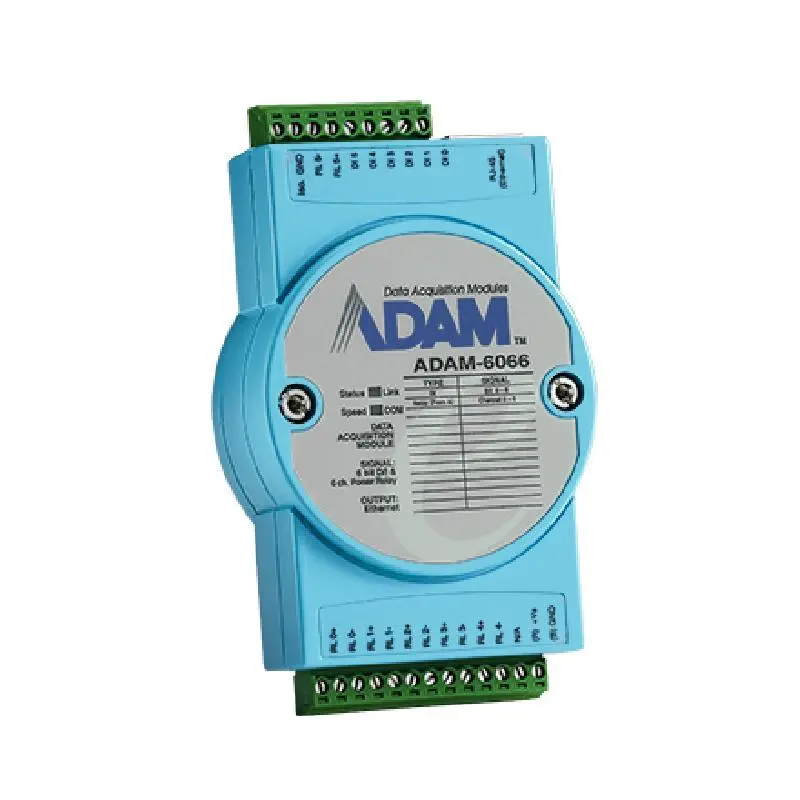

Advantech ADAM-6066 6-Pwer Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O

I/O:6ch relay/6ch digital input(counter)

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII

GCL to perform basic logic control rules

Peer-to-Peer function to map I/O status

Cloud access: Data update to Azure

Built-in web server

Watchdog timer to recover the system

		ADAM-6066-D
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Input	Channels	6
Isolated Digital Input	Input Voltage	Dry Contact Logic level 0: close to GND Logic level 1: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Power Requirements	Input Voltage	10~30 VDC
Relay Output	Channels	6
Relay Output	Contact Rating (Resistive)	3 A @ 30 VDC, 5 A @ 250 VAC
Relay Output	Relay Type	1 x Form A
Counter/Encoder Input	Channels	8
Counter/Encoder Input	Max. Input Frequency	3 kHz
