| ADAM-6018+-D | ||
| Communications | Interface | Ethernet |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| General | Connectors | 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal |
| General | Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command |
| Power Requirements | Input Voltage | 10~30 VDC |
| Thermocouple Input | Channels | 8 |
| Thermocouple Input | Sample Range | 10 S/s (sum) |
| Thermocouple Input | Temperature Range | Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C) |

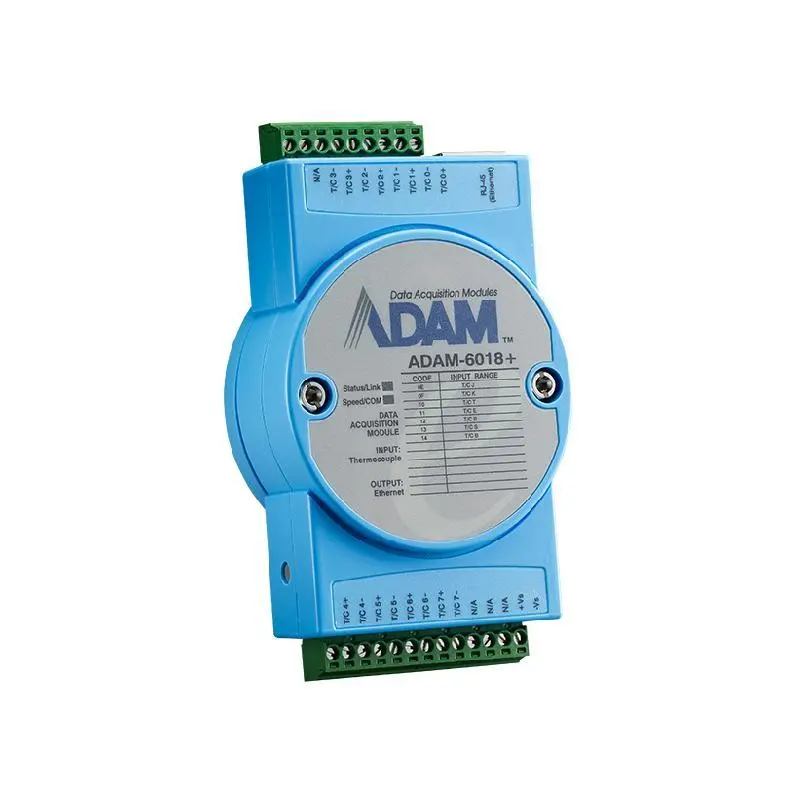

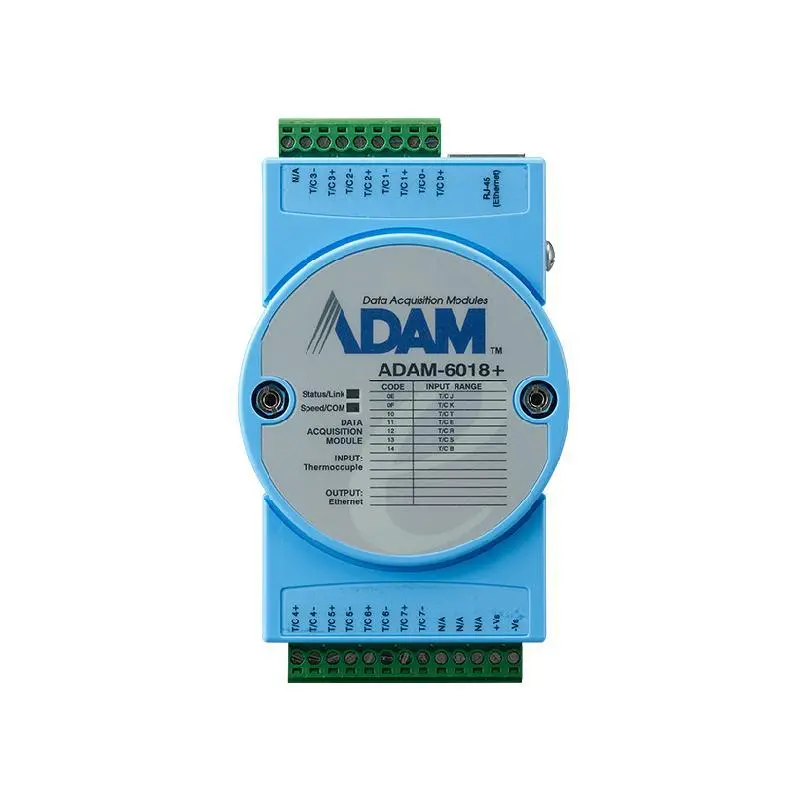

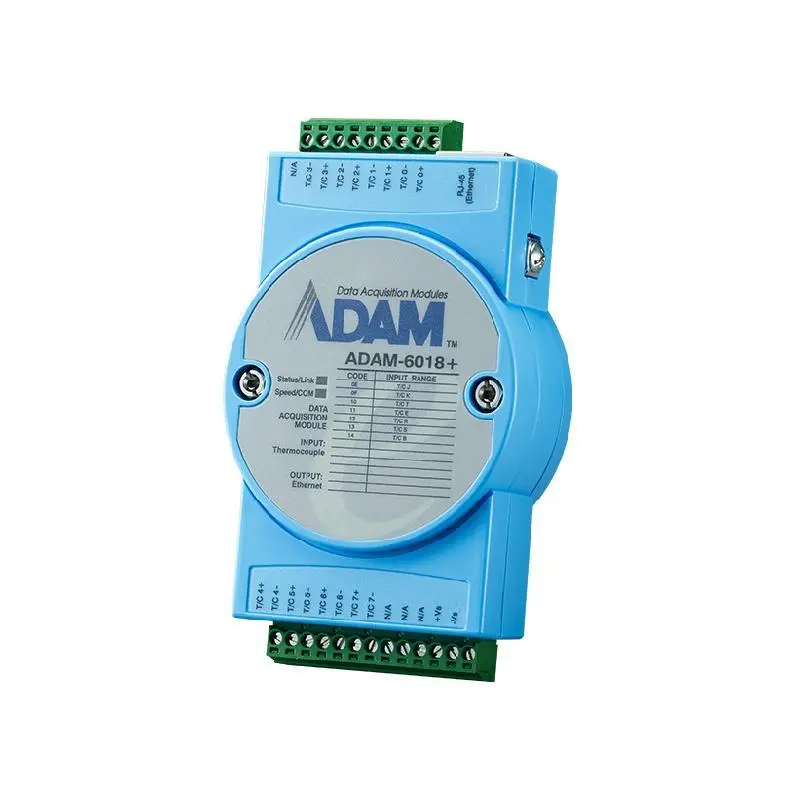

Advantech ADAM-6018+ 8-Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O
