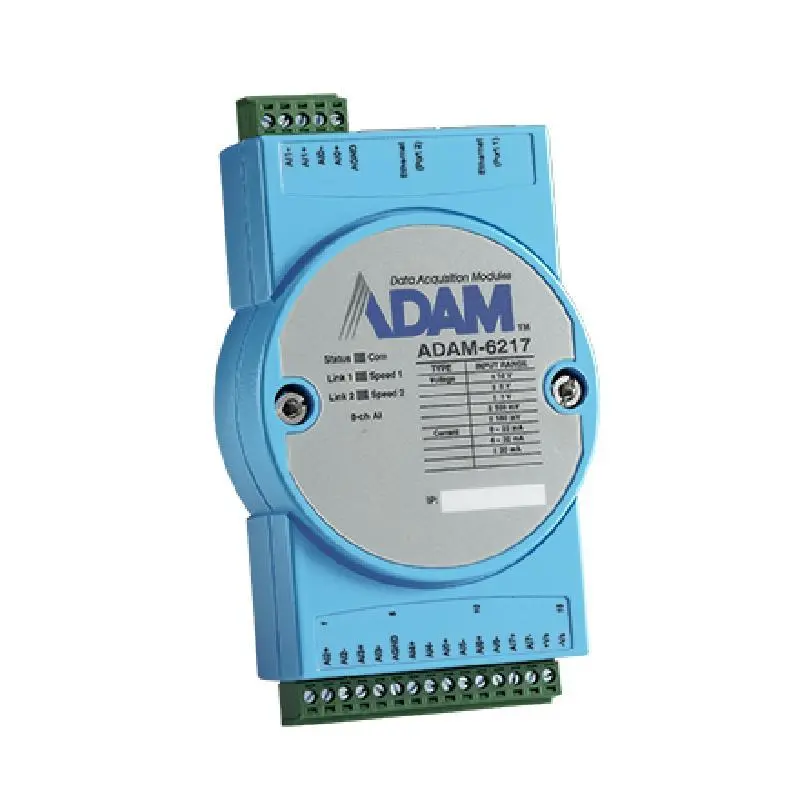

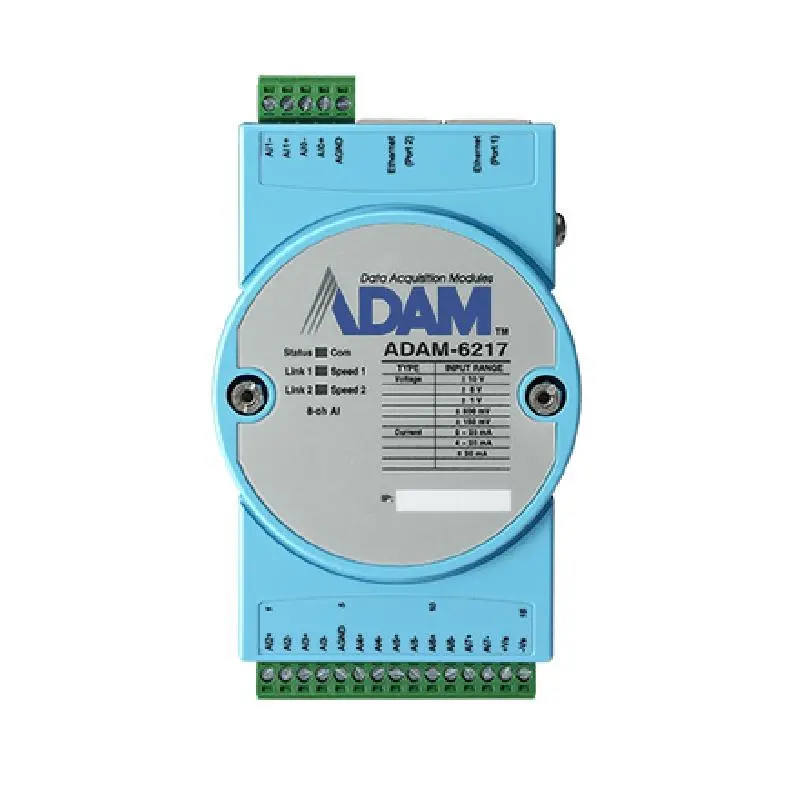

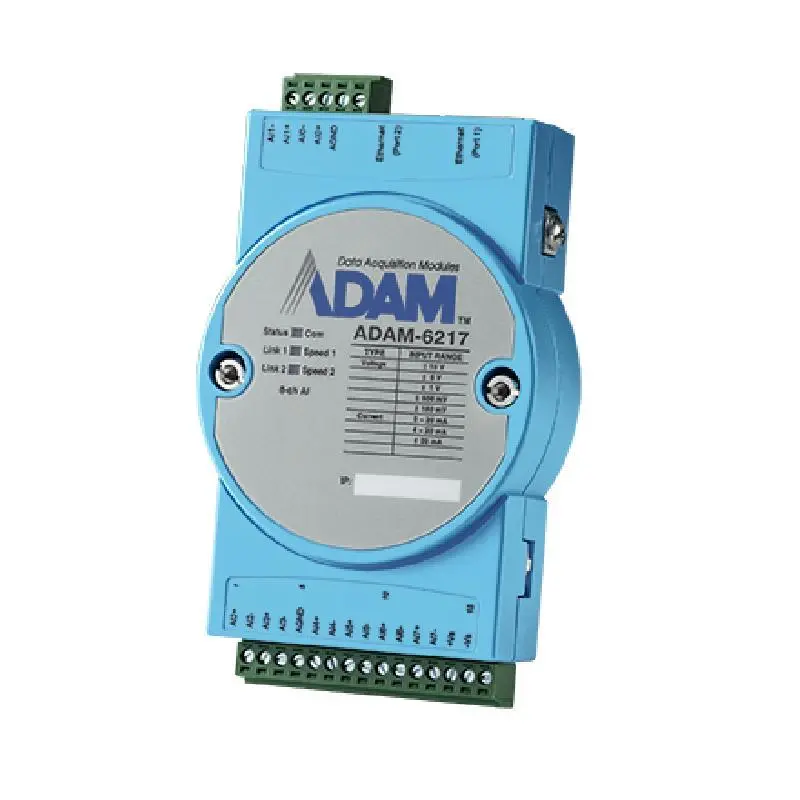

Advantech ADAM-6217 8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O

8ch analog input(voltage or current)

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII

GCL to perform basic logic control rules

Cloud access: Data update to Azure

Auto-bypass function to ensure daisy-chain data transmission

Peer-to-Peer function to map I/O status

Built-in web server

Watchdog timer to recover the system

		ADAM-6217-B
Analog Input	Channels	8
Analog Input	Input Range	±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA
Analog Input	lnput Type	V, mV, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	10 S/s (sum)
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Power Requirements	Input Voltage	10~30 VDC
