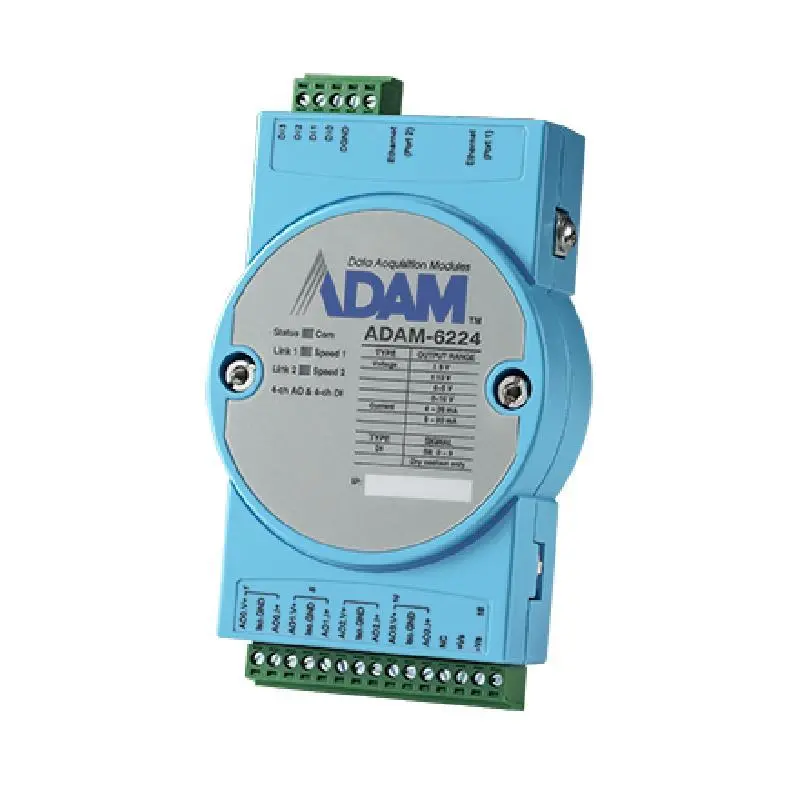

Advantech ADAM-6224 4AO/4DI IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

4ch analog output/4ch digital input

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII

GCL to perform basic logic control rules

Cloud access: Data update to Azure

Auto-bypass function to ensure daisy-chain data transmission

Peer-to-Peer function to map I/O status

Built-in web server

Watchdog timer to recover the system

		ADAM-6224-B
Analog Output	Channels	4
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Analog Output	Output Type	V, mA
Analog Output	Resolution	12-bit
Communications	Interface	Ethernet
Digital Input	Channels	4
Digital Input	Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: open
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Power Requirements	Input Voltage	10~30 VDC
