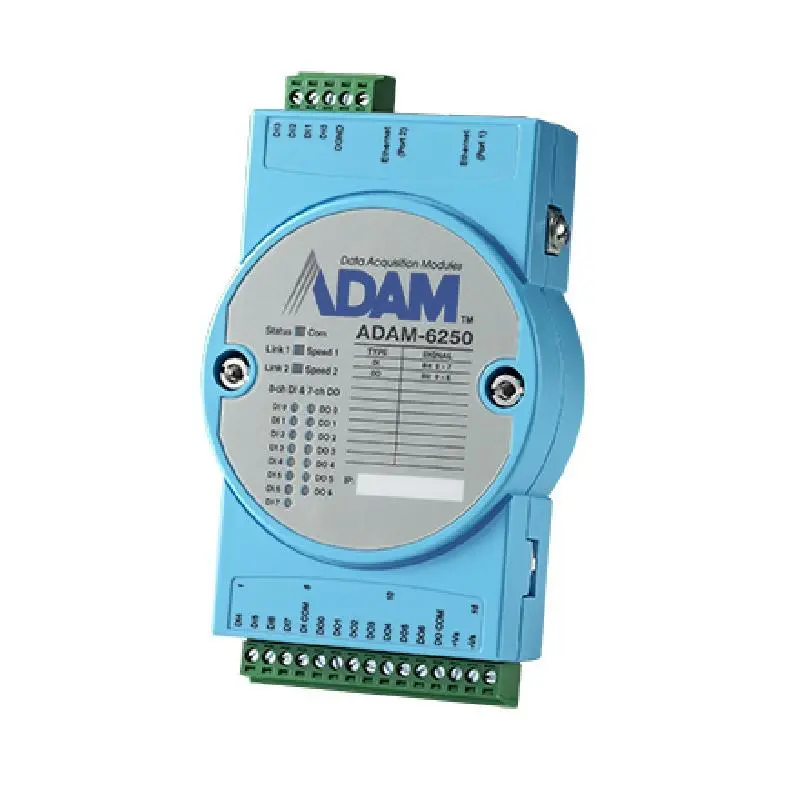

Advantech ADAM-6250 8DI/7DO IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

8ch digital input(counter)/7ch digital output(pulse output)

Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII

GCL to perform basic logic control rules

Cloud access: Data update to Azure

Auto-bypass function to ensure daisy-chain data transmission

Peer-to-Peer function to map I/O status

Built-in web server

Watchdog timer to recover the system

		ADAM-6250-B
Communications	Interface	Ethernet
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
General	Connectors	2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
General	Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Isolated Digital Input	Channels	8
Isolated Digital Input	Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: openWet Contact Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC
Isolated Digital Output	Channels	7
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	10~30 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
Counter/Encoder Input	Max. Input Frequency	3 kHz
Counter/Encoder Input	Channels	8
