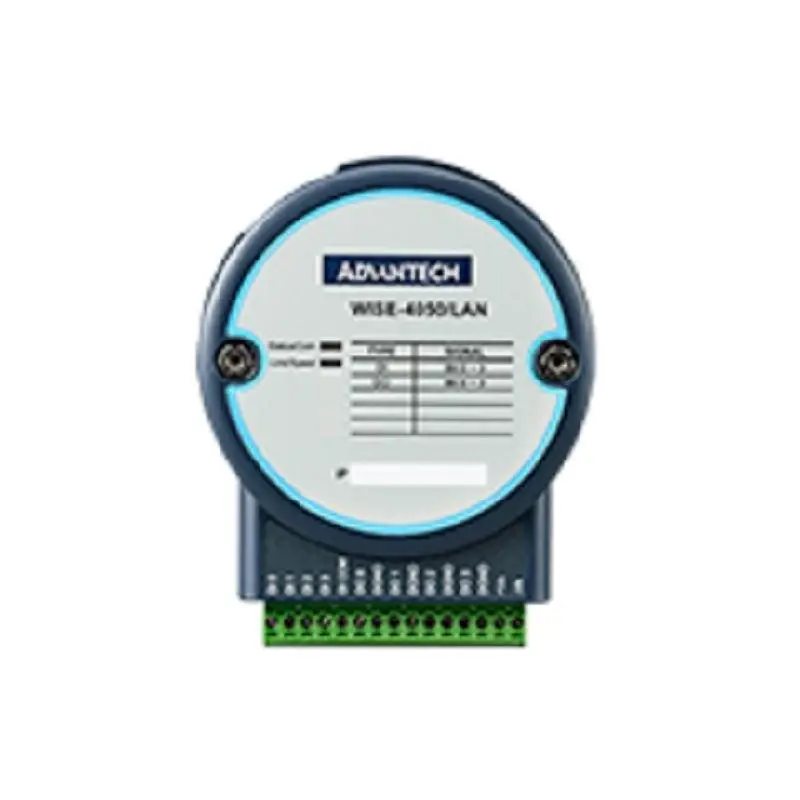

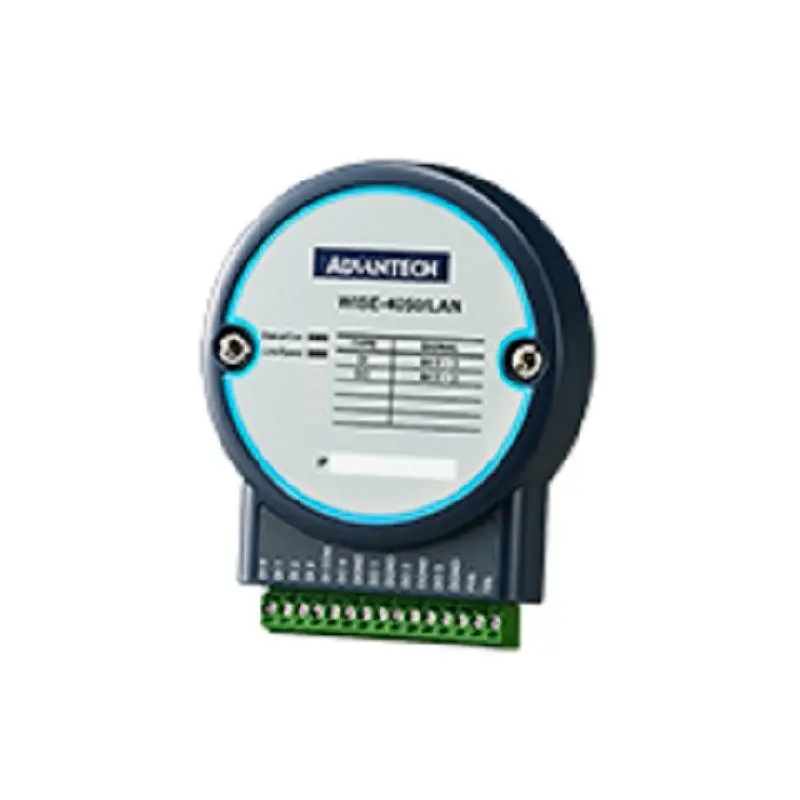

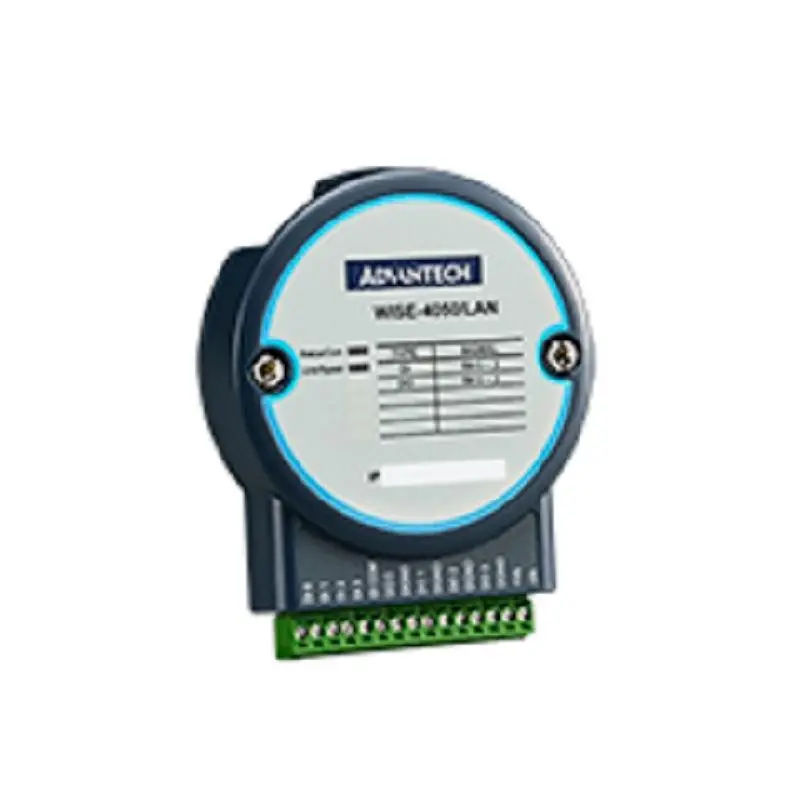

Advantech WISE-4050LAN 4DI/4DO Modbus Ethernet I/O

    Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT

    Supports RESTful web API in JSON format

    Supports local logging with RTC time stamp

    Supports mobile device web configuration in HTML5

    Supports 10~30VDC power with reverse protection

WISE-4050LAN-B
Communications Interface Ethernet
Environment Operating Temperature -40~70 °C (-40~158 °F)
Environment Storage Humidity 0~95% RH (non-condensing)
Environment Storage Temperature -40~85 °C (-40~185 °F)
General Connectors 1 x RJ45, 1 x 15-pin plug-in screw terminal
General Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Isolated Digital Input Channels 4
Isolated Digital Input Input Voltage Dry Contact Logic level 1: close to DI COM Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Input Isolation Protection 3000 Vrms
Isolated Digital Output Channels 4
Isolated Digital Output Isolation Protection 3000 Vrms
Isolated Digital Output Output Type Sink
Isolated Digital Output Output Voltage 0~30 VDC
Isolated Digital Output Sink Current 500 mA max./channel
Power Requirements Input Voltage 10~30 VDC
