| WISE-4060LAN-B | ||
| Communications | Interface | Ethernet |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 0~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| General | Connectors | 1 x RJ45, 1 x 15-pin plug-in screw terminal |
| General | Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP |
| Isolated Digital Input | Channels | 4 |
| Isolated Digital Input | Input Voltage | Dry Contact Logic level 1: close to DI COM Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC |
| Isolated Digital Input | Isolation Protection | 3000 Vrms |
| Power Requirements | Input Voltage | 10~30 VDC |
| Relay Output | Channels | 4 |
| Relay Output | Contact Rating (Resistive) | 3 A @ 30 VDC, 5 A @ 250 VAC |
| Relay Output | Relay Type | 1 x Form A |

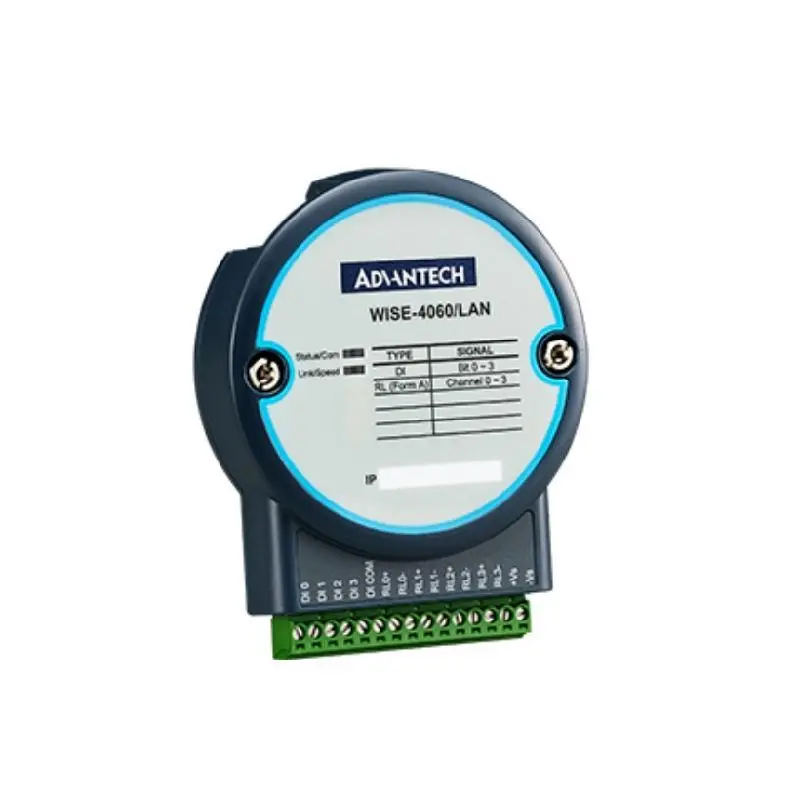

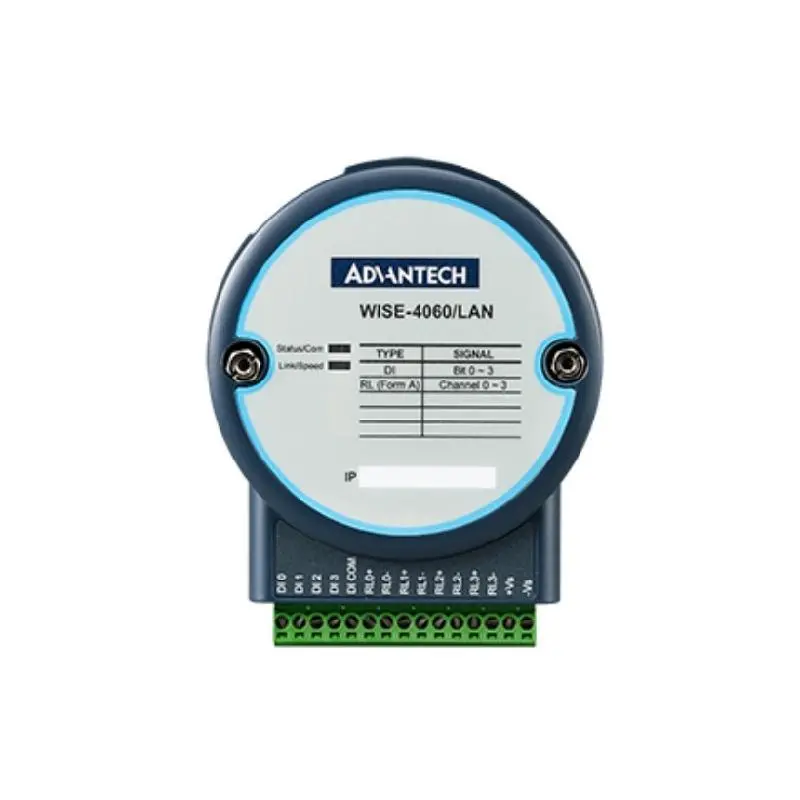

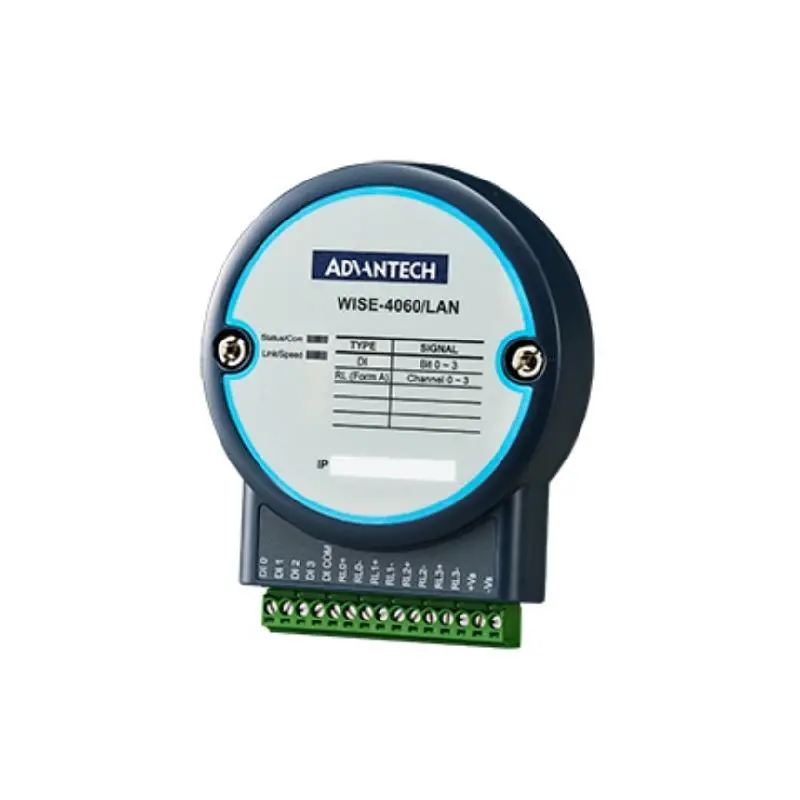

Advantech WISE-4060LAN 4DI/4Relay Modbus Ethernet I/O
