| WISE-4010LAN-B | ||
| Analog Input | Channels | 4 |
| Analog Input | Input Range | 0~20 mA, 4~20 mA |
| Analog Input | lnput Type | mA |
| Analog Input | Resolution(Bits) | 12-bit |
| Analog Input | Sampling Rates(S/s) | 10/100 S/s (per channel) |
| Communications | Interface | Ethernet |
| Digital Output | Channels | 4 (TTL) |
| Digital Output | Voltage Rating | 0~30 VDC |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 0~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| General | Connectors | 1 x RJ45, 1 x 15-pin plug-in screw terminal |
| General | Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP |
| Power Requirements | Input Voltage | 10~30 VDC |

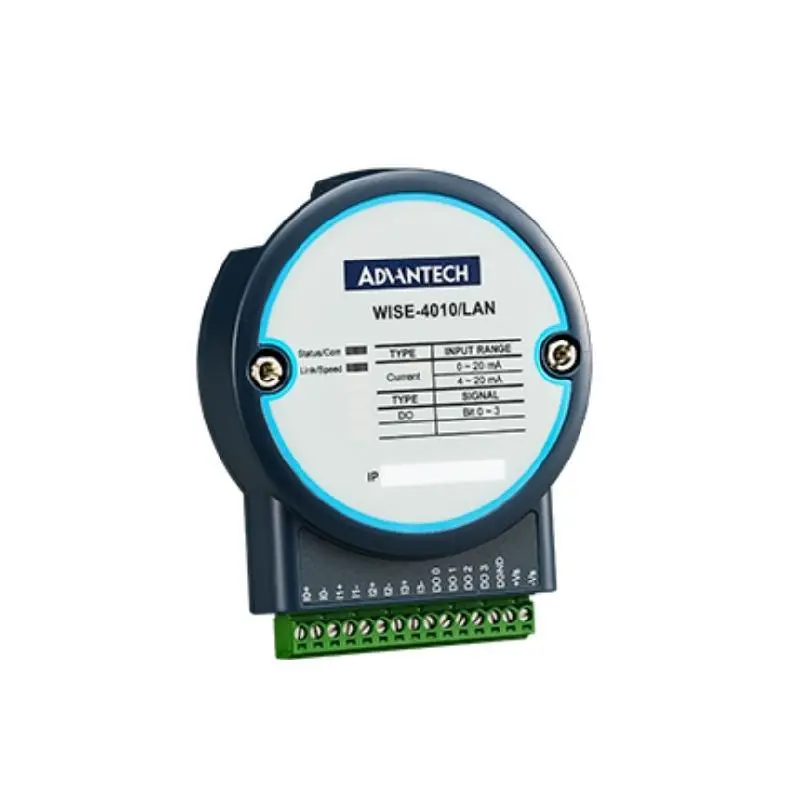

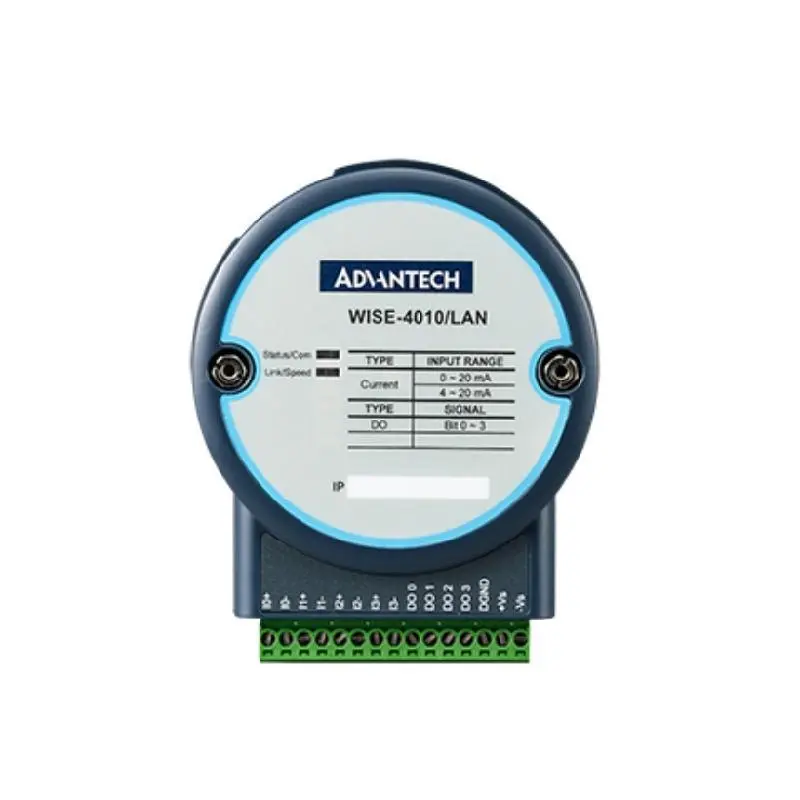

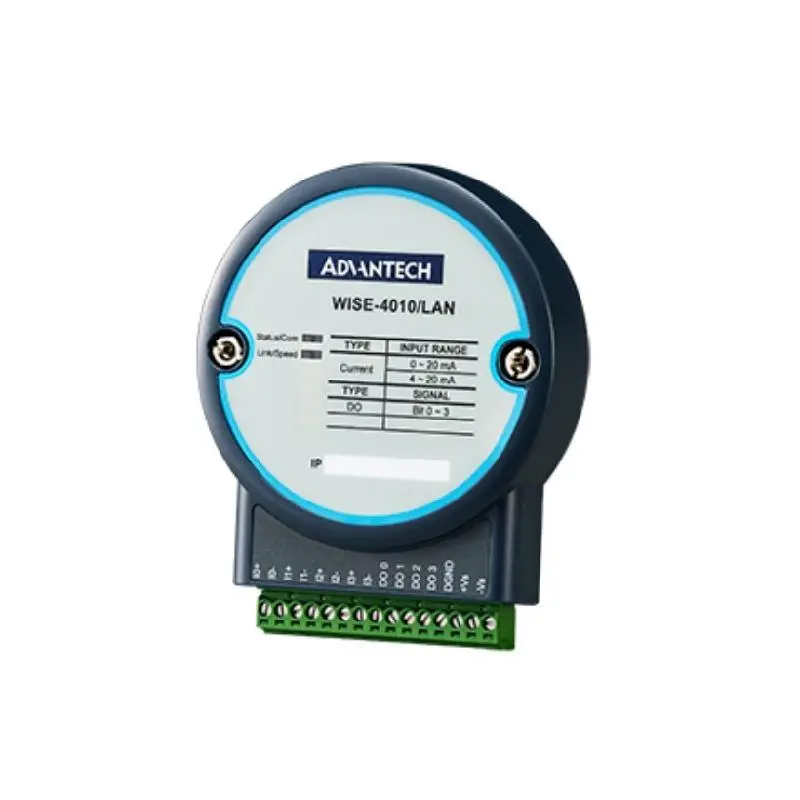

Advantech WISE-4010LAN 4AI/4DO Modbus Ethernet I/O
