| ADAM-4017+-F | ||
| Analog Input | Channels | 8 |
| Analog Input | Input Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA |
| Analog Input | lnput Type | V, mV, mA |
| Analog Input | Resolution(Bits) | 16-bit |
| Analog Input | Sampling Rates(S/s) | 10 S/s (sum) |
| Communications | Interface | RS-485 |
| Environment | Isolation Voltage | 3,000 VDC |
| Environment | Operating Temperature | -10~70 °C (14~158 °F) |
| General | Connectors | 2 x 10-pin plug-in screw terminal |
| General | Protocol | ASCII command, Modbus/RTU |
| Power Requirements | Input Voltage | 10~30 VDC |

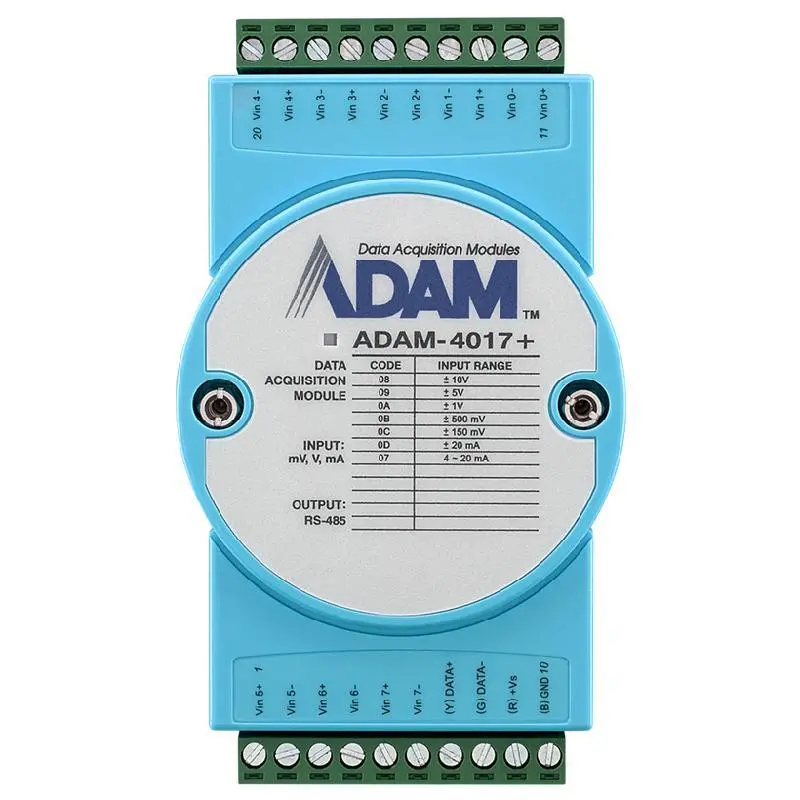

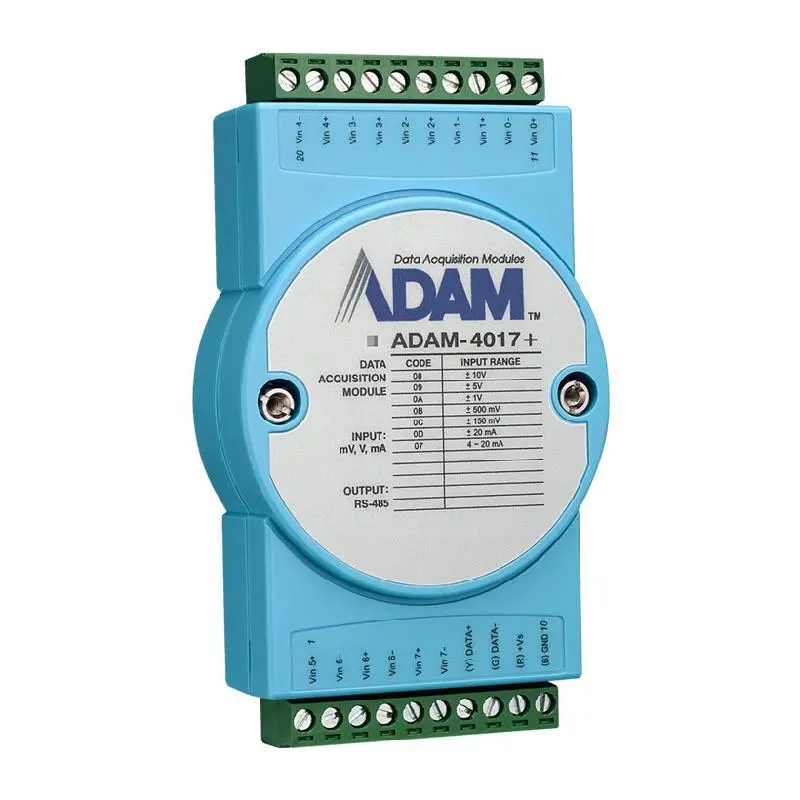

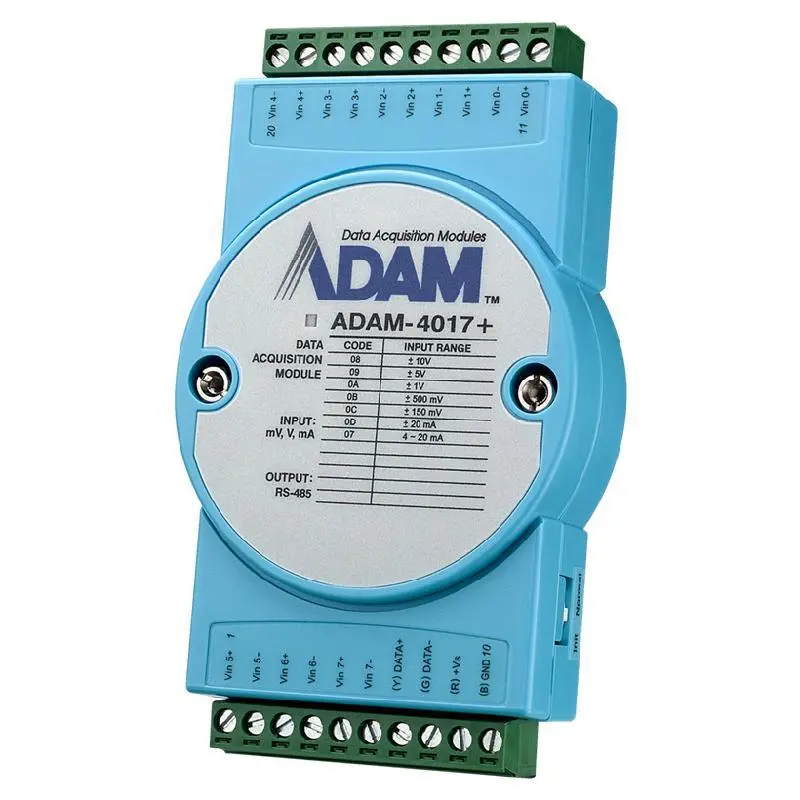

Advantech ADAM-4017+ 8AI Modbus RS-485 Remote I/O
