| ADAM-4118-C | ||
| Analog Input | Burn-out Detection | Yes |
| Communications | Interface | RS-485, Micro USB |
| Environment | Isolation Voltage | 3,000 VDC |
| Environment | Operating Temperature | -40~85 °C (-40~185 °F) |
| General | Connectors | 2 x 10-pin plug-in screw terminal |
| General | Protocol | ASCII command, Modbus/RTU |
| Power Requirements | Input Voltage | 10~48 VDC |
| Thermocouple Input | Channels | 8 |
| Thermocouple Input | Input Type | mA, mV, V, T/C: J, K, T, E, R, S, B, N type |
| Thermocouple Input | Resolution | 16-bit |
| Thermocouple Input | Sample Range | 100 S/s (sum) |
| Thermocouple Input | Temperature Range | Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C) |
| Analog Input | Input Range | ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, 0~15 mV, 0~50 mV, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V |
| Hardware | Certification | CE, FCC |

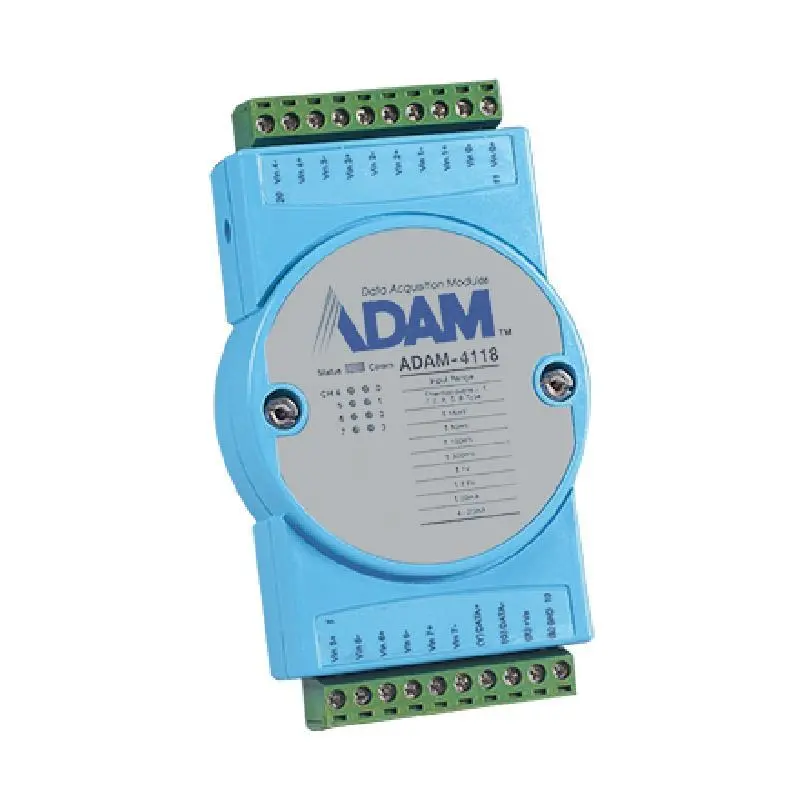

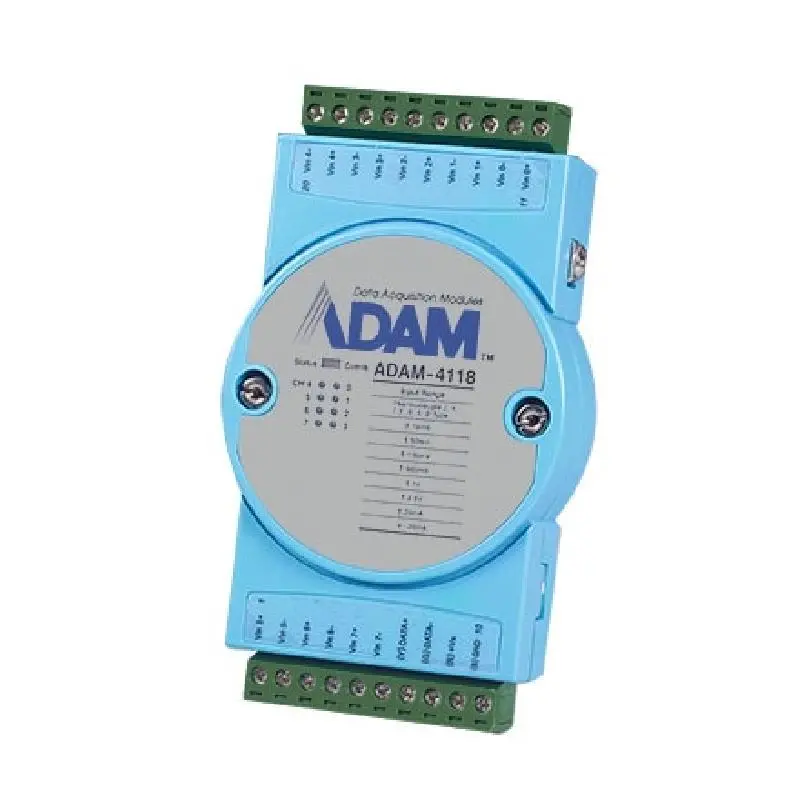

Advantech ADAM-4118 8Thermocouple Robust Modbus RS-485 Remote I/O
