| ADAM-4053-F | ||
| Communications | Interface | RS-485 |
| Digital Input | Channels | 16 |
| Digital Input | Input Voltage | Dry contactLogic level 0: close to GND Logic level 1: open Wet contactLogic level 0: 2 VDC max. Logic level 1: 4~30 VDC |
| Environment | Operating Temperature | -10~70 °C (14~158 °F) |
| General | Connectors | 2 x 10-pin plug-in screw terminal |
| General | Protocol | ASCII command, Modbus/RTU |
| Power Requirements | Input Voltage | 10~30 VDC |
| Hardware | Certification | CE, FCC |

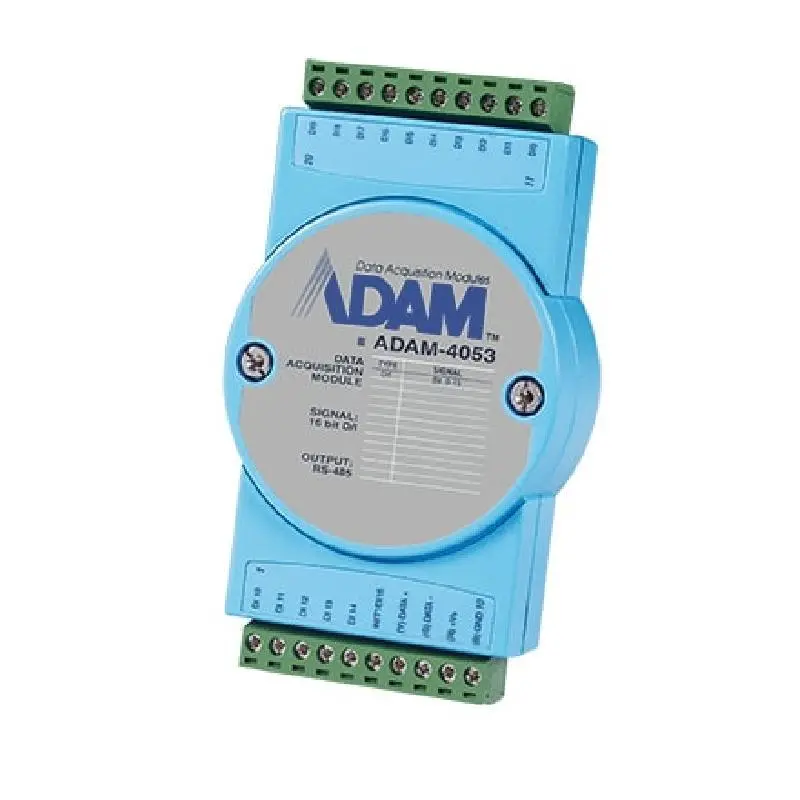

Advantech ADAM-4053 16DI RS-485 Remote I/O
