| ADAM-4055-C | ||
| Communications | Interface | RS-485 |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -10~70 °C (14~158 °F) |
| General | Connectors | 2 x 13-pin plug-in screw terminal |
| General | Protocol | ASCII command, Modbus/RTU |
| Isolated Digital Input | Channels | 8 |
| Isolated Digital Input | Input Voltage | Dry Contact Logic level 1: close to DGND Logic level 0: openWet Contact Logic level 1: 10~50 VDC Logic level 0: 0~3 VDC |
| Isolated Digital Output | Channels | 8 |
| Isolated Digital Output | Output Type | Sink |
| Isolated Digital Output | Output Voltage | 0~40 VDC |
| Isolated Digital Output | Sink Current | 200 mA max./channel |
| Power Requirements | Input Voltage | 10~30 VDC |
| Hardware | Certification | CE, FCC |

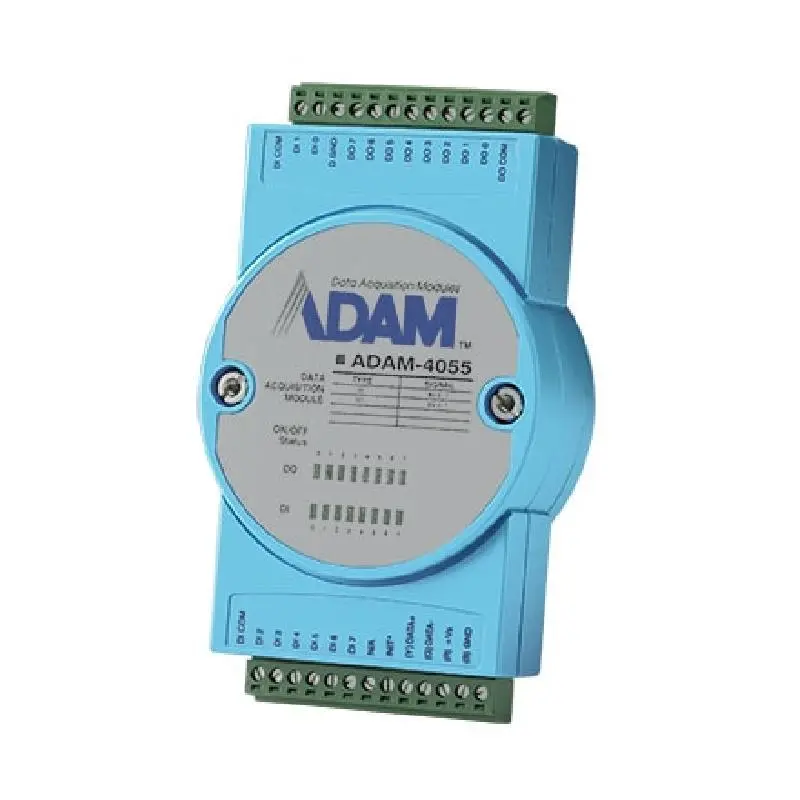

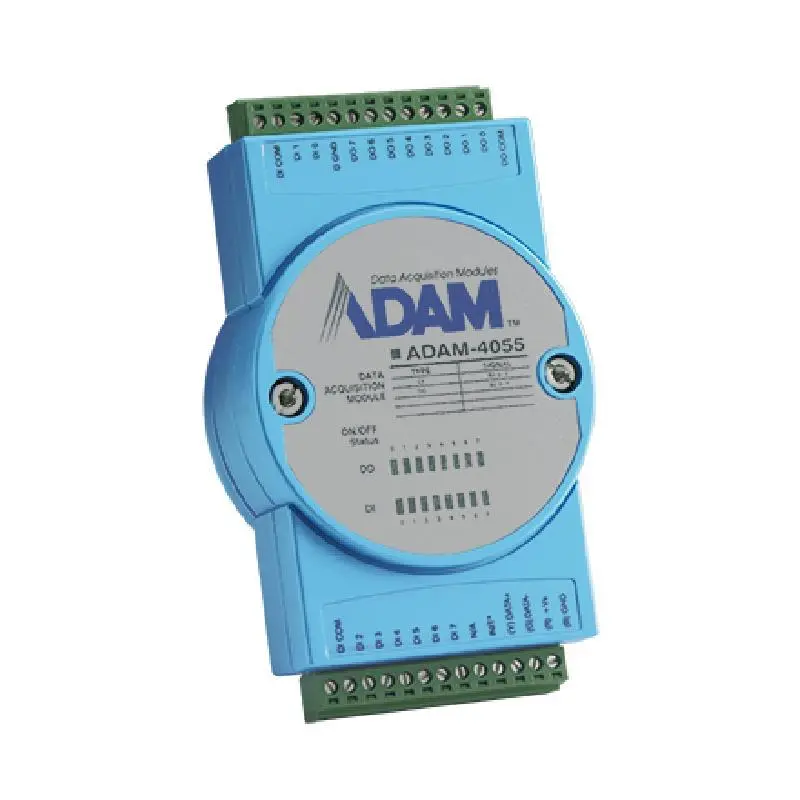

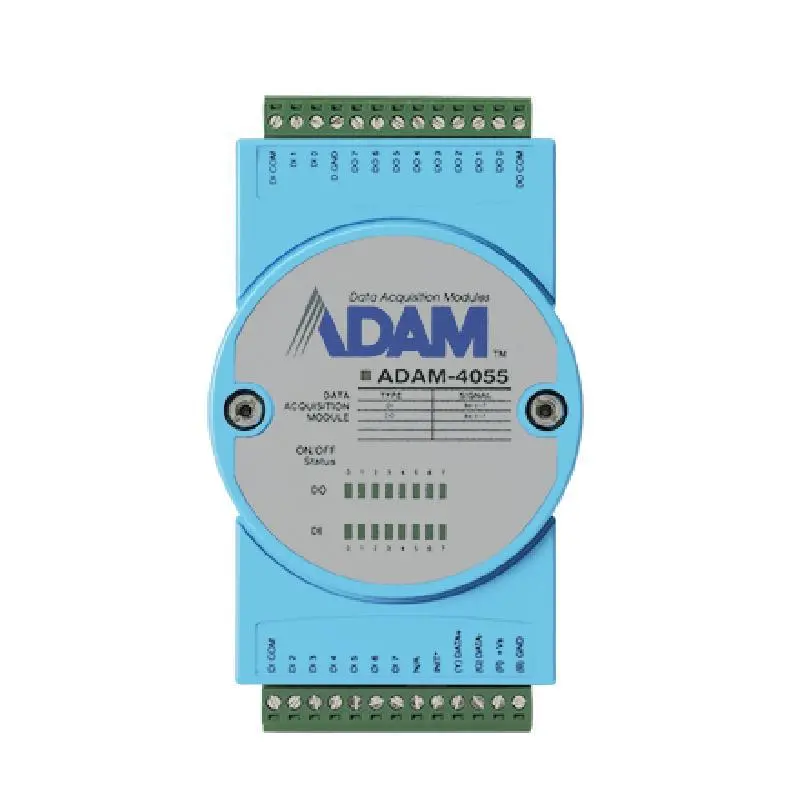

Advantech ADAM-4055 8DI/8DO Modbus RS-485 Remote I/O
