| ADAM-4150-C | ||
| Communications | Interface | RS-485, Micro USB |
| Counter/Encoder Input | Channels | 7 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Counter/Encoder Input | Max. Input Frequency | 3 kHz |
| Environment | Isolation Voltage | 3,000 VDC |
| Environment | Operating Temperature | -40~85 °C (-40~185 °F) |
| General | Connectors | 2 x 10-pin plug-in screw terminal |
| General | Protocol | ASCII command, Modbus/RTU |
| Isolated Digital Input | Channels | 7 |
| Isolated Digital Input | Input Voltage | Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC |
| Isolated Digital Output | Channels | 8 |
| Isolated Digital Output | Output Type | Sink |
| Isolated Digital Output | Output Voltage | 0~40 VDC |
| Isolated Digital Output | Sink Current | 800 mA max./channel |
| Power Requirements | Input Voltage | 10~48 VDC |
| Hardware | Certification | CE, FCC |

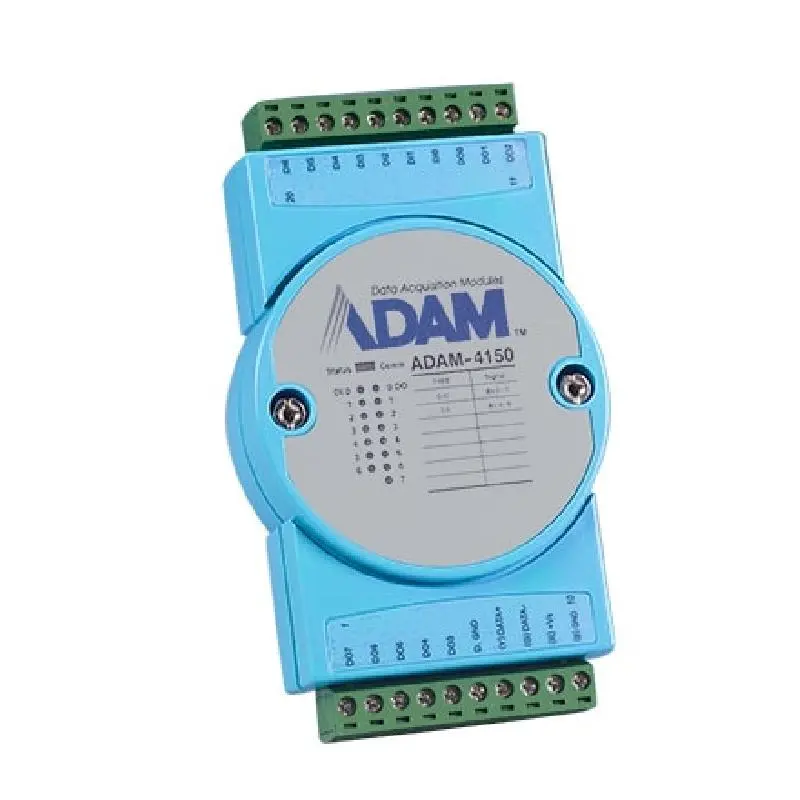

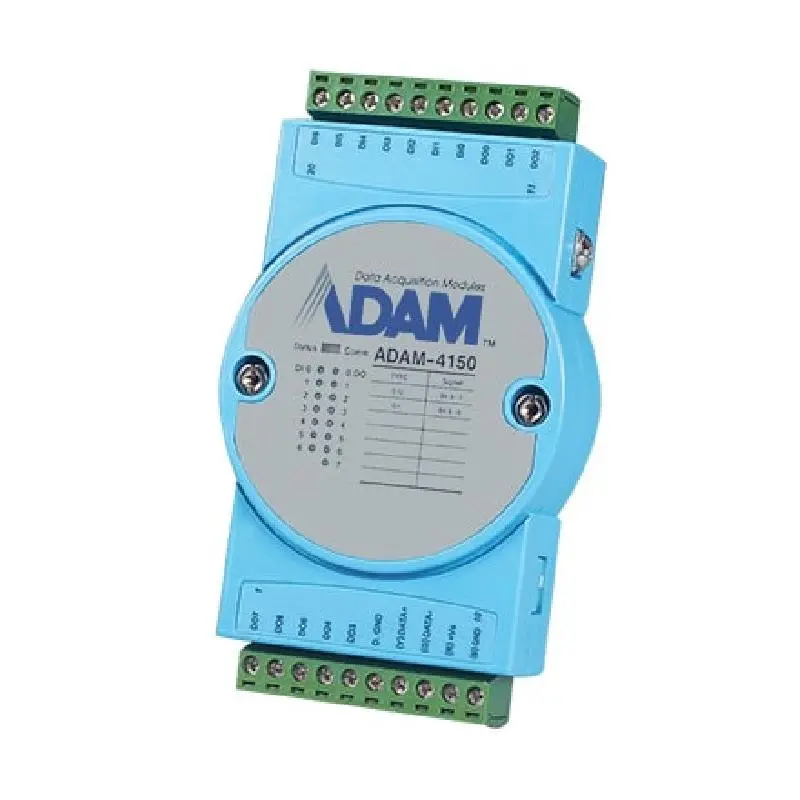

Advantech ADAM-4150 7DI/8DO Robust Modbus RS-485 Remote I/O
