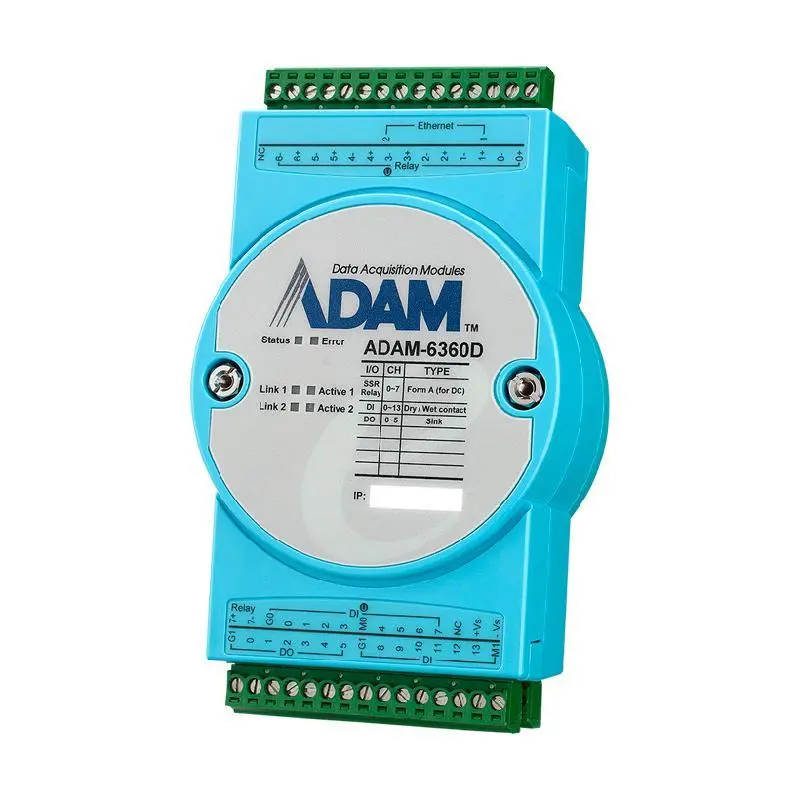

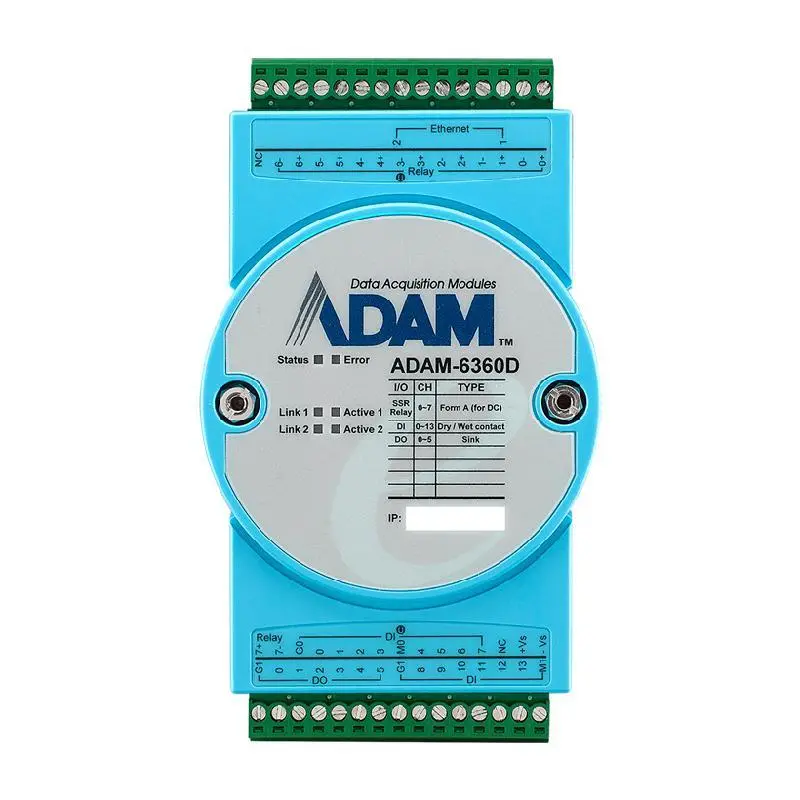

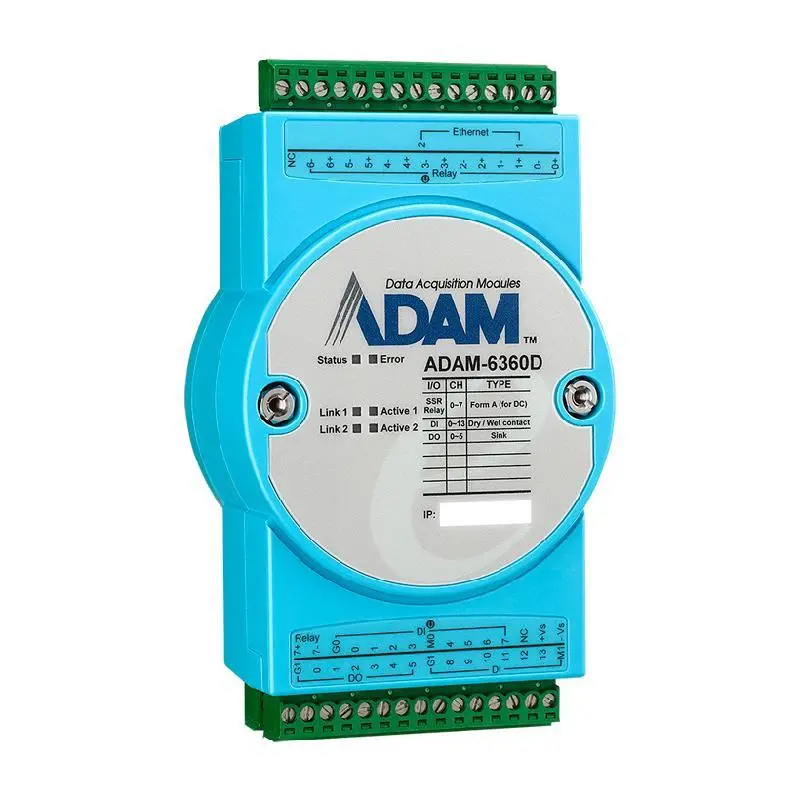

Advantech ADAM-6360D 8Relay(PhotoMOS)/14DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O

OPC UA empowers Modbus I/O users to access the industrial IoT world

OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence

Hardware and software double security levels to prevent being hacked

Cost-effective: high I/O density and daisy-chaining solution saves cost

		ADAM-6360D-A1
Relay Output	Channels	8 PhotoMOS SPST Form A
Relay Output	Contact Rating (Resistive and Inductive Load)	1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC
Isolated Digital Input	Channels	14
Isolated Digital Input	Input Voltage	Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolated Digital Input	Isolation Protection	2,500 VDC
Isolated Digital Output	Channels	6
Isolated Digital Output	Isolation Protection	2,500 VDC
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Sink Current	100 mA max./channel
Counter/Encoder Input	Max. Input Frequency	3 kHz
Counter/Encoder Input	Channels	6
