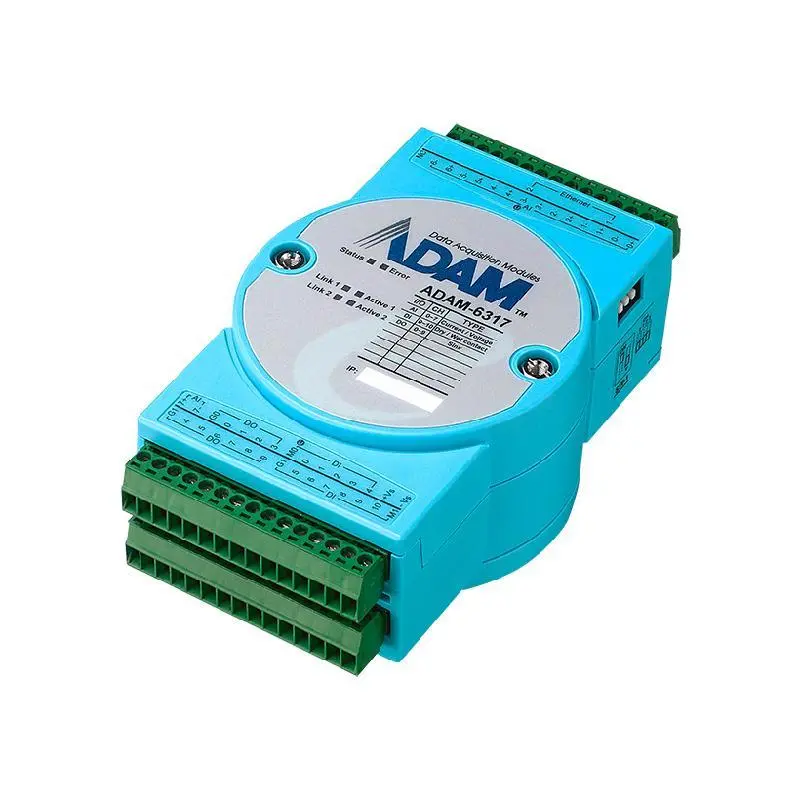

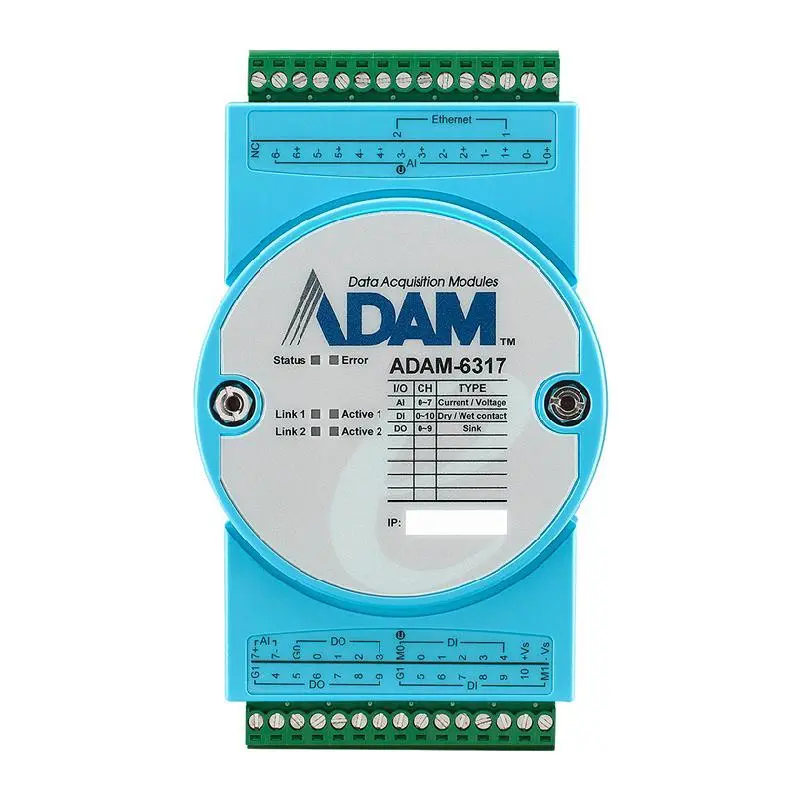

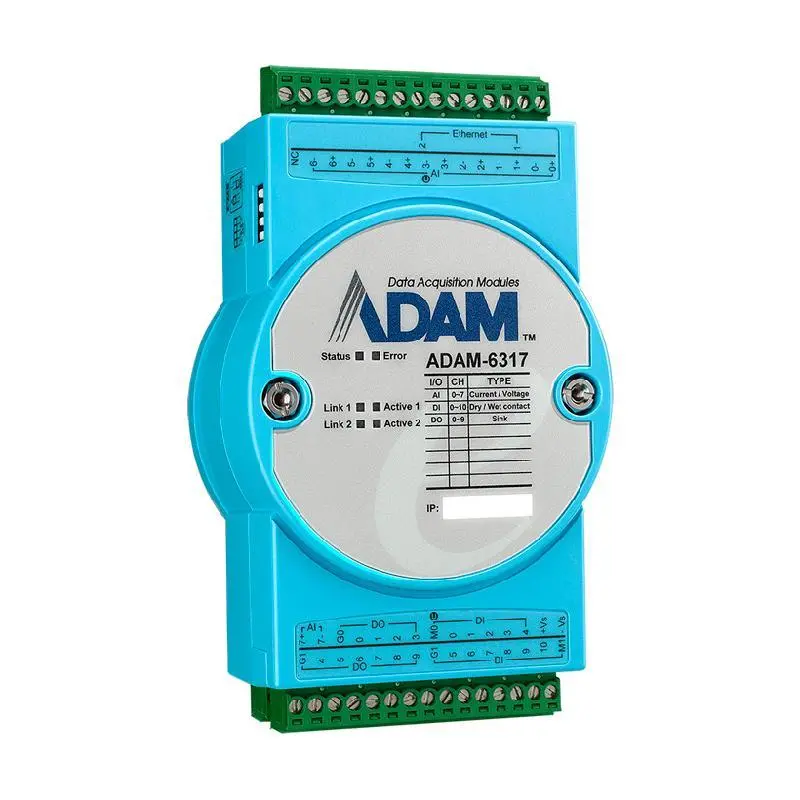

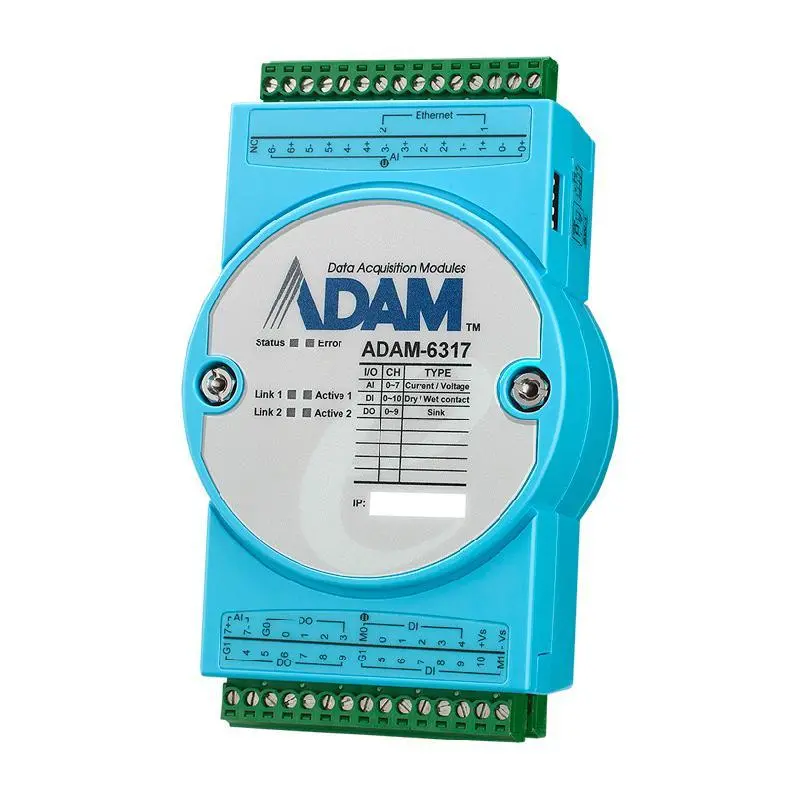

Advantech ADAM-6317 8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O

OPC UA empowers Modbus I/O users to access the industrial IoT world

OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence

Hardware and software double security levels to prevent being hacked

Cost-effective: high I/O density and daisy-chaining solution saves cost

		ADAM-6317-A1
Isolated Digital Input	Channels	11
Isolated Digital Input	Input Voltage	Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolated Digital Input	Isolation Protection	2,500 VDC
Isolated Digital Output	Channels	10
Isolated Digital Output	Isolation Protection	2,500 VDC
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Sink Current	100 mA max./channel
Counter/Encoder Input	Max. Input Frequency	3 kHz
Counter/Encoder Input	Channels	6
