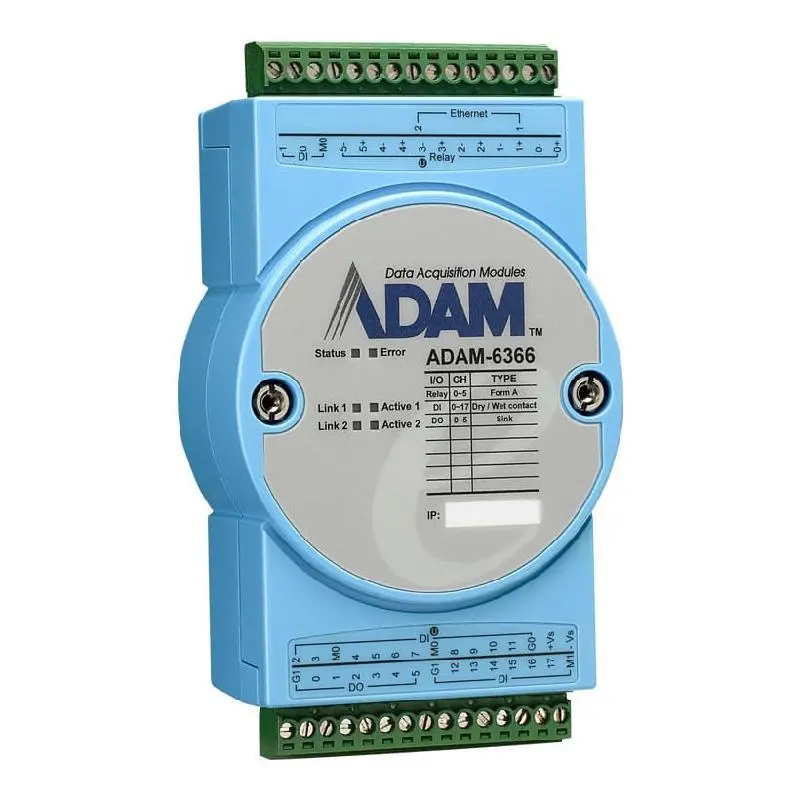

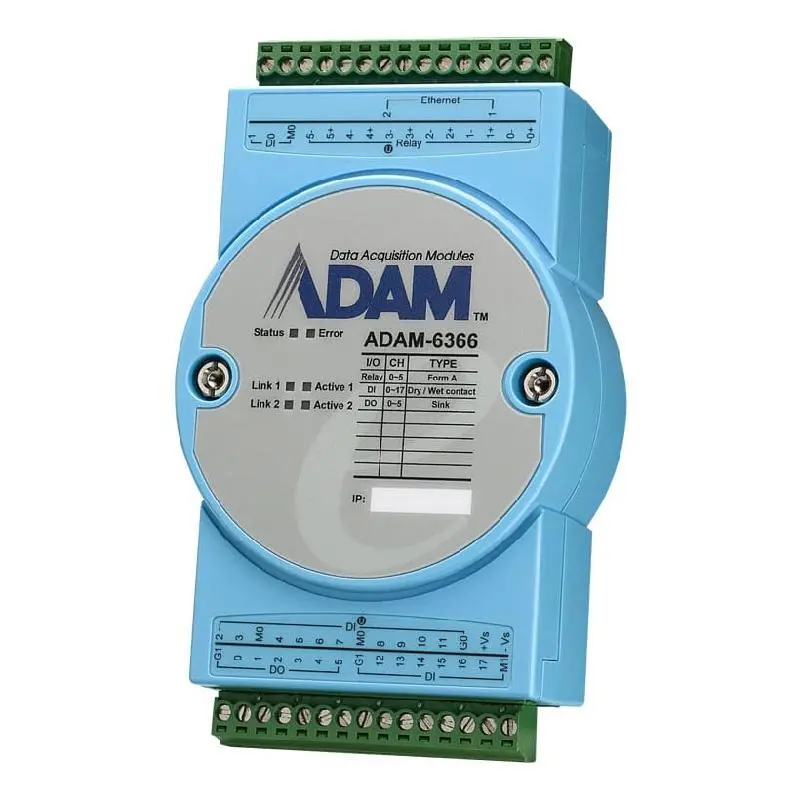

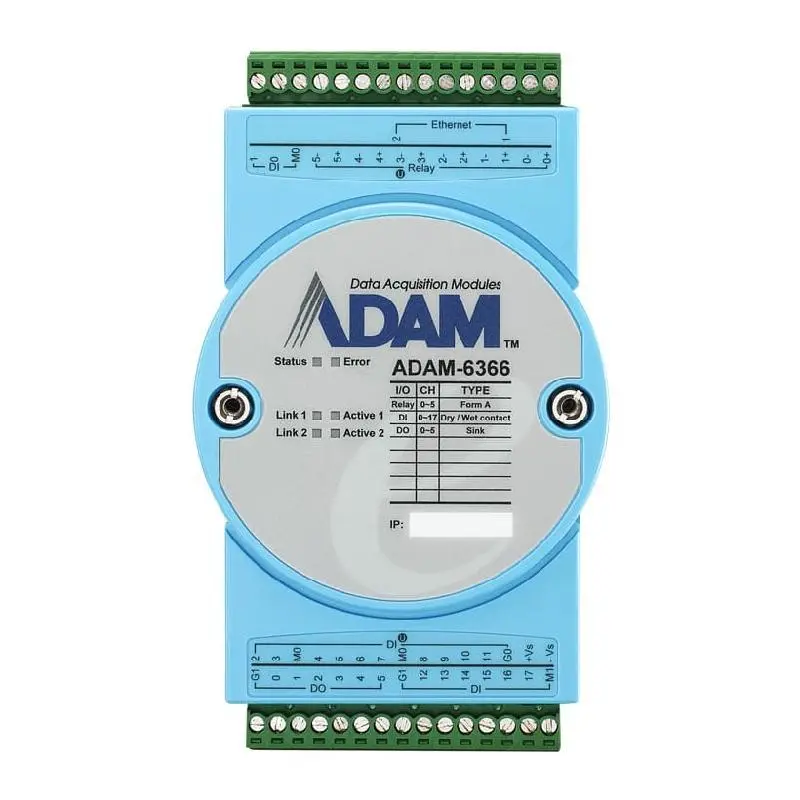

Advantech ADAM-6366 6 Relay/18DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O

    OPC UA empowers Modbus I/O users to access the industrial IoT world

    OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence

    Hardware and software double security levels to prevent being hacked

    Cost-effective: high I/O density and daisy-chaining solution save cost

ADAM-6366-A1
Relay Output Channels 6 Form A
Environment Operating Temperature -25~70 °C (-13~158 °F)
Isolated Digital Input Channels 18
Isolated Digital Input Input Voltage Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolated Digital Input Isolation Protection 2,500 VDC
Isolated Digital Output Channels 6
Isolated Digital Output Isolation Protection 2,500 VDC
Isolated Digital Output Output Type Sink
Isolated Digital Output Sink Current 100 mA max./channel
Relay Output Contact Rating (Resistive) 2 A @ 30 VDC, 0.25 A @ 250 VAC
Communications Interface Ethernet
Hardware Power Input 10~30 VDC
Environment Storage Temperature -25~85 °C (-13~185 °F)
General Protocol OPC UA Server
Counter/Encoder Input Max. Input Frequency 3 kHz
Counter/Encoder Input Channels 6
