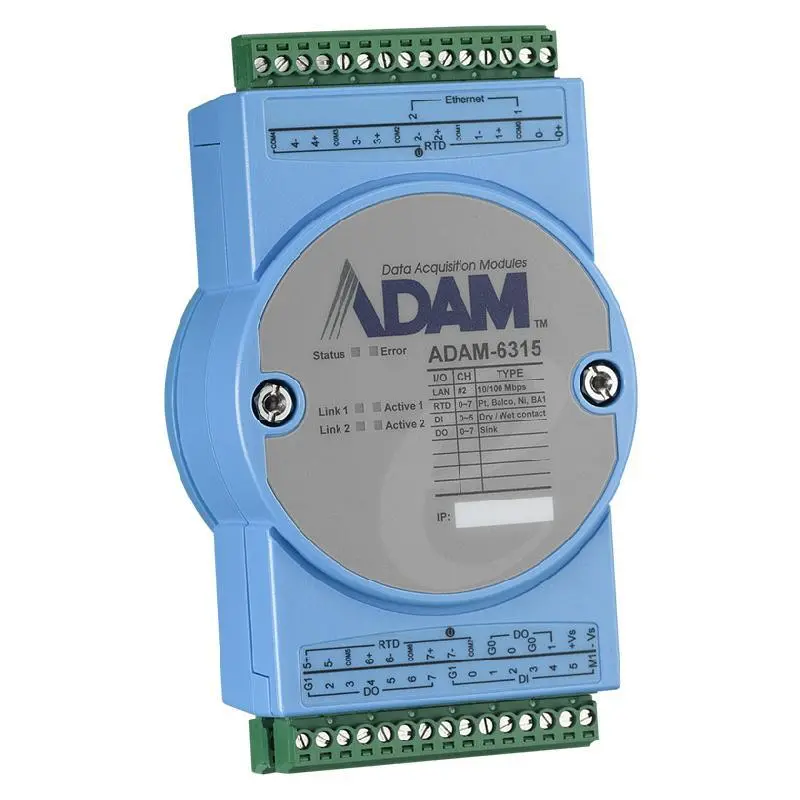

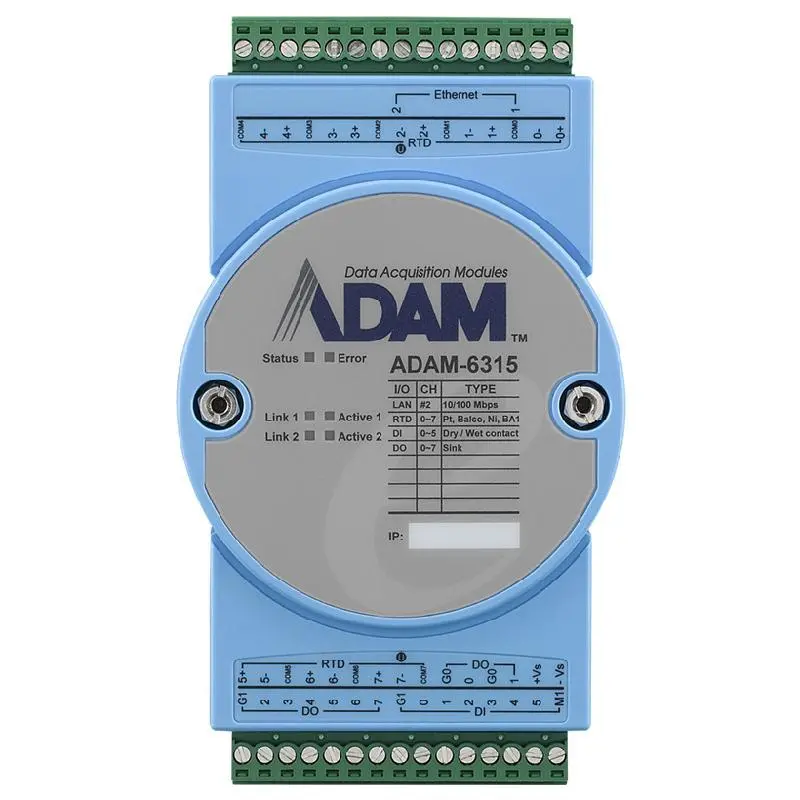

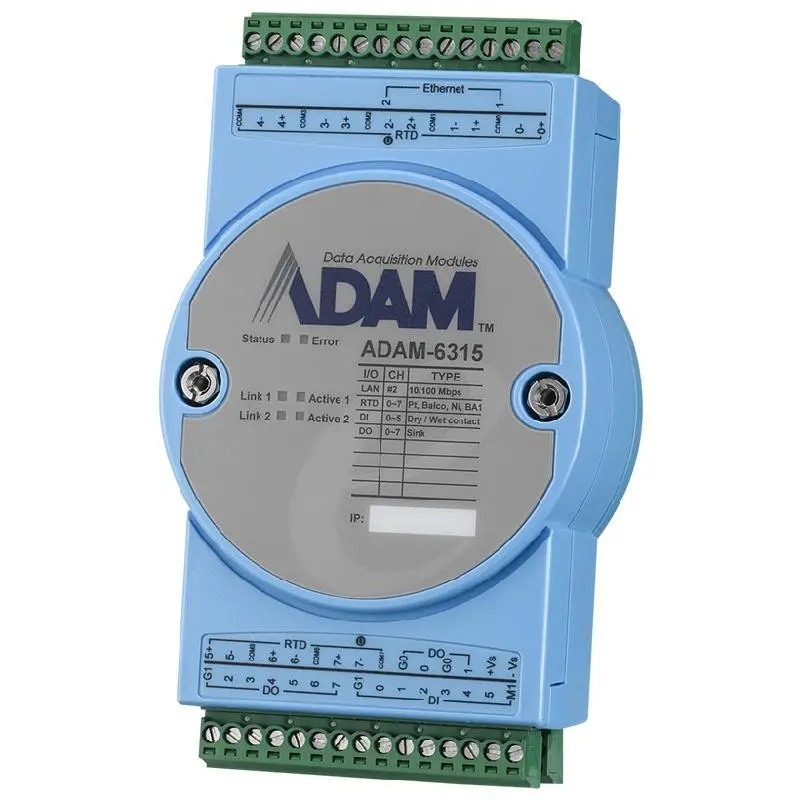

Advantech ADAM-6315 8 RTD/6DI/8DO IoT Modbus/OPC UA Ethernet Remote I/O

OPC UA empowers Modbus I/O users to access the industrial IoT world

OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence

Hardware and software double security levels to prevent being hacked

Cost-effective: high I/O density and daisy-chaining solution saves cost

		ADAM-6315-A1
Isolated Digital Input	Channels	6
Isolated Digital Input	Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Input	Isolation Protection	2,500 VDC
Isolated Digital Output	Channels	8
Isolated Digital Output	Isolation Protection	2,500 VDC
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Sink Current	100 mA max./channel
Counter/Encoder Input	Max. Input Frequency	3 kHz
Counter/Encoder Input	Channels	6
RTD Input	Channels	8
RTD Input	Resolution	16-bit
RTD Input	Sample Range	1K S/s (sum)
Power Supply	Input Voltage	10~30 VDC
RTD Input	Input Type	Pt 100, Pt 1000, Balco 500, Ni 508, Ni 518
