| ESRP-CMS-U238V2 | ||
| Environment | Ingress Protection | IP20 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC, CCC, BSMI |
| Hardware | CPU | Intel® Core™ i3-1215UE 1.2GHz Alder Lake 6-Core |
| Hardware | Graphics Engine | Intel® Iris Xe® Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | 2 x SO-DIMM Slot with DDR5 4800MHz |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Hardware | Power Input | 12~24 VDC |
| Hardware | Storage | 1 x SATA M.2 SSD slot (2280 M-Key) |
| Hardware | LED Indicators | PWR |
| Hardware | Watchdog Timer | 1~255 s |
| I/O Interface | Displays | 1 x HDMI, 1 x DP |
| I/O Interface | Expansion | 1 x M.2 B key, 1 x M.2 E key |
| Hardware | I/O | 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO |
| I/O Interface | LAN Ports | 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps |
| I/O Interface | Power Connector | 1 x 10-Pin Terminal Block |
| I/O Interface | Serial Ports | 2 x RS 232/422/485 |
| Mechanical | Dimension (W x H x D) | 150 x 107 x 60 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.8 kg (3.96 lb) |
| Mechanical | Mounting | Stand, Din-rail |
| Hardware | BIOS | ThinManager BIOS |

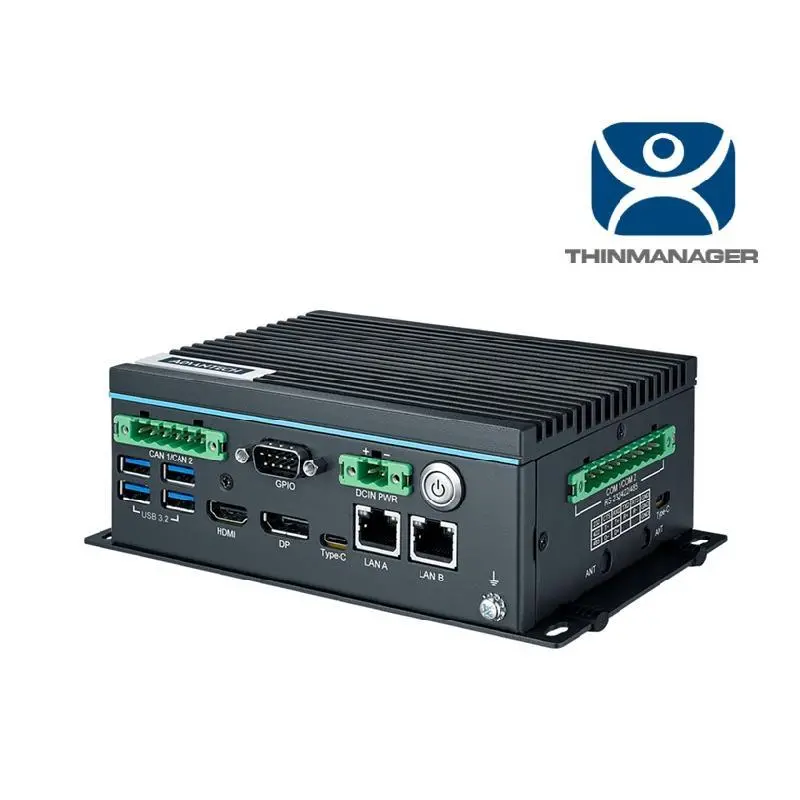

Advantech ESRP-CMS-U238V2 Multi-display ThinManager Ready Thin Client
