| ESRP-CMS-U2271V2 | ||
| Environment | Ingress Protection | IP30 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC, UL, CCC, BSMI |
| Hardware | CPU | Intel® Celeron® N6210 1.2GHz Dual-Core |
| Hardware | Graphics Engine | Intel® UHD Graphic 620 |
| Hardware | Memory | 1 x DDR4 with 4 GB, 1 x DDR4 with 8 GB |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Hardware | Power Input | 10~30 VDC |
| Hardware | Storage | 32 GB eMMC, 1 x mSATA (shared with mPCIe) |
| I/O Interface | Displays | 1 x HDMI |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | USB Ports | 2 x USB 3.2 |
| Mechanical | Dimension (W x H x D) | 100 x 70 x 30 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 0.5 kg (1.1 lb) |
| Hardware | BIOS | ThinManager BIOS |

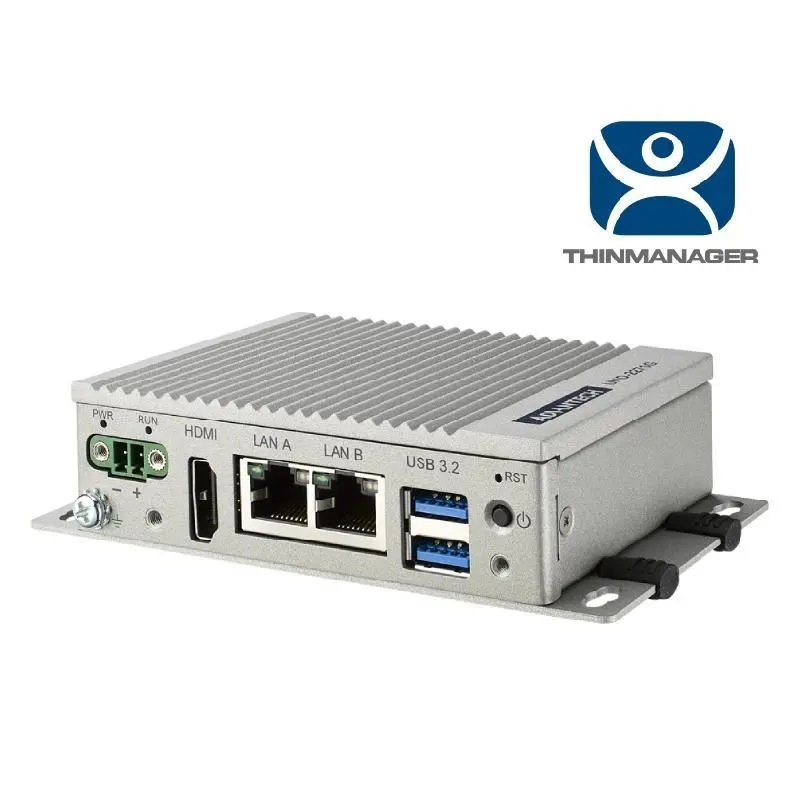

Advantech ESRP-CMS-U2271V2 ThinManager Ready Pocket-Size Edge IoT Thin Client with Intel® Celeron®N6210
